Guide element for compact mounting unit

• Информационные материалы

  Информационные материалы

  The guide element can be used as an addition to the compact mounting unit of the SIWAREX WL280 RN-S SA load cells. It is used if unwanted horizontal forces occur during the weighing process, e.g. caused by mixer operation in the case of container weighing or by acceleration of the goods to be weighed on conveyor belts.

  Дизайн

  The guide element consists of two ball-joints, a connecting piece and two flanges for mounting to the compact mounting unit.

  The ancillary guide element can also be retrofitted to compact mounting units, in case lateral forces arise unexpectedly when operating the scales and the compact mounting unit is mounted according to the requirements.

  The guide element conducts lateral forces of up to 1.7 kN into the foundation, thereby minimizing the influences on the load cells and mounted components.

  The load cell and the compact mounting unit are not included in the scope of delivery of the guide element.

  Чертеж

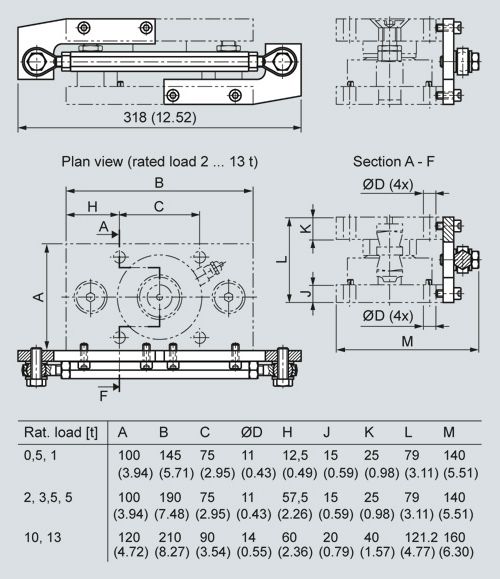

  Guide element for compact mounting unit of the SIWAREX WL280 RN-S SA load cells, dimensions in mm (inch)
