  SIPLUS CMS1200 SM 1281 shield clamp set



  Accessory CMS1200

  SIPLUS CMS1200 SM 1281 shield clamp set, 6AT8007‑1AA20-0AA0

  An additional shield clamp set must be ordered for the EMC-compliant connection of cables to the SIPLUS CMS1200 SM 1281 Condition Monitoring.

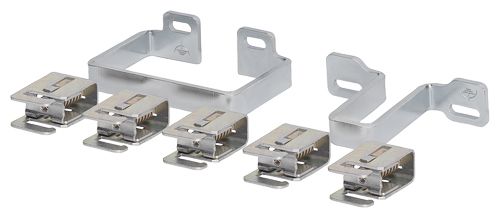

  The SM 1281 shield clamp set comprises two shield clamps and five terminal clamps. One shield clamp is screwed on above and one below the module. The sensor cable shields are connected to the shield clamps by means of the terminal clamps.

  VIB-SENSOR S01 vibration sensor



  VIB-SENSOR S01 vibration sensor

  VIB‑SENSOR S01, 6AT8002‑4AB00 vibration sensor

  The VIB‑SENSOR S01 vibration sensor with IEPE (integrated electronics piezoelectric) interface can be directly connected to the SIPLUS CM1200 SM1281 Condition Monitoring module.

  The sensor detects vibration accelerations in the frequency range from 0.5 Hz to 15 kHz with a resolution of 100 mv/g.

  A threaded screw with an M8 thread for mounting to the measuring point is included in the scope of supply. The connecting cable is connected to the vibration sensor via the MIL connector.

  SIPLUS CABLE-MIL connecting cable



  CABLE-MIL connecting cable

  SIPLUS CABLE-MIL connecting cables, 6AT8002‑4AC03, 6AT8002‑4AC10

  The VIB-SENSOR S01 vibration sensor is connected to the SIPLUS CMS1200 SM1281 module by means of the SIPLUS CABLE-MIL connecting cable.

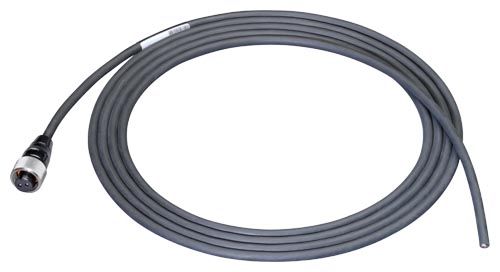

  This high-quality industrial cable is made of black polyurethane and is assembled on one end with a MIL connector (MIL‑C5015). The open cable end of the shielded two-wire cable is connected directly to the screw terminals of the basic unit.

  The connecting cable is available in lengths of 3 m and 10 m.

  Технические данные

  Order number		6AT8007-1AA20-0AA0
  		SM 1281 shield clamp set
  General information
  Product brand name		SIPLUS
  Product designation		CMS1200 SM 1281 accessory set
  Product description		For the EMC-compliant connection of cables to the SIPLUS CMS1200 SM 1281 Condition Monitoring Module
  Installation type/mounting
  Mounting type		wall mounting
  Connection method
  Number of signal cables connectable to the shield support		5




  Order number		6AT8002-4AB00
  		SIPLUS CMS2000 VIB-SENSOR S01
  General information
  Product brand name		SIPLUS CMS
  Product designation		VIB SENSOR S01
  Product description		Piezoelectric sensor for connection to the SIPLUS CMS2000 Basic Unit VIB or the SIPLUS CMS2000 VIB-MUX expansion module
  Physical measuring principle		Piezo-quartz recorder with integrated evaluation electronics
  Operating range of sensor at +/- 3 dB, min.		0.5 Hz
  Operating range of sensor at +/- 3 dB, max.		15 000 Hz
  Measurement range vibration acceleration, max.		50 gn
  Sensitivity, typ.		100 mV/gn
  Resolution of measured value of vibration acceleration, min.		0.002 gn
  Resonance frequency		23 kHz
  Installation type/mounting
  other mounting		incl. mounting bolts UNF1/4-28 on M8
  Input current
  Type of power supply		IEPE 2 to 10 mA
  Sensor input
  Encoder signals, IEPE
  ● Signal voltage (DC), min.		10 V
  ● Signal voltage (DC), max.		14 V
  Degree and class of protection
  IP degree of protection		IP65
  Ambient conditions
  Ambient temperature during operation
  ● Operating temperature range, min.		-50 °C
  ● Operating temperature range, max.		120 °C
  Cables
  Cable length, max.		80 m
  Connection method
  Type of connection		MIL-C5015
  Mechanics/material
  Material of housing		Stainless steel




  Дальнейшая информация

  For further product details, please refer to:

  • SIPLUS CMS1200 SM 1281 Installation Instructions shield clamp set https://support.industry.siemens.com/cs/ww/en/view/109481446
  • http://www.siemens.com/siplus-cms
