ANT 12 for RF250R, RF350R and RF350M

• Заказные данные
  (1)
• Информационные материалы

  Информационные материалы

  The ANT 12 antenna is a universal round antenna in M12 design for assembly lines with extremely small workpiece holders. Dimensions Ø x L (mm): M12 x 40

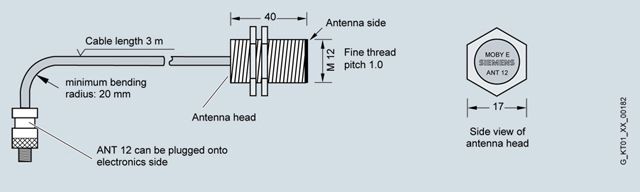

  Чертеж



  ANT 12 antenna

  Технические данные

  Order number		6GT2398-1CC00
  Product type designation		Antenna ANT 12
  Suitability for operation		RF250R / RF350R / RF310M / MOBY E
  Wireless frequencies
  Transmission frequency Rated value		13.56 MHz
  Electrical data
  Type of electrical connection of the antenna		M8, 4-pin
  Design of plug-in connection		male
  Mechanical data
  Material		Crastin
  Color		Pastel turquoise
  Tightening torque of the screw for securing the equipment maximum		3 N·m
  Mounting distance
  ● relating to metal surfaces recommended minimum		0 m
  Permitted ambient conditions
  Ambient temperature
  ● during operation		-25 ... +70 °C
  ● during storage		-40 ... +85 °C
  ● during transport		-40 ... +85 °C
  Protection class IP		IP67, front
  Shock resistance		according to EN 60721-3-7 Class 7M2
  Shock acceleration		500 m/s²
  Vibrational acceleration		200 m/s²
  Design, dimensions and weight
  Depth		40 mm
  Diameter		12 mm
  Net weight		145 g
  Mounting type		2 plastic csrew nuts M12 x 1.0
  Cable length of antenna cable		3 m
  Standards, specifications, approvals
  Certificate of suitability		CE, FCC, IC, cULus, Ex approval only together with 6GT2801-4AB10
