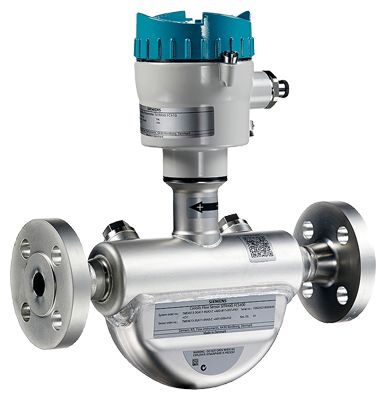

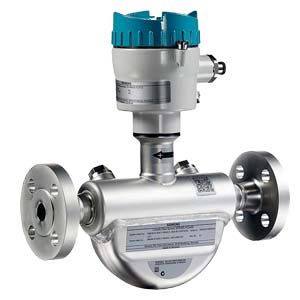

Flowmeter SITRANS FC410

• Заказные данные
  (3)
• Аксессуары
  (54)
• Информационные материалы

  Информационные материалы



  The compact flowmeter SITRANS FC410 can be ordered for industrial, hygienic or NAMUR service.

  Intended for integration into OEM skids, machines or pre-assembled plant systems, the flowmeter is based on the latest developments within digital signal processing technology - engineered for high measuring performance:

  • Fast response to rapid changes in flow
  • Fast dosing applications with control in host system
  • High immunity against process noise
  • High turndown ratio of flowrates
  • Suitable for liquid and gas service
  • Easy to install, commission and maintain

  With all global marine approvals the FC410 is ideal for integration in ship fuel efficiency and environmental measurement systems as well as bunkerings solutions.

  The FCT010 transmitter delivers true multi-parameter measurements i.e. massflow, density, temperature.

  FC410 is available with MODBUS RTU (RS 485) multi-drop serial communication.

  The flowmeter is supplied with SensorFlash, a micro SD card containing all relevant certificates.

  The SITRANS FC410 flowmeter system consists of a SITRANS FCS400 sensor and a SITRANS FCT010 transmitter always compact mounted.

  Особенности

  • It is compact and light, fitting neatly into dense piping arrangements
  • Effective separation of measurement from plant vibration
  • Reliable measurements due to high signal to noise ratio
  • Short overall length; easy drop-in replacement into most existing installations
  • Direct connection to host with high-speed Modbus simplifies machine or skid construction and set-up.
  • Modbus RS485 RTU allows simple and easy integration with all Modbus masters with fast update rate of process values.

  Технические данные

  Flowmeter SITRANS FC410
  Sizes	DN 15 (½") DN 25 (1") DN 50 (2") DN 80 (3")
  Accuracy	± 0.10 %
  Repeatability	± 0.05 %
  Flow range (water @ 1 bar pressure loss)	DN 15: 3 700 kg/h (8 157 lb/h) DN 25: 11 500 kg/h (25 353 lb/h) DN 50: 52 000 kg/h (114 640 lb/h) DN 80: 136 000 kg/h (300 000 lb/h)
  Power Supply	24 V DC ± 20 %; 110 mA
  Weight	4.6 ... 50 kg
  Materials
  Sensor
  Measuring tubes	316L stainless steel or Hastelloy C22
  Enclosure	304 stainless steel
  Transmitter	Aluminum with corrosion-resistant coating
  Enclosure rating (IP)	IP67
  Pressure ratings
  Measuring tubes
  316L	100 bar (1450 psi)
  Hastelloy C22	160 bar (2321 psi)
  Sensor enclosure	20 bar (DN15, DN25) 17 bar (DN50, DN80)
  Sensor enclosure burst pressure	> 160 bar (all sizes)
  Temperature ratings
  Process medium	-50 ... 200 °C (-58 ... +392 °F)
  Ambient	-40 ... 60 °C (-40 ... +140 °F)
  Process connections
  Flanges	EN 1092-1 B1, EN 1092-1 D, ANSI/ASME B16.5, JIS B 2220, DIN 11864-2
  Pipe threads	ASME B1.20 (NPT), ISO228-1 G (BSPP), VCO Quick-connect
  Hygienic threads	DIN 11851, DIN 11864-1A, ISO 2853, SMS 1145
  Hygienic clamps	DIN 11864-3A, DIN 32676, ISO 2852
  Approvals
  Hazardous area	ATEX, IECEx, EAC Ex, FM, NEPSI, CSA, INMETRO  (installed with flame-proof conduit)
  Pressure equipment	PED, CRN
  Hygienic	3A, EHEDG
  Marine	Germanischer Lloyd/det Norske Veritas, Bureau Veritas, Lloyds of London, American Bureau of Shipping
  NAMUR	NAMUR-compliant (e.g. NE 21, NE 41 and NE 132)
  Communication	Modbus RS485 RTU
  EMC performance
  Emission	EN 55011/CISPR-11 (Class B)
  Immunity	EN/IEC 61326-1 (Industry)
  Mechanical load	18 to 400 Hz random The flow meter will mechanically tolerate 3.17 g RMS in all directions. Flow accuracy cannot be guaranteed under all conditions.





  Дополнительно

  Accessories

  Description	Article No.
  Standard cable (non-Ex) with M12 plugs, PO insulation and PUR sleeve, gray, -40 … +80 °C (-40 … +176 °F)
  5 m (16.4 ft)	A5E03914805
  10 m (32.8 ft)	A5E03914850
  25 m (82 ft)	A5E03914853
  50 m (164 ft)	A5E03914859
  75 m (246 ft)	A5E03914861
  150 m (492 ft)	A5E03914874
  Standard cable (non-Ex) for termination, PO insulation and PUR sleeve, gray, -40 … +80 °C (-40 … +176 °F)
  5 m (16.4 ft)	A5E03914833
  10 m (32.8 ft)	A5E03914849
  25 m (82 ft)	A5E03914854
  50 m (164 ft)	A5E03914856
  75 m (246 ft)	A5E03914864
  150 m (492 ft)	A5E03914873
  Standard cable (Ex) with M12 plugs, PO insulation and PUR sleeve, blue, -40 … +80 °C (-40 … +176 °F)
  5 m (16.4 ft)	A5E03914929
  10 m (32.8 ft)	A5E03914962
  25 m (82 ft)	A5E03914995
  50 m (164 ft)	A5E03915004
  75 m (246 ft)	A5E03915074
  150 m (492 ft)	A5E03915088
  Standard cable (Ex) for termination, PO insulation and PUR sleeve, blue, -40 … +80 °C (-40 … +176 °F)
  5 m (16.4 ft)	A5E03914945
  10 m (32.8 ft)	A5E03914973
  25 m (82 ft)	A5E03914984
  50 m (164 ft)	A5E03915015
  75 m (246 ft)	A5E03915057
  150 m (492 ft)	A5E03915100
  Heating Jacket, indoor use, 200 °C (392 °F) max. temperature. Complete with 5 m (16.4 ft) high temperature cable fitted. Dedicated plug connection to controller
  DN 15 electric with 230 V AC controller	A5E03830623
  DN 25 electric with 230 V AC controller	A5E03830624
  DN 50 electric with 230 V AC controller	A5E03830625
  DN 80 electric with 230 V AC controller	A5E03830626
  DN 15 electric with 115 V AC controller	A5E32877520
  DN 25 electric with 115 V AC controller	A5E32877556
  DN 50 electric with 115 V AC controller	A5E32877557
  DN 80 electric with 115 V AC controller	A5E32877561





  Description	Dimension	Article No.
  Mating parts for hygienic fittings DIN 11851 Includes: 2 unions 2 mating parts (for welding in) 2 EPDM gaskets	DN 10	FDK:085U1016
  	DN 15	FDK:085U1017
  	DN 25	FDK:085U1019
  	DN 32	FDK:085U1020
  	DN 40	FDK:085U1021
  	DN 50	FDK:085U1022
  	DN 65	FDK:085U1023
  Mating parts for hygienic clamp ISO 2852 Includes: 2 clamps 2 mating parts 2 EPDM gaskets	25 mm	FDK:085U1029
  	40 mm	FDK:085U1031
  	50 mm	FDK:085U1032
  2 EPDM gaskets with collar for mounting set DIN 11851	DN 10	FDK:085U1006
  	DN 15	FDK:085U1007
  	DN 25	FDK:085U1009
  	DN 32	FDK:085U1010
  	DN 40	FDK:085U1011
  	DN 50	FDK:085U1012
  	DN 65	FDK:085U1013
