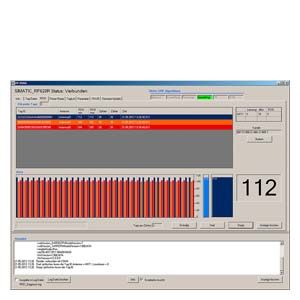

  SIMATIC RF-DIAG is a software product for fast and simple commissioning and diagnostics of RF620R and RF630R readers.

  The scope of delivery includes a PC adapter for RF-DIAG which permits connection of the SIMATIC RF620R and RF630R readers to a PC. If the adapter is used in the communication cable between reader and communication module, it does not influence the function of the read point. As soon as a PC is connected to the adapter using a USB cable, reader communication to the PC is diverted; the reader power supply is still provided via the communication module. Power from an external power supply unit is possible for pure PC operation without communication module.

  Область применения

  SIMATIC RF-DIAG can determine the optimum orientation of antennas at the read points extremely quickly by means of the RSSI value (Received Signal Strength Indicator). The functionality of a read point can be verified using simple software functions.

  All new functions of SIMATIC RF600 are supported.

  Commissioning and diagnostics of the readers is greatly facilitated by the use of RF-DIAG, whatever the specific application.

  Технические данные

  SIMATIC RF-DIAG
  General data
  Current version	v1.0
  Supported devices	SIMATIC RF620R, RF630R
  Target systems	Standard PC
  Functions	Commissioning and diagnostics of RFID devices
  Type of delivery
  Product CD	Software RF-DIAG Documentation as PDF
  PC adapter for RF-DIAG	PC adapter box (IP65) Protective cover for USB connector Cable (2 m) between ASM and PC adapter USB cable
  Languages
  Software	German English
  Documentation	German English Chinese
  Hardware requirements
  Processor	> 1 GHz
  Graphics	Minimum resolution 1024 * 786; 1280 * 1024 recommended
  Main memory	> 1 GB
  Memory requirements on hard disk	50 MB
  Additional hardware	CD-ROM drive
  Software requirements
  Operating system	Windows XP Professional (SP3 and higher) Windows 7 Professional 32-bit (SP1 and higher) Windows 7 Professional 64-bit (SP1 and higher)
  Additional software	Microsoft .NET Framework 2.0
