SLG D12

• Заказные данные
  (9)
• Аксессуары
  (9)
• Информационные материалы

  Информационные материалы

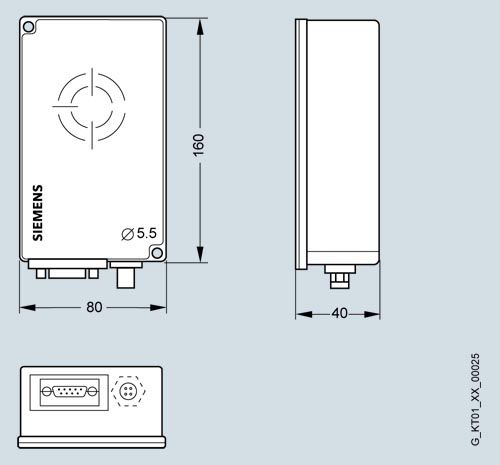

  Чертеж



  Технические данные

  Order number		6GT2601-0AB00	6GT2602-0AB00	6GT2602-0AB10-0AX0
  Product type designation		SLG D12 reader	SLG D12S reader	SLG D12S reader
  Suitability for operation		ISO 15693 Transponder (MDS Dxxx), for connecting to PC systems	ISO 15693 Transponder (MDS Dxxx), for connecting to communication modules	ISO 15693 Transponder (MDS Dxxx), for connecting to communication modules
  Wireless frequencies
  Operating frequency Rated value		13.56 MHz	13.56 MHz	13.56 MHz
  Electrical data
  Range maximum		220 mm; Range is dependent on transponder type: observe http://support.automation.siemens.com/WW/view/en/67384964	220 mm; Range is dependent on transponder type: observe http://support.automation.siemens.com/WW/view/en/67384964	220 mm; Range is dependent on transponder type: observe http://support.automation.siemens.com/WW/view/en/67384964
  Protocol with radio transmission		ISO 15693, ISO 18000-3	ISO 15693, ISO 18000-3	ISO 15693, ISO 18000-3
  Transfer rate with radio transmission maximum		26.5 kbit/s	26.5 kbit/s	26.5 kbit/s
  Product feature multitag-capable		Yes	No	No
  Transfer rate at the point-to-point connection serial maximum		38.4 kbit/s	19.2 kbit/s	19.2 kbit/s
  Transmission time for user data
  ● for write access per byte typical		2.5 ms	2.5 ms	2.5 ms
  ● for read access per byte typical		2.5 ms	2.5 ms	2.5 ms
  Interfaces
  Standard for interfaces for communication		RS232	RS422	RS422
  Type of electrical connection		Data: Sub-D, 9-pin, male, voltage: M12, 4-pin, female connector	Data: Sub-D, 9-pin, male, voltage: M12, 4-pin, female connector	M12, 8-pin
  Mechanical data
  Material		PA 12	PA 12	PA 12
  Color		anthracite	anthracite	anthracite
  Tightening torque of the screw for securing the equipment maximum		2 N·m	2 N·m	2 N·m
  Mounting distance relating to metal surfaces recommended minimum		0 mm	0 mm	0 mm
  Supply voltage, current consumption, power loss
  Supply voltage
  ● at DC Rated value		24 V	24 V	24 V
  ● at DC		20 ... 30 V	20 ... 30 V	20 ... 30 V
  Consumed current at DC at 24 V
  ● typical		0.15 A	0.15 A	0.15 A
  ● maximum		0.6 A	0.6 A	0.6 A
  Permitted ambient conditions
  Ambient temperature
  ● during operation		-25 ... +55 °C	-25 ... +55 °C	-25 ... +55 °C
  ● during storage		-25 ... +70 °C	-25 ... +70 °C	-25 ... +70 °C
  ● during transport		-25 ... +70 °C	-25 ... +70 °C	-25 ... +70 °C
  Protection class IP		IP65	IP65	IP65
  Shock resistance		EN 60721-3-7 Class 7 M2	EN 60721-3-7 Class 7 M2	EN 60721-3-7 Class 7 M2
  Shock acceleration		300 m/s²	300 m/s²	300 m/s²
  Vibrational acceleration		15 m/s²	15 m/s²	15 m/s²
  Design, dimensions and weight
  Width		80 mm	80 mm	80 mm
  Height		40 mm	40 mm	40 mm
  Depth		160 mm	160 mm	160 mm
  Net weight		0.23 kg	0.23 kg	0.23 kg
  Mounting type		2 x M5 screws	2 x M5 screws	2 x M5 screws
  Cable length
  ● with RS 232 interface maximum		30 m
  ● for RS 422 interface maximum			300 m	300 m
  Product properties, functions, components general
  Display version		-	-	-
  Standards, specifications, approvals
  Certificate of suitability		CE, FCC, IC (Canada), UL 60950, safe for cardiac pacemakers	CE, FCC, IC (Canada), UL 60950, safe for cardiac pacemakers	CE, FCC, IC (Canada), UL 60950, safe for cardiac pacemakers
  MTBF		23 y	23 y	23 y




  Дальнейшая информация

  Все текущие разрешения можно найти в Интернете по адресу:

  http://www.siemens.com/rfid-approvals
