SCALANCE TAP104

Заказные данные
(1)
Аксессуары
(9)

The SCALANCE TAP104 unmanaged Industrial Ethernet Test Access Port (TAP) is ideally suited for exporting message frames in 10/100 Mbps Industrial Ethernet (particularly PROFINET) networks. Exported message frames can be analyzed with the aid of commercially available diagnostic software for the purpose of diagnosing data communication. The SCALANCE TAP104 can be integrated directly between the connection of two active network stations.

Rugged plastic housing in SIMATIC S7-1500 design for space-saving cubicle mounting on standard DIN rails, SIMATIC S7-1500, S7-300 DIN rails, or for wall mounting
Rugged network connections with industry-standard RJ45 connectors that offer additional strain and bending relief thanks to latching on the housing (retaining collar)
TAPs in RJ45 without retaining collar for simple connection and easy differentiation between diagnostics and network ports
Diagnostics on the device by means of LEDs (power, data traffic at TAP)
No reduction of cable length due to integration of the TAP104 between two network components
In the de-energized condition, TAP104 can also be integrated into the network without any influence on the communication. Activation can only be initiated in cases when message frames have to be exported for diagnostic purposes, for example.

Product versions

SCALANCE TAP104

SCALANCE TAP104 with 2 electrical network ports and 2 electrical TAP ports

Diagnostics on the device by means of LEDs (power, data communication at the TAP port)
The RJ45 ports are suitable for industrial use and have additional retaining collars: optimized for connecting the IE FC RJ45 Plug 180

Область применения

The SCALANCE TAP104 permits the economical integration of a test access port (TAP) for the export of message frame traffic from both transmission directions between two active network components without any influence on the communication or reduction in cable length. Exported message frames can then be analyzed by means of commercially available diagnostics software or a Siemens BUS ANALYZER AGENT.

Дизайн

The SCALANCE TAP104 with its robust plastic housing is optimized for mounting on a standard DIN rail of a SIMATIC S7-300 and S7-1500 mounting rail. Due to the housing dimensions that correspond to the design of the SIMATIC S7-1500, the devices are ideally suited for integration into an automation solution using SIMATIC S7-1500 components.

The SCALANCE TAP104 features:

A 3-pin terminal block for connecting the power supply (1 x 24 V DC)
A row of LEDs for displaying status information (power, data communication to TAPs)

Функции

Integration into electrical 10/100 Mbps Industrial Ethernet connections for exporting message frames from both transmit directions
Easy network configuration;
no reduction of cable length between two network stations due to integration of the SCALANCE TAP104
Maximum TAP cable length of 10 m
Cable length of 100 m between the two active network stations

Network topology and network configuration

The SCALANCE TAP104 is typically housed in a control cabinet and integrated directly between the connection of two active network stations.

When configuring the network, the following boundary conditions must be observed:

Length of the twisted-pair cable between two active network components when integrating a SCALANCE TAP104:
- Max. 100 m with Industrial Ethernet FastConnect products
Length of the twisted pair cable to TAPs:
- max. 10 m

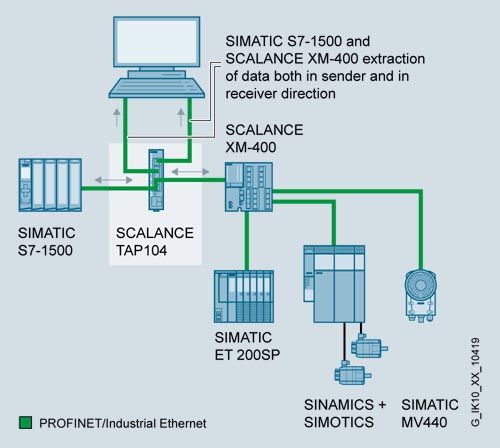

Integration of the SCALANCE TAP104 in the PROFINET network

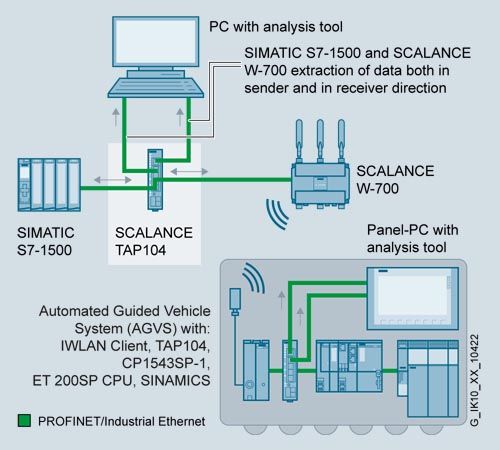

Integration of the SCALANCE TAP104 in a PROFINET network together with SCALANCE W components

Diagnostics

The following information is displayed by LEDs on site:

Power
Data traffic at TAPs

Особенности

Simple and economical TAP solution for exporting data traffic from both transmission directions
No influence on communication due to integration of TAP104 between two network stations
De-energized operation without any influence on communication
Space-saving installation in the cabinet thanks to compact design in SIMATIC S7-1500 format
Reliable plug-in connection due to rugged network connection in conjunction with industry-standard FastConnect connectors

Технические данные

Order number		6GK5104-0BA00-1SA2
Transmission rate
Transfer rate		10 Mbit/s, 100 Mbit/s
Interfaces for communication integrated
Number of electrical connections
● for network components or terminal equipment		2; RJ45 with securing collar
Interfaces others
Number of electrical connections
● for power supply		1
Type of electrical connection
● for power supply		3-pole terminal block
Supply voltage, current consumption, power loss
Type of voltage of the supply voltage		DC
Supply voltage
● external		24 V
● external		18 ... 31.2 V
Product component fusing at power supply input		Yes
Fuse protection type at input for supply voltage		0.5 A / 60 V
Consumed current maximum		0.06 A
Power loss [W]
● at DC at 24 V		1.44 W
Permitted ambient conditions
Ambient temperature
● during operation		-40 ... +70 °C
● during storage		-40 ... +85 °C
● during transport		-40 ... +85 °C
Relative humidity
● at 25 °C without condensation during operation maximum		95 %
Protection class IP		IP20
Design, dimensions and weight
Design		compact
Width		35 mm
Height		152 mm
Depth		135 mm
Net weight		0.24 kg
Mounting type
● 35 mm DIN rail mounting		Yes
● wall mounting		Yes
● S7-300 rail mounting		Yes
● S7-1500 rail mounting		Yes
Product functions Redundancy
Product function
● Parallel Redundancy Protocol (PRP)/operation in the PRP-network		Yes
● Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)		No
Standards, specifications, approvals
Standard
● for FM		FM3611: Class 1, Divison 2, Group A, B, C, D / T4, CL.1, Zone 2, GP. IIC, T4
● for hazardous zone		EN 60079-0:2009, EN60079-15:2010, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X
● for safety from CSA and UL		UL 60950-1, CSA C22.2 No. 60950-1
● for emitted interference		EN 61000-6-4 (Class B)
● for interference immunity		EN 61000-6-2
Certificate of suitability CE marking		Yes
Certificate of suitability		EN 61000-6-2, EN 61000-6-4
● C-Tick		No
● KC approval		Yes

Дальнейшая информация

Selection tools:

Two tools, the SIMATIC NET Selection Tool and the TIA Selection Tool, are available to assist you in selecting the right cabling system for SIMATIC NET:

www.siemens.com/snst-standalone
www.siemens.com/tia-selection-tool-standalone
