SINETPLAN network planning

• Заказные данные
  (1)
• Информационные материалы

  Информационные материалы

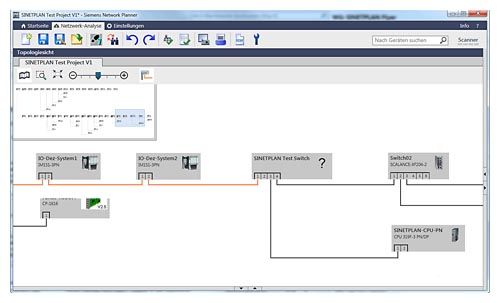

  SINETPLAN topology view

  The Siemens Network Planner SINEPLAN

  • supports planners of automation systems based on PROFINET and
  • facilitates the professional and proactive simulation of a plant / system network.

  Область применения

  SINETPLAN supports planners of automation systems and networks based on PROFINET. The tool facilitates the professional and proactive dimensioning of the PROFINET installation already during the planning phase. It allows the optimization of the network, the best utilization of network resources as well as the planning of reserves.

  Функции

  The Siemens Network Planner SINETPLAN supports the planning and layout of PROFINET networks, especially if so-called Non-Real-Time Communication (NRT) such as TCP/IP data is used in addition to RT or IRT communication.

  SINETPLAN tool calculates and simulates the network load in a PROFINET network and shows critical points where the network load is too high. In addition, it simulates the real-time data (real-time communication) as well as the non-real-time communication caused e.g. by standard Ethernet nodes.

  • Tool-supported network layout and simulation right at the planning phase
  • Transparency about the network load for RT/IRT data and NRT-Traffic (e.g. TCP/IP)
  • Report function including results obtained during simulation and validation
  • Multi-vendor and cross-project simulation
  • Analysis of Pcap files to determine the traffic generated by NRT network nodes

  Особенности

  • Cost saving through transparency prior to commissioning
  • Calculation of worst case queue assignments of the ports as well as the connections
  • Efficient though import and simulation of existing STEP 7 projects
  • Optimization of the exploitation of available network resources
  • Validation of the compliance with planning specifications
  • Increase of the production availability and prevention of downtimes from network failures

  Технические данные

  SINETPLAN V1.0 can be used on the following operating systems (32-bit and 64-bit each):

  • Microsoft Windows 7 Professional SP1
  • Microsoft Windows 7 Enterprise SP1
  • Microsoft Windows 7 Ultimate SP1

  Дальнейшая информация

  SINETPLAN highlights

  http://www.siemens.com/sinetplan

  Software download

  For up-to-date information and download availability, see:
  https://support.industry.siemens.com/cs/ww/en/view/109739454
