LOGO! CMR (wireless communication)

Заказные данные
(2)
Аксессуары
(21)

LOGO! CMR in combination with the LOGO! logic module is a cost-efficient communication system suitable for monitoring and controlling distributed plants and systems via text message or email

LOGO! CMR can send text messages or emails to predefined mobile network numbers as well as receive text messages from predefined mobile network numbers.

Sending a text message/email can be initiated by events in the LOGO! basic module as well as by the two digital alarm inputs of the LOGO! CMR. The values in the LOGO! basic module can be directly influenced by receiving a text message.

The LOGO! CMR offers comfortable Web Based Management commissioning and diagnostics via local and/or remote access.

The two digital outputs can also be switched remotely by incoming text messages/emails.

LOGO! CMR determines the current position of the module based on the GPS signal received by the GPS antenna. In addition, the LOGO! 8 logic module can be time-synchronized by means of the time included in the GPS signal. Determination of time by means of an NTP server or from the data of the mobile network provider offers more options for synchronization of the LOGO! BM with the current time of day.

Product version:

LOGO! CMR2020 for use in GSM/GPRS mobile wireless networks
LOGO! CMR2040 for use in in LTE mobile wireless networks

Warning! The country-specific mobile network approvals must be observed:

DE: http://www.siemens.com/mobilenetwork-approvals

EN: http://www.siemens.com/mobilenetwork-approvals

Область применения

In industrial environments

Easy remote diagnostics and remote control tasks in LOGO! applications in plants and machinery, e.g. gate controllers, ventilation systems, industrial water pumps, automatic feeders in agriculture
Easy building automation including building services, e.g. for HVAC (heating, ventilation and air conditioning), pump control
Remote control and monitoring, e.g. of fill level, pressure, temperature, flow rate, valve control in water/wastewater
Position monitoring in logistics, e.g. for vehicles, refrigerated trucks, containers
Easy metering and energy management systems in distributed buildings that are controlled with LOGO!
Construction of systems for monitoring and controlling of simple telecontrol stations
Remote connection of distributed, local controllers by means of LOGO!
Remote control and monitoring of low-end machine controls (mostly discrete logic)

In non-industrial environments

Remote control and monitoring of automation tasks in building and installation technology e.g.
- Stairway lighting
- Outdoor lighting
- Awnings, shutters
- Store window display lighting
Remote control of HVAC in homes, greenhouses, etc.

Дизайн

Rugged plastic enclosure in LOGO! 8 series design, supports the following types of mounting:
- DIN rail mounting
- Wall mounting
1x RJ45 interface with 10/100 Mbps for Industrial Ethernet for connection to LOGO! basic module by means of patch cable
1x SMA antenna connector for mobile network antenna
1x SMA antenna connector for GPS antenna
2x 3-pole terminal block for digital alarm inputs
2x 3-pole terminal block for digital outputs
4-pole screw-type terminal for connection to the 24 V DC supply voltage
Diagnostics LEDs for status, field strength, connection control, and DI/DO channels
SET service button
Slot for µSD card
Slot for SIM card

LOGO! CMR with remote antennas

Функции

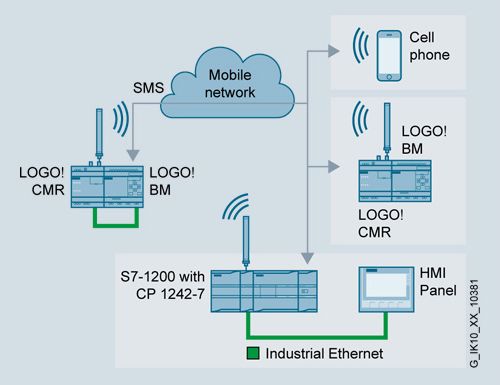

Remote communication via mobile wireless network:
- Read/write of LOGO! 8 logic module data areas using intuitive text messaging (e.g. 'LightOn')
- Event-driven alarm messaging via text message (local monitoring) and/or email
- Triggering of simple switching operations via integrated digital IOs of the LOGO! CMR (stand-alone functionality)
Protected remote access via the mobile network (remote access) to:
- Web Based Management of the LOGO! CMR via OpenVPN tunnel and HTTP. Simple, direct access via mobile network thanks to DynDNS support.
- LOGO! 8 logic module. Access to web server or via LOGO! App and up/downloading of the LOGO! Soft Comfort LSC program via OpenVPN tunnel
Automatic time synchronization of connected LOGO! 8 logic module
- with the time of an accessible NTP server
- with the time of a GPS signal or the mobile radio provider

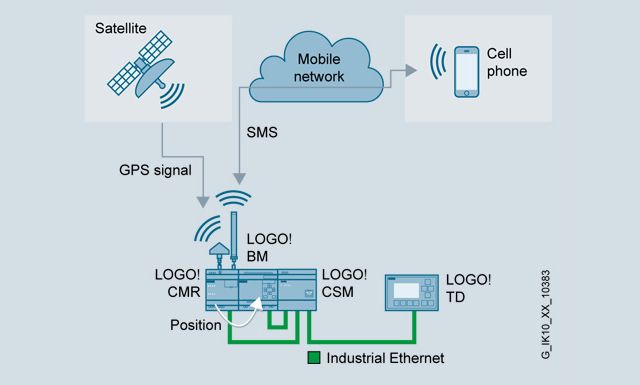

Position detection of the LOGO! CMR via GPS signal; position displayed in WBM and forwarding to the LOGO! 8 logic module
Configuration either locally via the LAN web server or remotely via mobile wireless network

Security

Approval of up to 20 call numbers for incoming text messages
Protection of access to control capability via text message by means of password (optional)
Protection of access to web interface by means of user name and password
Remote access using OpenVPN and HTTP
Optional secure email via STARTTLS, i.e. encryption of communication using Transport Layer Security (TLS). Optional verification of mail server authentication certificate.

Diagnostics

Connection buildup status and status of an existing connection via LED
History buffer can be saved on µSD card
Diagnostic information via web browser

Интеграция

Sending and receiving a text message

Safe remote access via the mobile wireless network to the LOGO! CMR and LOGO! 8 logic module

Time synchronization

Position sensing

Особенности

Cost-efficient alarm signaling system – Low investment and operating outlay for the monitoring and control of small facilities via text message and/or email
Reduction of travel/maintenance costs thanks to remote access via OpenVPN and HTTP for configuring the LOGO! CMR or LOGO! 8 logic module
Easy-to-use thanks to intuitive text messaging syntax with alias text messaging function or assignment and use of symbolic names
Simple configuration process via Web Based Management without the need for special knowledge of radio communications
Internationally deployable thanks to communication via GSM, UMTS, and LTE networks
Time synchronization of the LOGO! 8 logic module using the time determined from the GPS signal, an NTP server or the time from the mobile radio provider
Harmonizes with LOGO! 8 series with regard to functioning, design and structure
Quick assembly due to DIN rail mounting

Технические данные

Order number	6GK7142-7BX00-0AX0	6GK7142-7EX00-0AX0
Product type designation	LOGO! CMR2020	LOGO! CMR2040
Transmission rate
Transfer rate
● at the 1st interface	10 ... 100 Mbit/s	10 ... 100 Mbit/s
● for GPRS transmission
— with downlink maximum	80 kbit/s	85.6 kbit/s
— with uplink maximum	40 kbit/s	85.6 kbit/s
● for LTE transmission
— with downlink maximum		100 Mbit/s
— with uplink maximum		50 Mbit/s
Interfaces
Number of interfaces acc. to Industrial Ethernet	1	1
Number of electrical connections
● at the 1st interface acc. to Industrial Ethernet	1	1
● for external antenna(s)	2	2
● for power supply	1	1
Number of slots
● for SIM cards	1	1
● for memory cards	1	1
Type of electrical connection
● at the 1st interface acc. to Industrial Ethernet	RJ45 port	RJ45 port
● for external antenna(s)	SMA socket (50 ohms)	SMA socket (50 ohms)
● for power supply	3-pole terminal block	3-pole terminal block
Type of antenna
● at port 1 connectable	GPS Antenna	GPS Antenna
● at port 2 connectable	Mobile radio antenna (GPRS/GSM)	Mobile radio antenna (GPRS/GSM, UMTS, LTE)
Wire length of antenna cable maximum	15 m	15 m
Slot version
● for SIM card	Standard	Standard
● of the memory card	microSD	microSD
Storage capacity of the memory card maximum	32 Gibyte	32 Gibyte
Performance class of the memory card minimum necessary	Class 6	Class 6
Type of file system Type of file system	FAT32	FAT32
Signal-Inputs/outputs
Number of electrical connections for digital input signals	2	2
Type of electrical connection for digital input signals	3 pole terminal block	3 pole terminal block
Digital input version	not potential seperated	not potential seperated
Input voltage at digital input
● with signal <0> at DC	0 ... 5 V	0 ... 5 V
● for signal <1> at DC	8.5 ... 24 V	8.5 ... 24 V
Input current at digital input for signal <1> maximum	5.5 mA	5.5 mA
Number of electrical connections for digital output signals	2	2
Type of electrical connection for digital output signals	3 pole terminal block	3 pole terminal block
Digital output version	transistor, not potential seperated	transistor, not potential seperated
Output voltage at digital output
● for signal <1>	12 ... 24 V; Value of the actual supply voltage	12 ... 24 V; Value of the actual supply voltage
● for signal <0>	0 ... 5 V	0 ... 5 V
Output current at digital output for signal <1> maximum	0.3 A	0.3 A
Wireless technology
Type of mobile wireless service
● is supported SMS	Yes	Yes
● is supported GPRS	Yes	Yes
● Note	GPRS (Multislot Class 10, Mobile Station Class B)	LTE
Type of mobile network is supported
● GSM	Yes	Yes
● UMTS	No	Yes
● LTE	No	Yes
Operating frequency
● for GSM transmission 850 MHz	Yes	No
● for GSM transmission 900 MHz	Yes	Yes
● for GSM transmission 1800 MHz	Yes	Yes
● for GSM transmission 1900 MHz	Yes	No
● with UMTS transmission 850 MHz	No	Yes
● with UMTS transmission 900 MHz	No	Yes
● with UMTS transmission 2100 MHz	No	Yes
● for LTE transmission 800 MHz	No	Yes
● for LTE transmission 1800 MHz	No	Yes
● for LTE transmission 2600 MHz	No	Yes
Supply voltage, current consumption, power loss
Type of voltage of the supply voltage	DC	DC
Supply voltage external	12 ... 24 V	12 ... 24 V
Supply voltage external at DC Rated value	12 ... 24 V	12 ... 24 V
Supply voltage for GPS antenna maximum	3.8 V; at 5 mA: 3,575 V / at 10 mA: 3,35 V / at 15 mA: 3,125 V	3.8 V; at 5 mA: 3,575 V / at 10 mA: 3,35 V / at 15 mA: 3,125 V
Relative positive tolerance at DC at 24 V	20 %	20 %
Relative negative tolerance at DC at 12 V	10 %	10 %
Consumed current
● from external supply voltage at DC at 12 V maximum	0.25 A	0.25 A
● from external supply voltage at DC at 24 V maximum	0.125 A	0.125 A
Output current for GPS antenna maximum	15 mA	15 mA
Power loss [W]	3 W	3 W
Permitted ambient conditions
Ambient temperature
● during operation	-20 ... +70 °C	-20 ... +70 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C
Relative humidity at 25 °C without condensation during operation maximum	95 %	95 %
Protection class IP	IP20	IP20
Design, dimensions and weight
Module format	Compact module, for rail mounting	Compact module, for rail mounting
Width	71.5 mm	71.5 mm
Height	90 mm	90 mm
Depth	58.2 mm	58.2 mm
Net weight	0.16 kg	0.16 kg
Mounting type
● 35 mm DIN rail mounting	Yes	Yes
● wall mounting	Yes	Yes
Product properties, functions, components general
Product function
● DynDNS client	Yes	Yes
● no-ip.com client	Yes	Yes
Performance data
Number of possible connections to the LOGO! logic module	1	1
Number of user groups definable maximum	10	10
Number of signals for monitoring or device control definable maximum	32	32
Number of events for monitoring definable maximum	32	32
number of actions definable maximum	32	32
Number of relations definable maximum	32	32
Number of alias-SMS-command definable maximum	20	20
Number of constants definable maximum	32	32
Performance data IT functions
Number of possible connections
● as server by means of HTTP maximum	2	2
● as server by HTTPS maximum	2	2
● as e-mail client maximum	1	1
Number of free texts for e-mails definable by user	20; maximum of 160 characters per user defined text	20; maximum of 160 characters per user defined text
Performance data Teleservice
Product function
● Remote firmware update	Yes	Yes
Configuration software
● required	No, configuration by using the integrated webserver	No, configuration by using the integrated webserver
Product functions Diagnosis
Product function Web-based diagnostics	Yes	Yes
Product functions Security
Suitability for operation Virtual Private Network	Yes	Yes
Type of authentication with Virtual Private Network PSK	Yes	Yes
Number of possible connections with VPN connection	1	1
Product function
● password protection for Web applications	Yes	Yes
● password protection for VPN	Yes	Yes
● encrypted data transmission	Yes	Yes
● switch-off of non-required services	Yes	Yes
● log file for unauthorized access	Yes	Yes
Product functions Time
Product function pass on time synchronization	Yes	Yes
Accuracy of the hardware real-time clock per day maximum	7.5 s	7.5 s
time synchronization
● from NTP-server	Yes	Yes
● from GPS-signal	Yes	Yes
● from mobile network provider	Yes	Yes
● PC	Yes	Yes
Product functions Position recognition
Product function position detection with GPS	Yes	Yes

Дальнейшая информация

Selection tools:

To assist in selecting the right Industrial Ethernet switches as well as in configuring the LOGO logic module, the TIA Selection Tool is available at:

TIA Selection Tool:

http://www.siemens.com/tia-selection-tool
