  SIMOTICS S-1FL6 servomotors

  SIMOTICS S-1FL6 motors are permanent-magnet synchronous motors and designed for operation without external cooling. The heat is dissipated through the motor surface. Thanks to the quick-lock connectors, quick and easy mounting of the motors is possible. Together with the SINAMICS V70, the SIMOTICS S-1FL6 feed motors provide a highly dynamic solution for the machine tool application.

  Функции

  • 3 motor shaft heights: SH 45, SH 65 and SH 90
  • Rated speed of 2000 rpm/3000 rpm
  • Max. speed up to 4000 rpm
  • 300 % overload capacity
  • Integrated 20 bit absolute encoder or incremental encoder with 2500 S/R (13 bit resolution through electronic multiplication of the V70 drive)
  • Degree of protection IP65, natural cooling
  • Optional holding brake
  • With plain shaft or feather key, half-key balancing

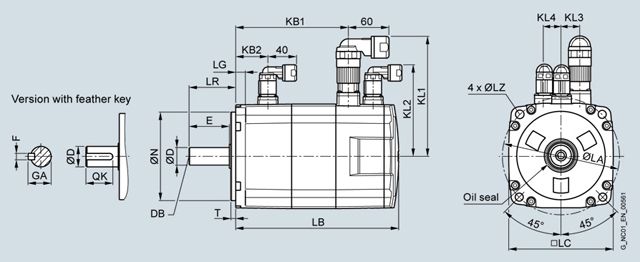

  Чертеж



  SIMOTICS S-1FL6 feed motor with incremental encoder

  For motor		Dimensions in mm
  									DE Shaft extension						Encoder system:
  															Incremental encoder 2500 S/R
  Shaft height	Type														without brake			with brake
  		LC	LA	LZ	N	LR	T	LG	D	DB	E	QK	GA	F	LB	KB1	KB2	LB	KB1	KB2	KL1	KL2	KL3	KL4
  SIMOTICS S-1FL6 natural cooling without/with brake
  45	1FL6042	90	100	7	80	35	4	10	19	M6×16	30	25	21.5	6	154.5	93.5	−	201	140	31.5	129	92	−	−
  	1FL6044														201.5	140.5	−	248	187
  65	1FL6061	130	145	9	110	58	6	12	22	M8×16	50	44	25	8	148	85.5	−	202.5	140	39.5	151	115	23	22
  	1FL6062														181	118.5	−	235.5	173
  	1FL6064														181	118.5	−	235.5	173
  	1FL6066														214	151.5	−	268.5	206
  	1FL6067														247	184.5	−	301.5	239
  90	1FL6090	180	200	13.5	114.3	80	3	18	35	M12 ×25	75	60	38	10	189.5	140	−	255	206	44.5	177	149	34	34
  	1FL6092														211.5	162	−	281	232
  	1FL6094														237.5	188	−	307	258
  	1FL6096														289.5	240	−	359	310









  SIMOTICS S-1FL6 feed motor with absolute encoder

  For motor		Dimensions in mm
  									DE Shaft extension						Encoder system:
  															Absolute encoder 20 bit
  Shaft height	Type														without brake			with brake
  		LC	LA	LZ	N	LR	T	LG	D	DB	E	QK	GA	F	LB	KB1	KB2	LB	KB1	KB2	KL1	KL2	KL3	KL4
  SIMOTICS S-1FL6 natural cooling without/with brake
  45	1FL6042	90	100	7	80	35	4	10	19	M6×16	30	25	21.5	6	157	100	−	203.5	147	31.5	129	60	−	−
  	1FL6044														204	147	−	250.5	194				−	−
  65	1FL6061	130	145	9	110	58	6	12	22	M8×16	50	44	25	8	151	92	−	205.5	147	39.5	151	60	−	−
  	1FL6062														184	125	−	238.5	180				−	−
  	1FL6064														184	125	−	238.5	180				−	−
  	1FL6066														217	158	−	271.5	213				−	−
  	1FL6067														250	191	−	304.5	246				−	−
  90	1FL6090	180	200	13.5	114.3	80	3	18	35	M12 ×25	75	60	38	10	197	135	−	263	201	44.5	177	60	−	−
  	1FL6092														223	161	−	289	227				−	−
  	1FL6094														249	187	−	315	253				−	−
  	1FL6096														301	239	−	367	305				−	−





  Особенности

  • High-performance magnet material
  • Rugged design with IP65 degree of protection for complete motor including connectors
  • Smooth running quality thanks to low torque ripple
  • High rated speed for some variants
  • High acceleration due to the 300 % overload capacity
  • Rotatable and fast-release connectors
  • Maximum flexibility due to variants with incremental encoder/20 bit absolute encoder, with/without brake and plain shaft/feather key, half-key balancing

  Технические данные

  Article No.	1FL6...
  Product brand name	SIMOTICS
  Product type designation	S-1FL6
  Product designation	Feed motor
  Type of motor	Synchronous motor
  Type of motor	Permanent-magnet synchronous motor
  Magnet material	High-performance magnet material
  Cooling	Natural cooling
  Insulation of the stator winding in accordance with EN 600034-1 (IEC 60034-1)	Temperature class 130 (B)
  Thermal class	B
  Type of construction in accordance with EN 60034-7 (IEC 60034-7)	IM B5 (IM V1, IM V3)
  Degree of protection in accordance with EN 60034-5 (IEC 60034-5)	IP65, with oil seal
  Shaft extension in accordance with IEC 60072-1	Plain shaft/feather key (C type)
  Sound pressure level, max.
  1FL604	65 dB
  1FL606	70 dB
  1FL609	70 dB
  Ambient temperature
  Storage/transport	-15 ... +65 °C
  Operation	0 ... 40 °C without derating
  Humidity
  Storage/transport	90 % at 30 °C
  Operation	90 % at 30 °C
  Installation altitude	Up to 1000 m above sea level without derating > 1000 ... 5000 m with derating
  Paint finish	Anthracite
  Certification	CE, EAC
