Base plate and elastomer bearing

• Заказные данные
  (6)
• Информационные материалы

  Информационные материалы

  The base plate and the elastomer bearing form a self-centering bearing unit together with the load cells of the SIWAREX WL230 SB-S SA series. It suppresses oscillations and shocks to a certain extent.

  Дизайн

  Elastomer bearings are rubber-metal composites made of neoprene and stainless steel. Their special design means that lateral movement of the load bearing implement does not result in high transverse force on the load cell.

  If the load bearing implement is displaced by more than 4 mm (0.16 inch) in the horizontal direction, measures for restricting sideways play (e.g. stops) must be provided in the construction of the load bearing implement.

  The base plate of stainless steel is used for suitable fixing of the load cell on the base.

  The load cell is not included in the scope of delivery of the base plate or elastomer bearing.

  Чертеж

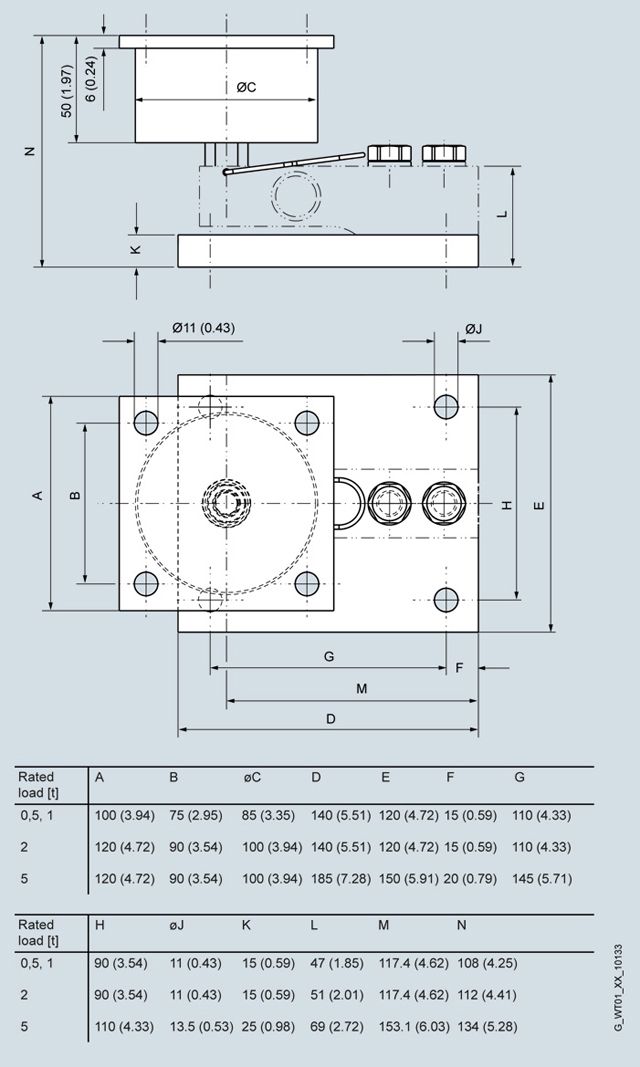

  Base plate and elastomer bearing for SIWAREX WL230 SB-S SA load cells, dimensions in mm (inch)

  Технические данные

  Base plate and elastomer bearing for SIWAREX WL230 SB-S SA load cells
  Rated load	500 kg (0.49 tn. l.)	1 t (0.98 tn. l.)	2 t (1.97 tn. l.)	5 t (4.92 tn. l.)
  Maximum permitted lateral deflection	± 4 mm (0.16 in)	± 4 mm (0.16 in)	± 4 mm (0.16 in)	± 4 mm (0.16 in)
  Vertical rigidity	5.9 kN/mm	5.9 kN/mm	29.98 kN/mm	29.98 kN/mm
  Horizontal rigidity	0.16 kN/mm	0.16 kN/mm	0.54 kN/mm	0.54 kN/mm
  Compression at rated load	0.68 mm (0.037 in)	1.28 mm (0.050 in)	0.62 mm (0.024 in)	1.46 mm (0.057 in)
