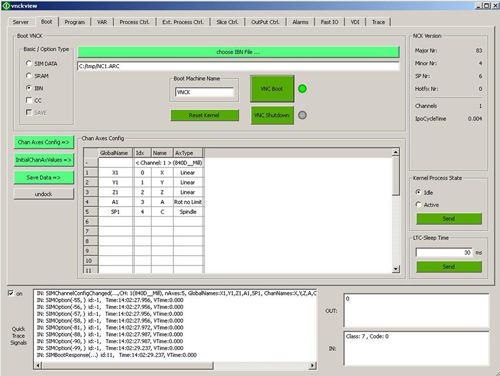

  SINUMERIK Integrate for engineering Run MyVNCK integrates CNC functions into the simulation process. The kernel uses the same source code as the NC kernel in the CNC. This allows CNC algorithms, language scope, commissioning, data management and communication to be handled in the same way for both Run MyVNCK and NCK. Run MyVNCK is capable of simulating control sequences with their full range of functions. CNC programs including all their high-level language elements can therefore be checked for syntactic correctness and executability. The working area can be reliably assessed for risk of collision and the workpiece geometry and motion behavior can be evaluated. Program runtimes can also be calculated.

  By deploying other components, such as the CAD data for the real machine, the machine manufacturer or CAM system manufacturer can create a virtual machine that resembles the real machine as closely as possible.

  Use of SINUMERIK Integrate for engineering Run MyVNCK is always subject to conclusion of an integration contract.
