Single Motor Modules

Заказные данные
(5)

Информационные материалы

Дизайн

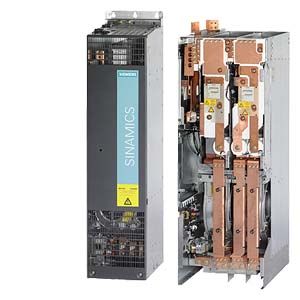

The Single Motor Modules in chassis format feature the following connections and interfaces as standard:

1 DC link connection (DCP, DCN) for connecting to the supply DC busbar
1 DC link connection (DCPA, DCNA) for connecting a Braking Module
1 electronics power supply connection
3 DRIVE‑CLiQ sockets
1 motor connection
1 safe standstill input (enable pulses)
1 temperature sensor input (KTY84-130, PT100 two-wire or PTC)
1 PE/protective conductor connection

The status of the Motor Modules is indicated via two multi-color LEDs.

The scope of supply of the Motor Modules includes:

Frame sizes FX and GX:
- 0.60 m (1.97 ft) DRIVE-CLiQ cable for connection to the adjacent Motor Module

Характеристика

Overload capability

Load cycle data for Single Motor Modules in chassis format

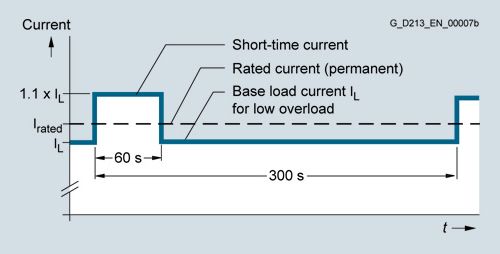

The base-load current I_L is based on a load cycle of 110 % for 60 s or 150 % for 10 s with a load cycle duration of 300 s.

Low overload

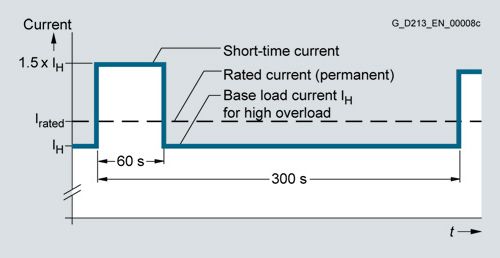

The base-load current I_H is based on a load cycle of 150 % for 60 s or 160 % for 10 s with a load cycle duration of 300 s.

High overload

Derating factors

When the pulse frequency is increased, the derating factor of the output current must be taken into account.

This derating factor must be applied to the currents specified in the technical specifications.

Derating factor of the output current dependent on pulse frequency for devices with a rated pulse frequency of 2 kHz

Single Motor Module in chassis format	Type rating	Output current	Derating factor
Type		for a pulse frequency of 2 kHz	for a pulse frequency of 4 kHz
6SL3320- ...	kW (HP)	A
1TE32‑1AA3	110 (150)	210	0.82
1TE32‑6AA3	132 (200)	260	0.83
1TE33‑1AA3	160 (250)	310	0.88
1TE33‑8AA3	200 (300)	380	0.87
1TE33‑0AA3	250 (400)	490	0.78

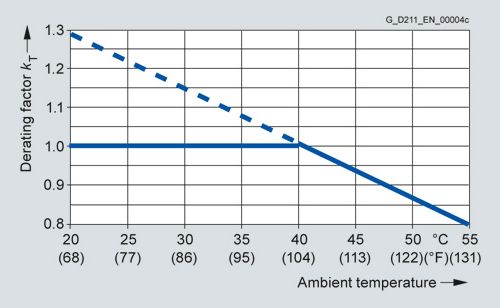

Current derating dependent on ambient temperature

Note: A derating factor k_T > 1.0 is applicable only in conjunction with "current derating as a function of installation altitude". The rated current data may not be exceeded. For further information see System description.

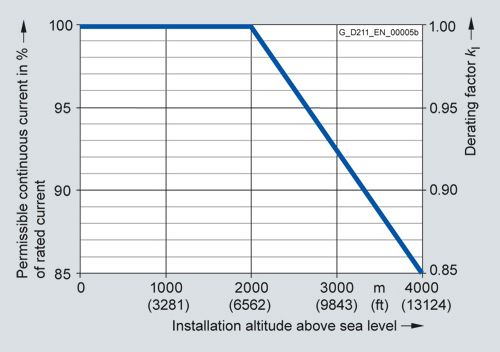

Current derating dependent on installation altitude

Voltage derating dependent on installation altitude

Интеграция

The Single Motor Module receives its control information via DRIVE-CLiQ from:

CU320-2 Control Unit
SINUMERIK 840D sl with
- NCU 710.3 PN
- NCU 720.3 PN
- NCU 730.3 PN
- Numeric Control Extensions NX10.3/NX15.3

Технические данные

Product name	Single Motor Modules in chassis format
	6SL3320-...
DC link voltage Up to 2000 m (6562 ft) above sea level	510 ... 720 V DC (line voltage 380 ... 480 V 3 AC)
Output frequency	0 … 300 Hz ¹⁾
Electronic power supply	24 V DC -15 %/+20 %
Cooling method	Internal air cooling, power units with forced air cooling using an integrated fan
Permissible ambient or coolant temperature (air) In operation for line-side components, Line Modules and Motor Modules	0 … 40 °C (32 … 104 °F) without derating, > 40 … 55 °C (104 … 131 °F), see derating characteristics
Installation altitude	Up to 2000 m (6562 ft) above sea level without derating, > 2000 ... 4000 m (6562 ... 13124 ft) above sea level, see derating characteristics
Declarations of conformity	CE (Low Voltage and EMC Directives)
Approvals, according to 510 ... 720 V DC Motor Modules only	cULus
Safety Integrated	Safety Integrity Level 2 (SIL 2) according to IEC 61508, Control category 3 according to EN 954-1

¹⁾ Note correlation between max. output frequency, pulse frequency and current derating (250 µs current controller cycle; 4 kHz pulse frequency, see characteristics for derating).

DC link voltage 510 … 720 V DC		Single Motor Module in chassis format
	6SL3320-...	1TE32‑1AA3	1TE32‑6AA3	1TE33‑1AA3	1TE33‑8AA3	1TE35‑0AA3
Output current
Rated current I_rated	A	210	260	310	380	490
Base-load current I_L	A	205	250	302	370	477
Base-load current I_H	A	178	233	277	340	438
For S6 duty (40%) I_S6	A	230	285	340	430	540
I_max	A	307	375	453	555	715
Type rating ¹⁾
Based on I_rated	kW (HP)	110 (150)	132 (200)	160 (250)	200 (300)	250 (400)
Based on I_H	kW (HP)	90 (125)	110 (150)	132 (200)	160 (250)	200 (350)
Rated pulse frequency	kHz	2	2	2	2	2
Rated DC link current I_d²⁾ When supplied via
Active Line Module	A	227	281	335	411	530
DC link capacitance	μF	4200	5200	6300	7800	9600
Power requirement
At 24 V DC, max.	A	0.9	0.9	1.2	1.2	1.2
Fan supply at 400 V 2 AC, 50/60 Hz, max.	A	0.63/0.95	1.13/1.7	1.8/2.7	1.8/2.7	1.8/2.7
Power loss, max.	kW	1.94	2.6	3.1	3.8	4.5
Cooling air requirement	m³/s (ft³/s)	0.17 (6.0)	0.23 (8.1)	0.36 (12.7)	0.36 (12.7)	0.36 (12.7)
Sound pressure level L_pA (1 m)	dB	< 67	< 69	< 69	< 69	< 69
DC link connection DCP, DCN		Flat connector for M10 screw	Flat connector for M10 screw	Flat connector for M10 screw	Flat connector for M10 screw	Flat connector for M10 screw
Conductor cross-section, max.	mm²	2 × 185	2 × 185	2 × 185	2 × 185	2 × 185
Motor connection U2, V2, W2		Flat connector for M10 screw	Flat connector for M10 screw	Flat connector for M10 screw	Flat connector for M10 screw	Flat connector for M10 screw
Conductor cross-section, max.	mm²	2 × 185	2 × 185	2 × 185	2 × 185	2 × 185
PE connection		M10 screw	M10 screw	M10 screw	M10 screw	M10 screw
Conductor cross-section, max.	mm²	2 × 185	2 × 185	2 × 185	2 × 185	2 × 185
Motor brake connection		–	–	–	–	–
Motor cable length, max. Without external options
Shielded	m (ft)	300 (984)	300 (984)	300 (984)	300 (984)	300 (984)
Unshielded	m (ft)	450 (1476)	450 (1476)	450 (1476)	450 (1476)	450 (1476)
Degree of protection		IP20	IP20	IP20	IP20	IP20
Dimensions
Width	mm (in)	326 (12.83)	326 (12.83)	326 (12.83)	326 (12.83)	326 (12.83)
Height	mm (in)	1400 (55.12)	1400 (55.12)	1533 (60.35)	1533 (60.35)	1533 (60.35)
Depth	mm (in)	356 (14.02)	356 (14.02)	545 (21.46)	545 (21.46)	545 (21.46)
Frame size		FX	FX	GX	GX	GX
Net weight	kg (lb)	95 (210)	95 (210)	136 (300)	136 (300)	136 (300)

¹⁾ Rated power of a typical standard asynchronous (induction) motor at 600 V DC link voltage.

²⁾ Rated DC link current for dimensioning an external DC connection.
