Plug transceivers for SCALANCE X-500 managed

Заказные данные
(15)
Аксессуары
(4)

Plug-in transceivers offer the capability of flexibly equipping the modular SCALANCE X-500 Industrial Ethernet switches for optical connections
With an operating temperature range from -40 °C to +70 °C, the SFP plug-in transceivers are especially suited for use in demanding environments
All specified plug-in transceivers are tested for use with SCALANCE devices
There are different versions that differ depending on suitable fiber types, range, and bandwidth

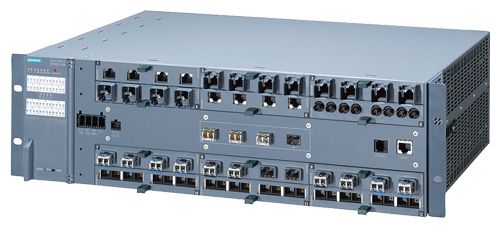

Modular SCALANCE XR552-12M

Product versions

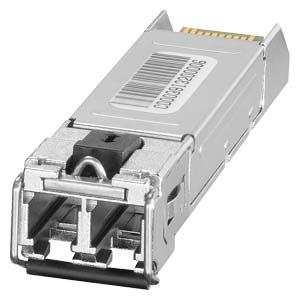

The SFP (small-form-factor pluggable) transceivers can be used directly or together with the MM992-4SFP media module in the modular X-500 Industrial Ethernet switches.

MM992-4SFP media module for SFP plug-in transceiver

Optical SFP plug-in transceivers with 1 x 100 Mbps LC port

SFP991-1, multi-mode, glass, up to 5 km
SFP991-1LD, single-mode, glass, up to 26 km
SFP991-1LH+, single-mode, glass, up to 70 km
SFP991-1ELH200, single-mode, glass, up to 200 km

Optical SFP plug-in transceivers with 1 x 1000 Mbps LC port

SFP992-1, multi-mode, glass, up to 750 m
SFP992-1LD, single-mode, glass, up to 10 km
SFP992-1LH, single-mode, glass, up to 40 km
SFP992-1LH+, single-mode, glass, up to 70 km
SFP992-1ELH, single-mode, glass, up to 120 km

The SFP+ plug-in transceivers can be used in the modular SCALANCE XR528-6M and XR552-12M Industrial Ethernet switches. Operating temperature range from 0 to +60 °C

Optical SFP+ plug-in transceivers with 1 × 10 Gbit/s LC port

SFP993-1, multi-mode, glass, up to 300 m
SFP993-1LD, single-mode, glass, up to 10 km
SFP993-1LH, single-mode, glass, up to 40 km

Дизайн

Operating temperature range of the SFP plug-in transceivers from -40 °C to +70 °C
SFP plug-in transceivers have an LC connection
IP20 degree of protection

Electrically preassembled SFP+/SFP+ connecting cable with 10 Gbit/s

The IE Connecting Cable SFP+/SFP+ is pre-assembled at both ends and is suitable for the transmission of 10 Gbit/s Ethernet. The cables have SFP+ connectors for use in the SFP+ slots of the SCALANCE X-500 series and therefore offer the possibility of connecting SCALANCE X-500 switches cost-effectively over short distances with a bandwidth of 10 Gbit/s. The SFP+/SFP+ connecting cables can only be used in the integrated SFP+ slots of the SCALANCE X-500.

IE connecting cable SFP+/SFP+ 1 m;
Twinax copper cable with a length of 1 m
IE connecting cable SFP+/SFP+ 2 m;
Twinax copper cable with a length of 2 m
IE connecting cable SFP+/SFP+ 7 m;
Twinax copper cable with a length of 7 m

Особенности

Cost savings due to the modular system. The modular system allows the setup of electrical and optical Industrial Ethernet networks and the network topology and port type to easily be adapted to the plant structure and expanded at any time
Integrated industrial network for data, speech, and video
Bandwidths from 100 Mbps to 10 Gbit/s

Технические данные

Order number	6GK5991-1AD00-8AA0	6GK5991-1AF00-8AA0	6GK5991-1AE00-8AA0	6GK5991-1AE30-8AA0
Product type designation	SFP991-1	SFP991-1LD	SFP991-1LH+	SFP991-1ELH200
Interfaces
Number of electrical/optical connections for network components or terminal equipment maximum	1	1	1	1
Number of optical interfaces for network components or terminal equipment maximum	1	1	1	1
Number of 100 Mbit/s LC ports	1	1	1	1
Design of the optical interface for network components or terminal equipment	LC	LC	LC	LC
Wavelength of the optical interface	1 310 nm; Multi-mode	1 310 nm; Single-mode	1 550 nm; Single-mode	1 550 nm; Single-mode
Connectable optical power relative to 1 mW
● of the transmitter output minimum	-19 dB	-15 dB	-5 dB	1 dB
● of the transmitter output maximum	-14 dB	-8 dB	0 dB	5 dB
● of the receiver input maximum	-3 dB	-3 dB	-3 dB	-9 dB
Optical sensitivity relating to 1 mW of the receiver input minimum	-32 dB	-34 dB	-34 dB	-42 dB
Damping ratio of the FOC transmission link minimum necessary	0 dB	0 dB	3 dB	14 dB
Range at the optical interface depending on the optical fiber used	0 ... 5 km	0 ... 26 km	12 ... 70 km	61 ... 200 km
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● Note	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours
Relative humidity at 25 °C without condensation during operation maximum	95 %	95 %	95 %	95 %
Protection class IP	IP20	IP20	IP20	IP20
Design, dimensions and weight
Design	SFP Module	SFP Module	SFP Module	SFP Module
Width	13.7 mm	13.7 mm	13.7 mm	13.7 mm
Height	11.9 mm	11.9 mm	11.9 mm	11.9 mm
Depth	56.5 mm	56.5 mm	56.5 mm	56.5 mm
Net weight	0.01 kg	0.01 kg	0.01 kg	0.01 kg
Mounting type	latched	latched	latched	latched
Standards, specifications, approvals
Standard
● for FM	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4
● for hazardous zone	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X
● for safety from CSA and UL	UL 60950-1, CSA C22.2 No. 60950-1-03	UL 60950-1, CSA C22.2 No. 60950-1-03	UL 60950-1, CSA C22.2 No. 60950-1-03	UL 60950-1, CSA C22.2 No. 60950-1-03
● for emitted interference	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)
● for interference immunity	EN 61000-6-2:2005	EN 61000-6-2:2005	EN 61000-6-2:2005	EN 61000-6-2:2005
Certificate of suitability	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007
● CE marking	Yes	Yes	Yes	Yes
● C-Tick	Yes	Yes	Yes	Yes
● KC approval	No	No	No	No
MTBF at 40 °C	120 y	120 y	120 y	120 y

Order number	6GK5992-1AL00-8AA0	6GK5992-1AM00-8AA0	6GK5992-1AN00-8AA0
Product type designation	SFP992-1	SFP992-1LD	SFP992-1LH
Interfaces
Number of electrical/optical connections for network components or terminal equipment maximum	1	1	1
Number of optical interfaces for network components or terminal equipment maximum	1	1	1
Number of 1000 Mbit/s LC ports for single mode (LD) Integrated		1	1
Number of 1000 Mbit/s LC ports for multimode Integrated	1
Design of the optical interface for network components or terminal equipment	LC	LC	LC
Wavelength of the optical interface	850 nm; Multi-mode	1 310 nm; Single-mode	1 550 nm; Single-mode
Connectable optical power relative to 1 mW
● of the transmitter output minimum	-9.5 dB	-9.5 dB	-6 dB
● of the transmitter output maximum	-4 dB	-3 dB	0 dB
● of the receiver input maximum	-3 dB	-3 dB	-3 dB
Optical sensitivity relating to 1 mW of the receiver input minimum	-17 dB	-21 dB	-23 dB
Damping ratio of the FOC transmission link minimum necessary	0 dB	0 dB	3 dB
Range at the optical interface depending on the optical fiber used	0 ... 0.75 km	0 ... 10 km	8 ... 40 km
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● Note	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours
Relative humidity at 25 °C without condensation during operation maximum	95 %	95 %	95 %
Protection class IP	IP20	IP20	IP20
Design, dimensions and weight
Design	SFP Module	SFP Module	SFP Module
Width	13.7 mm	13.7 mm	13.7 mm
Height	11.9 mm	11.9 mm	11.9 mm
Depth	56.5 mm	56.5 mm	56.5 mm
Net weight	0.01 kg	0.01 kg	0.01 kg
Mounting type	latched	latched	latched
Standards, specifications, approvals
Standard
● for FM	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4
● for hazardous zone	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X
● for safety from CSA and UL	UL 60950-1, CSA C22.2 No. 60950-1-03	UL 60950-1, CSA C22.2 No. 60950-1-03	UL 60950-1, CSA C22.2 No. 60950-1-03
● for emitted interference	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)
● for interference immunity	EN 61000-6-2:2005	EN 61000-6-2:2005	EN 61000-6-2:2005
Certificate of suitability	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007
● CE marking	Yes	Yes	Yes
● C-Tick	Yes	Yes	Yes
● KC approval	No	No	No
MTBF at 40 °C	120 y	120 y	120 y

Order number	6GK5992-1AP00-8AA0	6GK5992-1AQ00-8AA0
Product type designation	SFP992-1LH+	SFP992-1ELH
Interfaces
Number of electrical/optical connections for network components or terminal equipment maximum	1	1
Number of optical interfaces for network components or terminal equipment maximum	1	1
Number of 1000 Mbit/s LC ports for single mode (LD) Integrated	1	1
Design of the optical interface for network components or terminal equipment	LC	LC
Wavelength of the optical interface	1 550 nm; Single-mode	1 550 nm; Single-mode
Connectable optical power relative to 1 mW
● of the transmitter output minimum	0 dB	0 dB
● of the transmitter output maximum	5 dB	5 dB
● of the receiver input maximum	-3 dB	-8 dB
Optical sensitivity relating to 1 mW of the receiver input minimum	-23 dB	-32 dB
Damping ratio of the FOC transmission link minimum necessary	8 dB	8 dB
Range at the optical interface depending on the optical fiber used	30 ... 70 km	37 ... 120 km
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +85 °C	-40 ... +85 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C
● Note	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours
Relative humidity at 25 °C without condensation during operation maximum	95 %	95 %
Protection class IP	IP20	IP20
Design, dimensions and weight
Design	SFP Module	SFP Module
Width	13.7 mm	13.7 mm
Height	11.9 mm	11.9 mm
Depth	56.5 mm	56.5 mm
Net weight	0.01 kg	0.01 kg
Mounting type	latched	latched
Standards, specifications, approvals
Standard
● for FM	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4
● for hazardous zone	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X
● for safety from CSA and UL	UL 60950-1, CSA C22.2 No. 60950-1-03	UL 60950-1, CSA C22.2 No. 60950-1-03
● for emitted interference	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)
● for interference immunity	EN 61000-6-2:2005	EN 61000-6-2:2005
Certificate of suitability	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007
● CE marking	Yes	Yes
● C-Tick	Yes	Yes
● KC approval	No	No
MTBF at 40 °C	120 y	120 y
