Plug-in transceivers for SCALANCE XM-400 managed

Заказные данные
(13)
Аксессуары
(14)

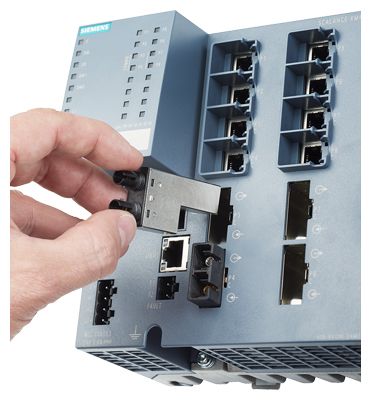

Plug-in transceivers offer the capability of flexibly equipping the modular SCALANCE XM-400 Industrial Ethernet switches for optical connections
With an operating temperature range from -40 °C to +70 °C, the plug-in transceivers are especially suited for use in demanding environments
All specified plug-in transceivers are tested for use with SCALANCE devices
There are different versions that differ depending on suitable fiber types, range, and bandwidth

Product versions

SFP plug-in transceivers (small form-factor pluggable) can be used in combination with the SCALANCE XM408-8C and XM416-4C basic devices and with the PE400-8SFP port extender.

Optical SFP plug-in transceivers with 1 x 100 Mbps LC port

SFP991-1, multi-mode, glass, up to 5 km
SFP991-1LD, single-mode, glass, up to 26 km
SFP991-1LH+, single-mode, glass, up to 70 km
SFP991-1ELH200, single-mode, glass, up to 200 km

Optical SFP plug-in transceivers with 1 × 1 Gbit/s LC port

SFP992-1, multi-mode, glass, up to 750 m
SFP992-1LD, single-mode, glass, up to 10 km
SFP992-1LH, single-mode, glass, up to 40 km
SFP992-1LH+, single-mode, glass, up to 70 km
SFP992-1ELH, single-mode, glass, up to 120 km

The SCP and STP plug-in transceivers can be used in combination with the SCALANCE XM408-4C basic device.

ST plug-in transceiver, ST/BFOC connection, 100 Mbps

STP991-1, multi-mode FOC, up to 5 km
STP991-1LD, single-mode FOC, up to 26 km

SC plug-in transceiver, SC connection, 1000 Mbps

STP992-1, multi-mode FOC, up to 750 m
STP992-1LD, single-mode FOC, up to 10 km

Дизайн

Operating temperature range from -40 °C to +70 °C
SFP plug-in transceivers have an LC connection
SFP plug-in transceivers have an ST/BFOC terminal
SCP plug-in transceivers have an SC terminal
IP20 degree of protection

Особенности

Cost savings due to the modular system. The modular system allows the setup of electrical and optical Industrial Ethernet networks and the network topology and port type to easily be adapted to the plant structure and expanded at any time
Integrated industrial network for data, speech, and video

Технические данные

Order number	6GK5991-1AD00-8AA0	6GK5991-1AF00-8AA0	6GK5991-1AE00-8AA0	6GK5991-1AE30-8AA0
Product type designation	SFP991-1	SFP991-1LD	SFP991-1LH+	SFP991-1ELH200
Interfaces
Number of electrical/optical connections for network components or terminal equipment maximum	1	1	1	1
Number of optical interfaces for network components or terminal equipment maximum	1	1	1	1
Number of 100 Mbit/s LC ports	1	1	1	1
Design of the optical interface for network components or terminal equipment	LC	LC	LC	LC
Wavelength of the optical interface	1 310 nm; Multi-mode	1 310 nm; Single-mode	1 550 nm; Single-mode	1 550 nm; Single-mode
Connectable optical power relative to 1 mW
● of the transmitter output minimum	-19 dB	-15 dB	-5 dB	1 dB
● of the transmitter output maximum	-14 dB	-8 dB	0 dB	5 dB
● of the receiver input maximum	-3 dB	-3 dB	-3 dB	-9 dB
Optical sensitivity relating to 1 mW of the receiver input minimum	-32 dB	-34 dB	-34 dB	-42 dB
Damping ratio of the FOC transmission link minimum necessary	0 dB	0 dB	3 dB	14 dB
Range at the optical interface depending on the optical fiber used	0 ... 5 km	0 ... 26 km	12 ... 70 km	61 ... 200 km
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● Note	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours
Relative humidity at 25 °C without condensation during operation maximum	95 %	95 %	95 %	95 %
Protection class IP	IP20	IP20	IP20	IP20
Design, dimensions and weight
Design	SFP Module	SFP Module	SFP Module	SFP Module
Width	13.7 mm	13.7 mm	13.7 mm	13.7 mm
Height	11.9 mm	11.9 mm	11.9 mm	11.9 mm
Depth	56.5 mm	56.5 mm	56.5 mm	56.5 mm
Net weight	0.01 kg	0.01 kg	0.01 kg	0.01 kg
Mounting type	latched	latched	latched	latched
Standards, specifications, approvals
Standard
● for FM	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4
● for hazardous zone	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X
● for safety from CSA and UL	UL 60950-1, CSA C22.2 No. 60950-1-03	UL 60950-1, CSA C22.2 No. 60950-1-03	UL 60950-1, CSA C22.2 No. 60950-1-03	UL 60950-1, CSA C22.2 No. 60950-1-03
● for emitted interference	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)
● for interference immunity	EN 61000-6-2:2005	EN 61000-6-2:2005	EN 61000-6-2:2005	EN 61000-6-2:2005
Certificate of suitability	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007
● CE marking	Yes	Yes	Yes	Yes
● C-Tick	Yes	Yes	Yes	Yes
● KC approval	No	No	No	No
MTBF at 40 °C	120 y	120 y	120 y	120 y

Order number	6GK5992-1AL00-8AA0	6GK5992-1AM00-8AA0	6GK5992-1AN00-8AA0
Product type designation	SFP992-1	SFP992-1LD	SFP992-1LH
Interfaces
Number of electrical/optical connections for network components or terminal equipment maximum	1	1	1
Number of optical interfaces for network components or terminal equipment maximum	1	1	1
Number of 1000 Mbit/s LC ports for single mode (LD) Integrated		1	1
Number of 1000 Mbit/s LC ports for multimode Integrated	1
Design of the optical interface for network components or terminal equipment	LC	LC	LC
Wavelength of the optical interface	850 nm; Multi-mode	1 310 nm; Single-mode	1 550 nm; Single-mode
Connectable optical power relative to 1 mW
● of the transmitter output minimum	-9.5 dB	-9.5 dB	-6 dB
● of the transmitter output maximum	-4 dB	-3 dB	0 dB
● of the receiver input maximum	-3 dB	-3 dB	-3 dB
Optical sensitivity relating to 1 mW of the receiver input minimum	-17 dB	-21 dB	-23 dB
Damping ratio of the FOC transmission link minimum necessary	0 dB	0 dB	3 dB
Range at the optical interface depending on the optical fiber used	0 ... 0.75 km	0 ... 10 km	8 ... 40 km
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● Note	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours
Relative humidity at 25 °C without condensation during operation maximum	95 %	95 %	95 %
Protection class IP	IP20	IP20	IP20
Design, dimensions and weight
Design	SFP Module	SFP Module	SFP Module
Width	13.7 mm	13.7 mm	13.7 mm
Height	11.9 mm	11.9 mm	11.9 mm
Depth	56.5 mm	56.5 mm	56.5 mm
Net weight	0.01 kg	0.01 kg	0.01 kg
Mounting type	latched	latched	latched
Standards, specifications, approvals
Standard
● for FM	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4
● for hazardous zone	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X
● for safety from CSA and UL	UL 60950-1, CSA C22.2 No. 60950-1-03	UL 60950-1, CSA C22.2 No. 60950-1-03	UL 60950-1, CSA C22.2 No. 60950-1-03
● for emitted interference	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)
● for interference immunity	EN 61000-6-2:2005	EN 61000-6-2:2005	EN 61000-6-2:2005
Certificate of suitability	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007
● CE marking	Yes	Yes	Yes
● C-Tick	Yes	Yes	Yes
● KC approval	No	No	No
MTBF at 40 °C	120 y	120 y	120 y

Order number	6GK5992-1AP00-8AA0	6GK5992-1AQ00-8AA0
Product type designation	SFP992-1LH+	SFP992-1ELH
Interfaces
Number of electrical/optical connections for network components or terminal equipment maximum	1	1
Number of optical interfaces for network components or terminal equipment maximum	1	1
Number of 1000 Mbit/s LC ports for single mode (LD) Integrated	1	1
Design of the optical interface for network components or terminal equipment	LC	LC
Wavelength of the optical interface	1 550 nm; Single-mode	1 550 nm; Single-mode
Connectable optical power relative to 1 mW
● of the transmitter output minimum	0 dB	0 dB
● of the transmitter output maximum	5 dB	5 dB
● of the receiver input maximum	-3 dB	-8 dB
Optical sensitivity relating to 1 mW of the receiver input minimum	-23 dB	-32 dB
Damping ratio of the FOC transmission link minimum necessary	8 dB	8 dB
Range at the optical interface depending on the optical fiber used	30 ... 70 km	37 ... 120 km
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +85 °C	-40 ... +85 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C
● Note	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours
Relative humidity at 25 °C without condensation during operation maximum	95 %	95 %
Protection class IP	IP20	IP20
Design, dimensions and weight
Design	SFP Module	SFP Module
Width	13.7 mm	13.7 mm
Height	11.9 mm	11.9 mm
Depth	56.5 mm	56.5 mm
Net weight	0.01 kg	0.01 kg
Mounting type	latched	latched
Standards, specifications, approvals
Standard
● for FM	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4
● for hazardous zone	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X	EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X
● for safety from CSA and UL	UL 60950-1, CSA C22.2 No. 60950-1-03	UL 60950-1, CSA C22.2 No. 60950-1-03
● for emitted interference	EN 61000-6-4:2007 (Class A)	EN 61000-6-4:2007 (Class A)
● for interference immunity	EN 61000-6-2:2005	EN 61000-6-2:2005
Certificate of suitability	EN 61000-6-2:2005, EN 61000-6-4:2007	EN 61000-6-2:2005, EN 61000-6-4:2007
● CE marking	Yes	Yes
● C-Tick	Yes	Yes
● KC approval	No	No
MTBF at 40 °C	120 y	120 y

Order number	6GK5991-1AB00-8AA0	6GK5991-1AC00-8AA0	6GK5992-1AJ00-8AA0	6GK5992-1AK00-8AA0
Product type designation	STP991-1	STP991-1LD	SCP992-1	SCP992-1LD
Suitability for operation	SCALANCE XM408-4C	SCALANCE XM-408-4C	SCALANCE XM-408-4C	SCALANCE XM-408-4C
Interfaces
Number of electrical/optical connections for network components or terminal equipment maximum	1	1	1	1
Number of optical interfaces for network components or terminal equipment maximum	1	1	1	1
Number of 100 Mbit/s ST(BFOC) ports for multimode Integrated	1	1
Number of 1000 Mbit/s SC ports (LX)				1
Number of 1000 Mbit/s SC ports (SX)			1
Design of the optical interface for network components or terminal equipment	ST/BFOC	ST/BFOC	SC	SC
Wavelength of the optical interface	1 310 nm; Multi-mode	1 310 nm; Single-mode	850 nm; Multi-mode	1 310 nm; Single-mode
Connectable optical power relative to 1 mW
● of the transmitter output minimum	-19 dB	-15 dB	-9.5 dB	-9.5 dB
● of the transmitter output maximum	-14 dB	-8 dB	-4 dB	-3 dB
● of the receiver input maximum	-3 dB	-3 dB	-3 dB	-3 dB
Optical sensitivity relating to 1 mW of the receiver input minimum	-32 dB	-34 dB	-17 dB	-21 dB
Damping ratio of the FOC transmission link minimum necessary	0 dB	0 dB	0 dB	0 dB
Range at the optical interface depending on the optical fiber used	0 ... 5 km	0 ... 26 km	0 ... 0.75 km	0 ... 10 km
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● Note	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours	A maximum ambient operating temperature of +85 °C is permissible for a duration of 16 hours
Relative humidity at 25 °C without condensation during operation maximum	95 %	95 %	95 %	95 %
Protection class IP	IP20	IP20	IP20	IP20
Design, dimensions and weight
Design	Plug-in transceiver	Plug-in transceiver	Plug-in transceiver	Plug-in transceiver
Width	25.4 mm	25.4 mm	25.4 mm	25.4 mm
Height	10.2 mm	10.2 mm	10.2 mm	10.2 mm
Depth	56.5 mm	56.5 mm	56.5 mm	56.5 mm
Net weight	0.06 kg	0.06 kg	0.06 kg	0.06 kg
Mounting type	latched, only with SCALANCE XM408-4C	latched, only with SCALANCE XM408-4C	latched, only with SCALANCE XM408-4C	latched, only with SCALANCE XM408-4C
Standards, specifications, approvals
Standard
● for emitted interference	EN 61000-6-4 (Class A)	EN 61000-6-4 (Class A)	EN 61000-6-4 (Class A)	EN 61000-6-4 (Class A)
● for interference immunity	EN 61000-6-2	EN 61000-6-2	EN 61000-6-2	EN 61000-6-2
Certificate of suitability	EN 61000-6-2, EN 61000-6-4	EN 61000-6-2, EN 61000-6-4	EN 61000-6-2, EN 61000-6-4	EN 61000-6-2, EN 61000-6-4
● CE marking	Yes	Yes	Yes	Yes
● C-Tick	Yes	Yes	Yes	Yes
● KC approval	No	No	No	No
