Port extenders for SCALANCE XM-400 managed

Заказные данные
(3)
Аксессуары
(24)

Информационные материалы

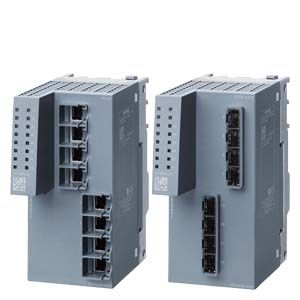

Port extender for flexible expansion to up to 24 ports, can be connected to the SCALANCE XM-400 Industrial Ethernet switches
Each port extender has eight ports
There are three different versions, with different connections

Product versions

PE400-8SFP

8 x SFP slots, 100 or 1000 Mbps
Extended operating temperature range from -40 °C to +60 °C

PE408

8 x 10/100/1000 Mbps RJ45 ports with retaining collar
Extended operating temperature range from -40 °C to +70 °C

PE 408PoE

8 x 10/100/1000 Mbps RJ45 ports with retaining collar with PoE according to IEEE802.3 Type 1 and Type 2
Extended operating temperature range from -40 °C to +60 °C
A separate power supply is required for PoE power (SCALANCE PS924 PoE or SCALANCE PS9230 PoE are available)

Дизайн

Extender connection on the left for connection to a SCALANCE XM-400 basic device or a port extender
Extender connection on the right for connecting another port extender
8 ports for Ethernet connection, different design depending on the version
LEDs to display the port and device status
2 terminal blocks for Power-over-Ethernet supply with 54 V DC input (only PE408PoE)
Operating temperature range from -40 °C to +70 °C
IP20 degree of protection

Особенности

Cost savings due to the modular system. The modular system allows the setup of electrical and optical Industrial Ethernet networks and the network topology and port type to easily be adapted to the plant structure and expanded at any time
Integrated industrial network for data, speech, and video
Mounting of a port extender on the basic device or another port extender without tools
High performance due to Gigabit ports

Технические данные

Order number	6GK5408-0GA00-8AP2	6GK5408-0PA00-8AP2	6GK5400-8AS00-8AP2
Product type designation	SCALANCE PE408	SCALANCE PE408PoE	SCALANCE PE400-8SFP
Transmission rate
Transfer rate	10 Mbit/s, 100 Mbit/s, 1 000 Mbit/s	10 Mbit/s, 100 Mbit/s, 1 000 Mbit/s	100 Mbit/s, 1 000 Mbit/s
Interfaces for communication integrated
Number of electrical connections
● for network components or terminal equipment	8	8
● for Power-over-Ethernet for network components or terminal equipment		8
Number of 10/100/1000 Mbit/s RJ45 ports Integrated
● with securing collar	8
● with securing collar with PoE		8
Number of electrical connections
● for SFP			8
Interfaces for communication pluggable maximum
Number of electrical connections
● for SFP			8
Interfaces others
Type of electrical connection
● for power supply		2-pole terminal block
Number of extender expansion interfaces	2	2	2
Product feature hot-swappable interface modules	Yes	Yes	Yes
Supply voltage, current consumption, power loss
Type of voltage of the supply voltage		DC
Supply voltage
● external		54 V
● external		51.3 ... 56.7 V
Product component fusing at power supply input		Yes
Fuse protection type at input for supply voltage		F 4 A / 60 V
Consumed current maximum	0.2 A	0.2 A	0.07 A
Power loss [W]
● at DC at 24 V	4.8 W	4.8 W	1.7 W
Supplied active power of PSE with PoE
● per port maximum		30 W
● total maximum		180 W
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +70 °C	-40 ... +60 °C	-40 ... +60 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C	-40 ... +85 °C
Relative humidity
● at 25 °C without condensation during operation maximum	95 %	95 %	95 %
Protection class IP	IP20	IP20	IP20
Design, dimensions and weight
Design	SIMATIC S7-1500 device design	SIMATIC S7-1500 device design	SIMATIC S7-1500 device design
Number of modular height units relating to 19-inch cabinet			1
Width	70 mm	70 mm	70 mm
Height	147 mm	147 mm	147 mm
Depth	125 mm	125 mm	125 mm
Net weight	0.6 kg	0.7 kg	0.6 kg
Mounting type
● 19-inch installation	No	No	No
● 35 mm DIN rail mounting	Yes	Yes	Yes
● wall mounting	No	No	No
● S7-300 rail mounting	Yes	Yes	Yes
● S7-1500 rail mounting	Yes	Yes	Yes
Standards, specifications, approvals
Standard
● for FM	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4	FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4
● for hazardous zone	EN 60079-0: 2009, EN60079-15: 2010, II 3 G Ex nA IIC T4 Gc, KEMA 07 ATEX 0145 X, IECEx DEK 14.0025X	EN 60079-0: 2009, EN60079-15: 2010, II 3 G Ex nA IIC T4 Gc, KEMA 07 ATEX 0145 X, IECEx DEK 14.0025X	EN 60079-0: 2009, EN60079-15: 2010, II 3 G Ex nA IIC T4 Gc, KEMA 07 ATEX 0145 X, IECEx DEK 14.0025X
● for safety from CSA and UL	UL 508, UL 60950-1, CSA C22.2 Nr. 60950-1-03	UL 508, UL 60950-1, CSA C22.2 Nr. 60950-1-03	UL 508, UL 60950-1, CSA C22.2 Nr. 60950-1-03
● for hazardous zone from CSA and UL	ISA 12.12.01-2012 (Hazardous Location), Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4	ISA 12.12.01-2012 (Hazardous Location), Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4	ISA 12.12.01-2012 (Hazardous Location), Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4
● for emitted interference	EN 61000-6-4 (Class A)	EN 61000-6-4 (Class A)	EN 61000-6-4 (Class A)
● for interference immunity	EN 61000-6-2	EN 61000-6-2	EN 61000-6-2
Certificate of suitability CE marking	Yes	Yes	Yes
Certificate of suitability	EN 61000-6-2, EN 61000-6-4	EN 61000-6-2, EN 61000-6-4	EN 61000-6-2, EN 61000-6-4
● C-Tick	Yes	Yes	Yes
● Railway application in accordance with EN 50121-4		Yes
● KC approval	Yes	Yes	Yes
Marine classification association
● American Bureau of Shipping Europe Ltd. (ABS)	No	No	No
● Bureau Veritas (BV)	No	No	No
● Det Norske Veritas (DNV)	Yes	Yes	Yes
● Germanische Lloyd (GL)	No	No	No
● Lloyds Register of Shipping (LRS)	Yes	Yes	Yes
● Nippon Kaiji Kyokai (NK)	Yes	Yes	Yes
● Polski Rejestr Statkow (PRS)	Yes	Yes	Yes
● Royal Institution of Naval Architects (RINA)	Yes	Yes	Yes
MTBF at 40 °C	58 y		63 y
