PoE power supplies for SCALANCE XM-400 managed

Заказные данные
(2)

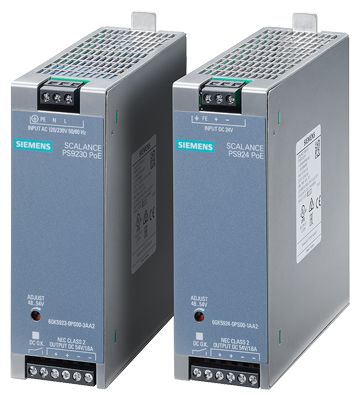

The SCALANCE PS924 PoE and SCALANCE PS9230 PoE power supplies have an output voltage of 54 V DC, which is especially required for PoE (Power-over-Ethernet) according to IEEE 802.3at. With PoE, both data and supply voltage is transmitted from the switch to the connected node via a single cable. Examples of typical nodes, so-called powered devices (PD), are WLAN Access Points, RFID readers, cameras, IP telephones etc.

Both SCALANCE PS924 PoE and SCALANCE PS9230 PoE power supplies can be installed on standard mounting rails and are designed with IP20 degree of protection for use in control cabinets.
They are especially suited for use in demanding environments for an operating temperature range from -40 °C to +70 °C.
The SCALANCE PS924 PoE and SCALANCE PS9230 PoE power supplies are ideal for use in products from the SCALANCE X switch series.
There are versions with 24 V DC or 120/230 V AC input voltages.

Product versions

SCALANCE PS924 PoE Power Supply

Input voltage range from 19-29 V DC
Output voltage 54 V DC
86 Woutput power
Operating temperature from -40 °C to +70 °C
IP20 degree of protection

SCALANCE PS9230 PoE Power Supply

Input voltage range from 85-132/170-264 V AC
Output voltage 54 V DC
86 Woutput power
Operating temperature from -40 °C to +70 °C
IP20 degree of protection

Дизайн

Operating temperatures from -40 °C to +70 °C
Compact design
IP20 degree of protection
For installation on 35 mm DIN mounting rails in control cabinet
LED and signaling contact for status display (DC O.K.)

Интеграция

The SCALANCE PS924 and SCALANCE PS9230 power supplies are ideal for use with expansion module PE408PoE from the SCALANCE XM-400 product series. Two PS-900 power supplies can be connected for each PE408PoE. A PS-900 power supply provides 86 W and can therefore supply up to 4 ports on the PE408PoE. A maximum of 30 W are available at any one port.

Особенности

Reduced cabling overhead since data line used transmit supply voltage as well (Power-over-Ethernet)
High performance provided for connected PDs (up to 30 W)
Flexibility regarding input voltage due to two available versions (24 V DC or 120/230 V AC)
High availability, suitable for use in harsh environments (-40 °C to 70 °C)
Space-saving due to compact construction and installation on the standard mounting rail
Simple installation thanks to classification as current source with limit power (LPS / NEC Class 2)

Технические данные

Order number	6GK5924-0PS00-1AA2	6GK5923-0PS00-3AA2
Product type designation	Power Supply SCALANCE PS9230 PoE	Power Supply SCALANCE PS924 PoE
Type of current supply	Input: DC 24 V, Output: DC 54 V / 1.6 A, NEC CLASS 2	Input: AC 120 / 230 V, Output: DC 54 V / 1.6 A, NEC CLASS 2
Suitability for use	Power supply for PoE	Power supply for PoE
Electrical data Input
Voltage curve at input	DC	AC single phase
Supply voltage Rated value	24 V	230 V
Supply voltage rated value	19.2 ... 28.8 V	85 ... 264 V
Type of voltage of the supply voltage	DC	AC
Consumed current at rated supply voltage maximum	4.1 A	1 A
Design of input wide range input	No	Yes
Overvoltage category		Category II
Buffering time at rated output current in the event of power failure minimum	5 ms	50 ms
Line frequency
● 50 Hz		Yes
● 60 Hz		Yes
● 1 Rated value		50 Hz
● 2 Rated value		60 Hz
Line frequency		47 ... 63 Hz
Input current at rated input voltage 230 V Rated value		1 A
Current limitation of inrush current at 25 °C maximum	10 A	35 A
Fuse protection type at input	Fuse T 15A soldered	Fuse T 3.15A soldered
Electrical data Output
Voltage curve at output	Controlled, isolated DC voltage, adjustable from 48 V to 54 V	Controlled, isolated DC voltage, adjustable from 48 V to 54 V
Output voltage at DC Rated value	54 V	54 V
Display version for normal operation	LED green for DC ok	LED green for DC ok
Behavior of the output voltage when switching on	Overshoot of Ua < 2 %	Overshoot of Ua < 2 %
ON-delay time maximum	1.5 s	1.5 s
Voltage increase time of the output voltage maximum	15 ms	15 ms
Output current
● Rated value	1.6 A	1.6 A
● Rated range	0 ... 1.8 A	0 ... 1.8 A
Supplied active power typical	86 W	86 W
Product feature Parallel switching of channels	No	No
Number of parallel-switched resources for increasing the power	0	0
Efficiency in percent	86 %	89 %
Power loss [W]	14 W	11 W
Electrical data Closed-loop control
Relative overall tolerance of the voltage	1 %	1 %
Residual ripple maximum	0.05 V	0.05 V
Voltage peak maximum	0.2 V	0.2 V
Relative control precision of the output voltage
● On slow fluctuation of input voltage	0.2 %	0.2 %
● On slow fluctuation of ohm loading	0.5 %	0.5 %
● load step of resistive load 50/100/50 % typical	0.5 %	0.5 %
● with rapid fluctuation of the input voltage by +/- 15% typical	0.3 %	0.3 %
Setting time
● load step 50 to 100% typical	0.5 ms	0.5 ms
● load step 100 to 50% typical	0.5 ms	0.5 ms
Electrical data Protection and monitoring
Design of the overvoltage protection at output	< 60 V	< 60 V
Response value current limitation typical	1.7 A	1.7 A
Property of the output Short-circuit proof	Yes	Yes
Design of short-circuit protection	Electronic shutdown, automatic restart	Electronic shutdown, automatic restart
Electrical data Safety
Galvanic isolation between entrance and outlet	Yes	Yes
Galvanic isolation	Safety extra-low output voltage Uout acc. to EN 60950-1	Safety extra-low output voltage Uout acc. to EN 60950-1
Operating resource protection class	Class III	Class I
Leakage current
● maximum	3.5 mA	3.5 mA
● typical	0 mA	2 mA
Interfaces
Number of electrical connections
● for power supply	3	3
● for signaling contact	2	2
Type of electrical connection
● for signaling contact	Screw terminal 0.5 - 2.5 mm²	Screw terminal 0.5 - 2.5 mm²
● at input	FE / + / - screw-type terminal 0,5 - 2,5 mm²	PE / L / N screw-type terminal 0.5 - 2.5 mm²
● at output	2x + / 2x - , screw-type terminal 0.5 - 2.5 mm²	2x + / 2x - , screw-type terminal 0.5 - 2.5 mm²
Signal-Inputs/outputs
Product component Signaling contact	Yes	Yes
Relay design	Normal open contact (N/O)	Normal open contact (N/O)
Operating voltage of the signaling contacts
● at DC Rated value	24 V	24 V
● at DC maximum	60 V	60 V
Operating current of the signaling contacts
● at DC maximum	0.3 A	0.3 A
● at DC at 30 V maximum	0.3 A	0.3 A
Design, dimensions and weight
Width	42 mm	42 mm
Height	125 mm	125 mm
Depth	125 mm	125 mm
Net weight	0.5 kg	0.5 kg
Product feature of the enclosure housing for side-by-side mounting	Yes	Yes
Mounting type
● 19-inch installation	No	No
● wall mounting	No	No
● 35 mm DIN rail mounting	Yes	Yes
● S7-300 rail mounting	No	No
Permitted ambient conditions
Ambient temperature
● during operation	-40 ... +70 °C	-40 ... +70 °C
● during storage	-40 ... +85 °C	-40 ... +85 °C
● during transport	-40 ... +85 °C	-40 ... +85 °C
● Note	Convection	Convection
Relative humidity at 25 °C without condensation during operation maximum	95 %	95 %
Environmental category acc. to IEC 60721	Climate class 3K3, without condensation	Climate class 3K3, without condensation
Protection class IP	IP20	IP20
Standards, specifications, approvals
Standard
● for safety from CSA and UL	cULus listed (UL508, CSA C22.2 No. 107.1)	cULus listed (UL508, CSA C22.2 No. 107.1)
● for emitted interference	EN 61000-6-4: 2007	EN 61000-6-4: 2007
● for interference immunity	EN 61000-6-2	EN 61000-6-2
Certificate of suitability	EN 61000-6-4: 2007	EN 61000-6-4: 2007
● CE marking	Yes	Yes
● C-Tick	Yes	Yes
