SITRANS FUG1010 Gas Check Metering Kit

• Информационные материалы

  Информационные материалы

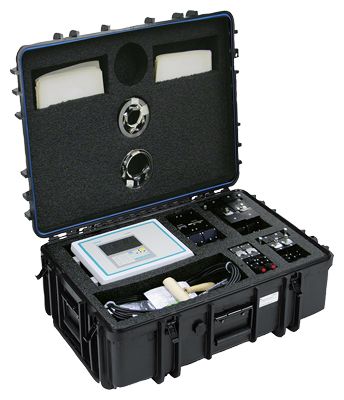

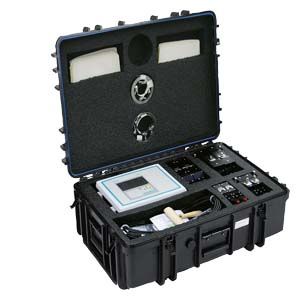

  The clamp-on SITRANS FUG1010 Gas Check Metering Kit is an all-inclusive solution developed especially for verifying the accuracy and performance of any brand or type of flowmeter. The kit is ideal for natural and process gas applications, including check metering, allocation, production, storage and gas fired power station applications. The flowmeter is available with FM/CSA or ATEX approval.

  Область применения

  The SITRANS FUG1010 Gas Check Metering Kit is ideal for most natural and process gas industry applications, including:

  • Check metering
  • Allocation
  • Lost and unaccounted for (LAUF) gas analysis
  • Production
  • Storage

  Дизайн

  • IP65 (NEMA 4X) wall mount enclosure constructed of fiberglass reinforced polyester with stainless steel hardware and polyester keypad
  • Dual channel

  Функции

  • Integral 33 button keypad and large (128 x 240 pixel) graphic display visible up to 12 m (40 ft) away
  • Current, voltage, frequency and RS 232 outputs (see Technical specification section for details)
  • Analog inputs for pressure and temperature
  • Internal AGA-8 table for fixed gas composition is available for standard volume computation
  • Upward compatibility and compliance with AGA-10 speed of sound measurement practice
  • Bi-directional flow operation
  • English, Spanish, German, Italian and French language options

  Особенности

  • Performance check or verification of any type or brand of flow meter
  • WideBeam technology provides improved accuracy over a wide range of flow velocity and operating pressure
  • Tolerant of most wet gas conditions
  • Immune to most pressure reducing valve noise
  • Fast, easy and cost-efficient on-site measurement of any convoluted pipe from 50 ... 1200 mm (2 ... 48") up to 15.7 mm (0.62") pipe wall thickness
  • Delivered as an all inclusive kit in a sturdy rolling case that holds all the equipment needed to conduct performance and verification tests (cables, multiple sensors, transmitter, etc.)

  Технические данные

  Gas Check Metering Kit
  Pipe sizes	50 ... 1200 mm (2 ... 48") up to 15.7 mm (0.62") pipe wall thickness
  Accuracy	± 0.5 % ... 1.0 % of flow rate
  Flow range	30 m/s (100 ft/s) bidirectional
  Media temperature	-40  … +60 °C (-40 … +140 °F
  Enclosure ratings	IP65 (NEMA 4X)
  See page … for complete technical specifications
  Cerificates and approvals
  FM and CSA	Transmitter N-I Class I, Div 2 S Class II, Div 2 Sensor I.S. Class I, II, Div 1
  ATEX
  	Transmitter: Ex II (1) G [Ex ia] IIC Ex II 3 (1) G Ex nC [ia] IIC T5
  	Sensors: Ex II 1 G Ex ia IIC T5
  CE	EMC Directive 2014/30/EU
  	ATEX Directive 2014/34/EU
