SINUMERIK TCU 20.2

Заказные данные
(1)
Аксессуары
(5)

The SINUMERIK Thin Client Unit TCU 20.2 for distributed installation allows operator panel fronts and the SINUMERIK PCU or SINUMERIK NCU to be installed separately. This is made possible by copying the user interface to to one or several operator panel fronts, each with a SINUMERIK TCU 20.2.

Дизайн

The SINUMERIK TCU 20.2 is coupled via Industrial Ethernet as a Thin Client in a dedicated subnet via DHCP server to the SINUMERIK PCU/NCU.

Graphics:

Resolution 640 × 480 to 1024 × 768 pixels
Color depth 16-bit

Interfaces:

3 × USB 2.0 type A for connecting mouse, keyboard and USB flash drive
1 × Industrial Ethernet 10/100/1000 Mbit/s (RJ45 socket)

Функции

Signal transmission between SINUMERIK PCU/NCU and operator panel front via Industrial Ethernet
Easy installation and service-friendly layout thanks to the component structure
Functionality of the SINUMERIK PCU as in centralized configuration, e.g. number of PCI slots. The same operating screen is shown synchronously on all operator panel fronts and can be used from all operator panel fronts. Operator inputs on a Thin Client have equal priority with operator inputs on an operator panel directly connected to the SINUMERIK PCU. The operator panel in passive mode shows a darkened screen.
Operation is possible on the active operator panel. An enabling function permits a passive operator panel to request operation.
The combined operation of operator panel fronts on a SINUMERIK TCU or with an integral TCU and an operator panel front directly connected to the SINUMERIK PCU is possible.
The distance to the operator panel fronts is determined by the maximum distance between two network nodes/access points (100 m/328 ft).

Интеграция

The SINUMERIK TCU 20.2 can be used for:

SINUMERIK 840D sl:
Operator panel fronts OP 010/OP 010C/OP 010S/OP 012/OP 015A
connected to NCU 710.3B PN/NCU 720.3B PN/NCU 730.3B PN

SINUMERIK PCU 50.5 Windows 7

Конфигурация

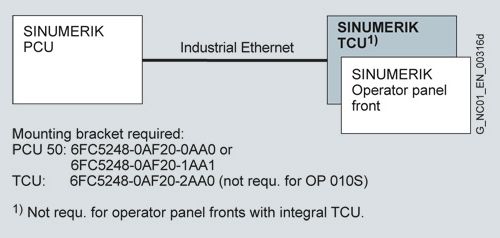

Connection overview for SINUMERIK TCU without central OP on PCU

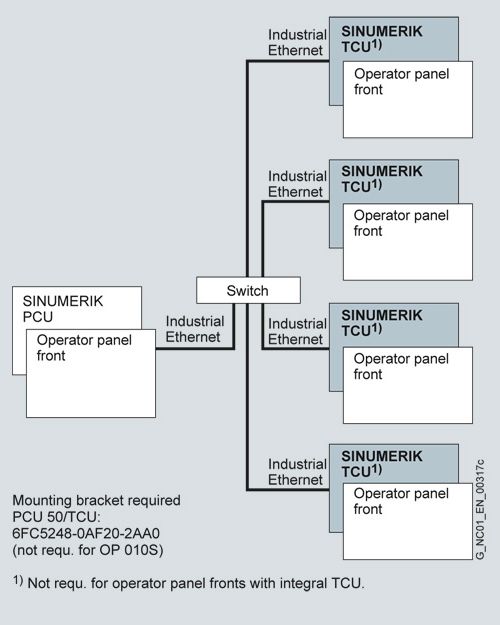

Connection overview for SINUMERIK TCU with central OP on PCU

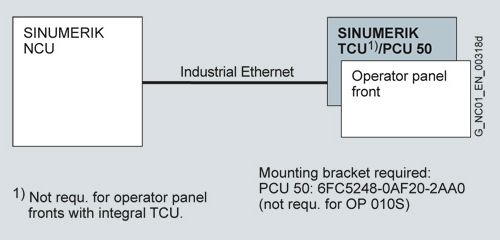

Connection overview for SINUMERIK TCU on NCU

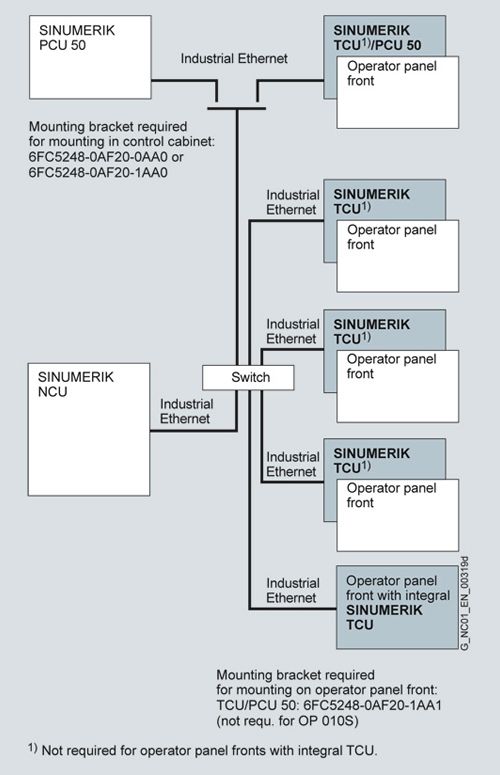

Connection overview for SINUMERIK TCU with several TCUs on NCU

Особенности

Design of flat operator panels through the shallow installation depth and low power dissipation
Low-vibration installation of the SINUMERIK PCU in the control cabinet
Efficient operation of larger machines using up to 5 uniform operator panels simultaneously – of which 4 are Thin Clients
Effective operation of interlinked machines – more than 4 Thin Client operator panels can be connected thanks to suppression mechanism

Технические данные

Order number		6FC5312-0DA00-0AA2
Product brand name		SINUMERIK
Product type designation		TCU 20.2
Product designation		Thin Client Unit
Supply voltage at DC		24 V
Active power consumption maximum		40 W
● Note		TCU with OP 015 and 3 x 0.5 A on USB
Degree of protection		IP20
● note		Mounted
Environmental category acc. to IEC 60721-3-3		Condensation and icing excluded. Low air temperature 0 °C (32 °F).
Relative humidity at 25 °C (77 °F), during
● storage		5 ... 95 %
● transport		5 ... 95 %
● operation		5 ... 95 %
Ambient temperature, during
● storage		-25 ... 55 °C (-13 ... 131 °F)
● transport		-40 ... 70 °C (-40 ... 158 °F)
● operation		0 ... 55 °C (32 ... 131 °F)
Width		260 mm (10.23622 in)
Height		265 mm (10.43307 in)
Depth		34 mm (1.33858 in)
● Note		Without brackets
Net weight		1.96 kg (4.32106 lb)
Certificate of suitability		CE, cULus

Дальнейшая информация

Information on the SIMATIC NET components such as the Industrial Ethernet Electrical Lean Switches SCALANCE and the Industrial Ethernet FC TP Standard/Trailing Cable can be found in the IK PI Catalog or Siemens Industry Mall.

http://www.siemens.com/automation/mall
