SINUMERIK PCU 50.5 Windows 7

• Заказные данные
  (2)
• Аксессуары
  (16)
• Информационные материалы

  Информационные материалы

  The powerful SINUMERIK PCU 50.5 Windows 7 Panel Control Unit provides maximum HMI performance and openness. The PCU 50.5 Windows 7 has all the onboard interfaces required to support communication via Ethernet, leaving the integrated slots free for other tasks.

  The SINUMERIK PCU 50.5 with the Windows 7 operating system is equipped with Ghost data backup software for backing up and restoring data.

  The operating software SINUMERIK Operate can be ordered separately.

  Дизайн

  • Intel Dual Core processor technology
    • SINUMERIK PCU 50.5-C with Windows 7
      Intel Celeron P4505 2M Cache/1.86 GHz/4 GB SDRAM DDR3 ECC/2 MB Cache
    • SINUMERIK PCU 50.5-P with Windows 7
      Intel Core i5-520E 3M Cache/2.4 GHz/8 GB SDRAM DDR3 ECC/3 MB Cache
  • Replaceable 80 GB solid-state drive
  • 20 GB for applications, e.g. SINUMERIK Operate and SINUMERIK Integrate
  • 40 GB for data (part programs, documentation, other data) local backups and the software to be installed
  • Maximum memory configuration 8 GB including graphics memory on 2 memory module slots
  • Integrated 2-D/3-D graphics
    • Dynamic graphics memory (up to 256 MB); the graphics memory is taken from the main memory
  • Windows 7 Ultimate operating system
  • Data backup/restore using the Ghost data backup software

  Interfaces:

  • 2 × Ethernet 10/100/1000 Mbit/s (RJ45 socket)
  • 4 × USB 2.0 type A
  • 1 x COM1 (RS232C)
  • 1 × DVI

  Expansion slots:

  • 1 × PCI-Express ×16 (1 x 185 mm/7.28 In)
  • 1 × PCI (1 × 185 mm/7.28 In)

  Интеграция

  The SINUMERIK PCU 50.5 Windows 7 can be used for:

  • SINUMERIK 840D sl
    with SINUMERIK Operate, software version 4.5 SP2 and higher

  Конфигурация

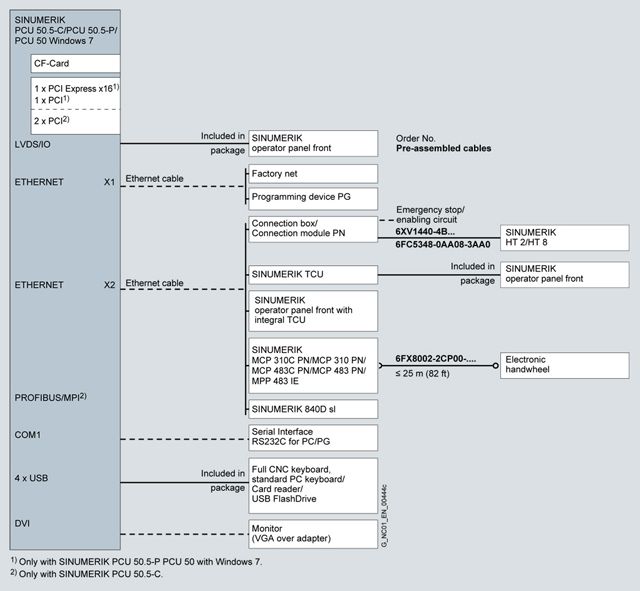

  Connection overview for SINUMERIK PCU 50.5 Windows 7

  Особенности

  • Powerful and energy-efficient thanks to Intel Dual Core processor technology
  • Reliable in operation through the use of error-correcting code RAM and solid-state drive as mass storage, as well as monitoring of temperature, SSD and fan
  • Maximum processor performance up to 55 °C (131 °F) ambient temperature
  • High shock and vibration resistance in all mounting positions
  • Extremely compact design for space-saving installation thanks to compact housing design (6 liter volume)
  • Service-friendly thanks to support of a USB boot device, for booting from USB memory sticks, USB floppy drives or USB hard disks

  Технические данные

  Order number			6FC5210-0DF52-3AA0	6FC5210-0DF53-3AA0
  Product brand name			SINUMERIK	SINUMERIK
  Product type designation			PCU 50.5-C	PCU 50.5-P
  Product designation			Electronic control device	Electronic control device
  Operating system pre-installed			Win7 EmbSys (64 bit)	Win7 EmbSys (64 bit)
  Design of the processor			Intel Celeron P4505 2M Cache	Intel Core i5-520E 3M Cache
  Processor clock frequency		GHz	1.86	2.4
  Storage capacity of main memory 1		Gbyte	4	8
  ● Type of main memory 1			SDRAM DDR3 ECC	SDRAM DDR3 ECC
  Storage capacity of main memory 2		Mbyte	2	3
  ● Type of main memory 2			Cache	Cache
  Supply voltage at DC		V	24	24
  Active power consumption
  ● typical		W	48	48
  ● maximum		W	190	190
  Buffering time in the event of power failure		ms	20	20
  Degree of protection			IP20	IP20
  Environmental category acc. to IEC 60721-3-3			Condensation and icing excluded. Low air temperature 0 °C (32 °F).	Condensation and icing excluded. Low air temperature 0 °C (32 °F).
  Relative humidity at 25 °C (77 °F), during
  ● storage		%	5 ... 95	5 ... 95
  ● transport		%	5 ... 95	5 ... 95
  ● operation		%	5 ... 95	5 ... 95
  Ambient temperature, during
  ● storage		°C (°F)	-20 ... +60 (-4 ... +140)	-20 ... +60 (-4 ... +140)
  ● transport		°C (°F)	-20 ... +60 (-4 ... +140)	-20 ... +60 (-4 ... +140)
  ● operation
  — at max. 15 W additional active power input		°C (°F)	5 ... 55 (41 ... 131)	5 ... 55 (41 ... 131)
  — at max. 25 W additional active power input		°C (°F)	5 ... 50 (41 ... 122)	5 ... 50 (41 ... 122)
  — at max. 30 W additional active power input		°C (°F)	5 ... 45 (41 ... 113)	5 ... 45 (41 ... 113)
  Width		mm (in)	297 (11.69291)	297 (11.69291)
  Height		mm (in)	267 (10.51181)	267 (10.51181)
  Depth		mm (in)	82 (3.22835)	82 (3.22835)
  Net weight		kg (lb)	4.5 (9.9208)	4.5 (9.9208)
  Certificate of suitability			CE, cULus	CE, cULus
