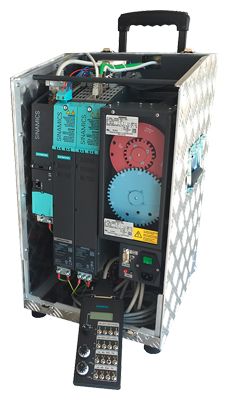

  SINAMICS S120 training case with CU320-2 Control Unit

  The SINAMICS S120 training case is used to teach students to use and understand the SINAMICS S120 drive system. It is suitable for direct customer presentations as well as for tests in technical departments. The SIMOTION D425‑2 DP/PN upgrade kit can be used to convert the SINAMICS S120 training case to a SIMOTION D training case.

  The case is optimized in terms of weight and volume and is assembled complete with castors and ready for connection.
  It contains the following components:

  • SINAMICS CU320‑2 DP or CU320‑2 PN Control Unit with TB30 Terminal Board
  • SINAMICS Smart Line Module 5 kW
  • SINAMICS Double Motor Module 3 A
  • SIMOTICS 1FK7022‑5AK71‑1AG3 synchronous servomotor with incremental encoder sin/cos 1 V_pp via SMC20
  • SIMOTICS 1FK7022‑5AK71‑1LG3 synchronous servomotor with absolute encoder IC2048S/R and DRIVE-CLiQ interface
  • Reference discs for position monitoring
  • Control box for setpoint/actual-value linkage via terminals
  • Prefabricated connections for an external motor (e.g., asynchronous motor)

  The SINAMICS S120 training case is supplied ready-to-use with a demo project on the CompactFlash card and documentation.

  Технические данные

  SINAMICS S120 training case	6ZB2480-0CM00 6ZB2480-0CN00
  Supply voltage	230 V 1 AC 50 Hz
  Degree of protection	IP20
  Dimensions
  Width	320 mm (12.60 in)
  Height	650 mm (25.59 in)
  Depth	330 mm (12.99 in)
  Weight, approx.	30 kg (66.1 lb)
