SITRANS LU180

Заказные данные
(1)

SITRANS LU180 is a short-range integrated ultrasonic level transmitter. This intrinsically safe, 2 wire, 4 to 20 mA loop powered transmitter is ideal for liquids, slurries, and bulk materials in open or closed vessels to 5 m (16.4 ft).

Область применения

The transducer is available in PVDF copolymer, making the device suitable for use in a wide variety of applications. SITRANS LU180 is easy to install and maintain, and can be quickly removed for cleaning as required by the food, beverage and pharmaceutical industries. The reliability of the level data is based on the Sonic Intelligence echo processing algorithms. A filter discriminates between the true echo and false echoes from acoustic or electrical noises and agitator blades in motion. The ultrasonic pulse propagation time to the material and back is temperature compensated and converted into distance for display, analog output.

Key Applications: chemical storage vessels, filter beds, mud pits, liquid storage vessels, food applications

Конфигурация

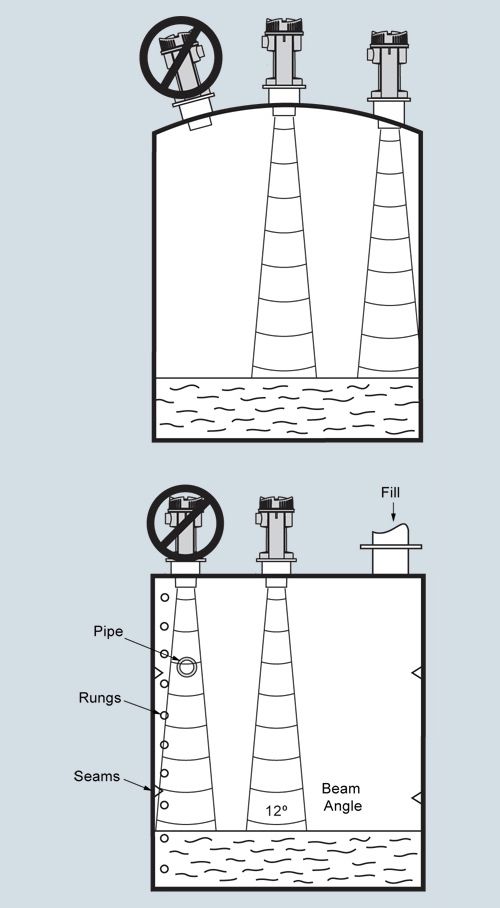

SITRANS LU180 mounting

Чертеж

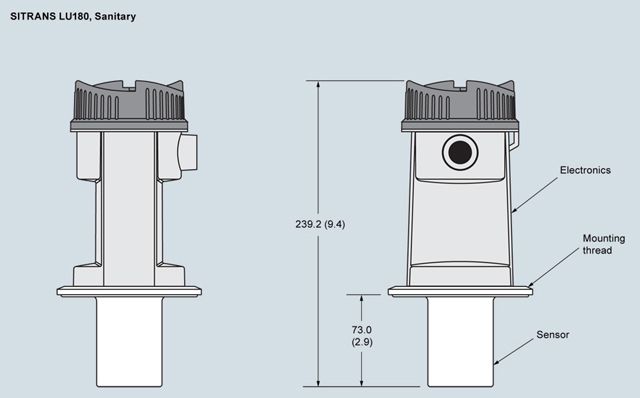

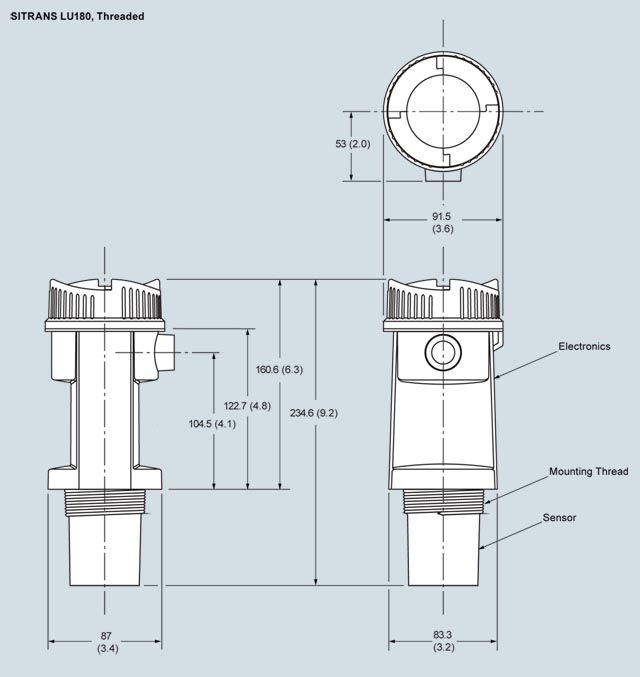

SITRANS LU180, dimensions in mm (inch)

Особенности

Easy to install, program, and maintain
Accurate and reliable
Sanitary models available
Patented Sonic Intelligence echo processing
Integral temperature compensation

Опции

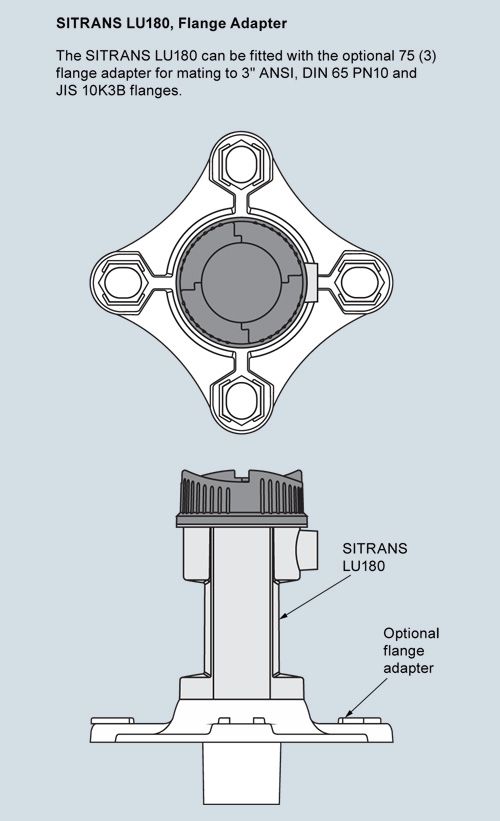

SITRANS LU180 optional flange adapter, dimensions in mm (inch)

Схема подключения

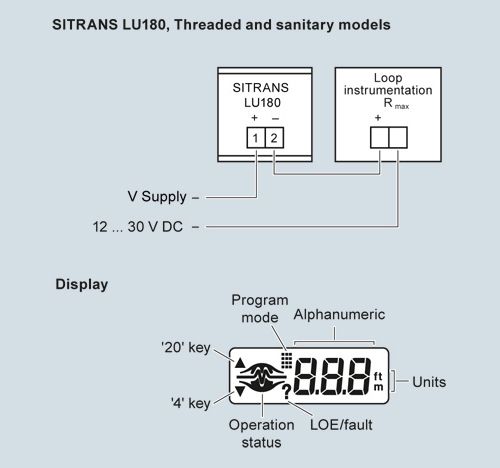

SITRANS LU180 connections

Технические данные

Mode of operation
Measuring principle	Ultrasonic level measurement
Input
Measuring range	0.25 ... 5 m (0.8 ... 16.4 ft)
Frequency	54 kHz
Output
mA	4 ... 20 mA
Span	Proportional/ inversely proportional
Max. load	600 Ω in the loop at 24 V DC
Power supply
Supply voltage	12 ... 30 V DC, 0.1 A surge
Max. power consumption	0.75 W (25 mA at 24 V DC)
Certificates and approvals	CSA: IS/ Class I, II, III, Div. 1, Groups: A, B, C, D, E, F, G T4 FM: IS/ Class I, II, III, Div. 1, Groups: A, B, C, D, E, F, G T4 ATEX: II 1G Ex ia IIC T4 Ga IECEx Ex ia IIC T4 Ga NEPSI Ex ia IIC T4 Ga
Accuracy
Error in measurement	0.25 % of measuring range (in air)
Resolution	3 mm (0.125 inch)
Temperature compensation	Built in
Echo processing	Sonic Intelligence
Rated operation conditions
Beam angle	12°
Ambient temperature
Standard	-40 ... +60 °C (-40 ... +140 °F)
Metallic mounting	-20 ... +60 °C (-4 ... +140 °F)
Max. static operating pressure	Normal atmospheric pressure
Design
Weight	1.3 kg (2.9 lb)
Material
Electronics enclosure	PBT
Transducer	PVDF copolymer
Degree of protection	IP68 / NEMA 6 / TYPE 6
Process connection	2" NPT [(Taper), ANSI/ASME B1.20.1] R 2" [(BSPT), EN 10226] G 2" [(BSPP), EN ISO 228-1] 4" sanitary
Flange adapter	3" Universal, (fits DN 65, PN 10 and 3" ASME)
Cable inlet	1 inlet for M20, optional 1/2" NPT
