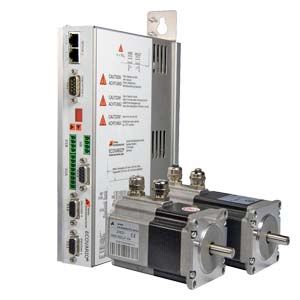

  ECOVARIO 114D – 2-axis servo amplifier with PROFINET

  The 2-axis servo amplifier covers the output power range of up to 1.4 kW and is suitable for the operation of 2- or 3-phase synchronous servomotors, DC motors, EC motors and stepper motors. The safety function "STO" (Safe Torque Off) is already on-board.

  Функции

  • Digital current, speed, and position control for 2 axes with position, speed and torque limiting
  • Digital filter functions effective on resonant loads
  • Parameterisable jerk filters optimize the motion profiles and thus contribute to the longevitiy of the whole machine
  • Short-circuit, voltage, temperature, encoder, tracking error, and I²t monitoring
  • Intelligent control of a holding brake with automatic voltage reduction
  • 10 digital control inputs, 4 digital control outputs
  • UL approbation

  Особенности

  • Compact 2- axis servo controller (70 V DC, 2 × 7.1 A) for highly dynamic applications, e.g. with motors ECOSTEP 17H and 23S of Jenaer Antriebstechnik.
  • ProfiDrive compatible (AK1, AK3, AK4), IRT (Realtime Class 3), cycle times 1 ms, 2 ms and 4 ms
  • Position feedback via incremental encoder: RS422, option SINCOS, 2 encoders per axis possible
  • Position feedback via absolute value encoder: BISS/HIPERFACE interface
  • 2 High-speed capture inputs for fast position capturing

  Дальнейшая информация

  Please contact:

  Jenaer Antriebstechnik GmbH

  Buchaer Straße 1
  07745 JENA
  GERMANY

  Tel.: +49 3641 63376-0
  E-mail: info@jat-gmbh.de

  Internet: http://www.jat-gmbh.de
