SITOP PSU300E, 3-фазный, 24 В DC/5 A

• Заказные данные
  (1)
• Информационные материалы

  Информационные материалы

  3-х фазный блок питания с широким входным диапазоном и током на выходе 5 A, имеет небольшую ширину, увеличенное время поддержания питания, съемные клеммные блоки, релейный выход состояния "24 В OK."

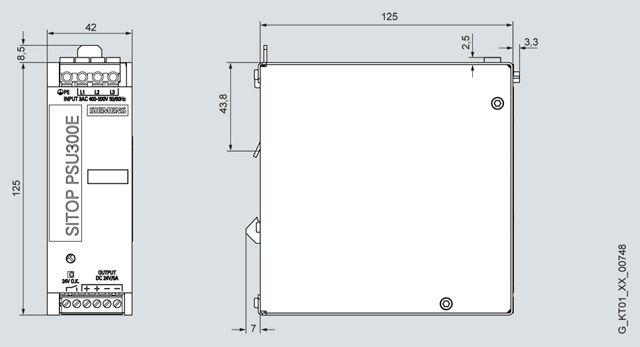

  Чертеж



  Технические данные

  Order number		6EP1433-0AA00
  Product		SITOP PSU300E
  Power supply, type		24 V/5 A
  Input
  Input		3-phase AC
  Rated voltage value Vin rated		400 ... 500 V
  Voltage range AC		320 ... 550 V
  Wide-range input		Yes
  Mains buffering at Iout rated, min.		50 ms; at Vin = 400 V
  Rated line frequency 1		50 Hz
  Rated line frequency 2		60 Hz
  Rated line range		47 ... 63 Hz
  Input current
  ● at rated input voltage 400 V		0.36 A
  ● at rated input voltage 500 V		0.29 A
  Switch-on current limiting (+25 °C), max.		15 A
  I²t, max.		0.9 A²·s
  Built-in incoming fuse		none
  Protection in the mains power input (IEC 898)		Required: 3-pole connected miniature circuit breaker 6 A characteristic B or C or circuit breaker 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489)
  Output
  Output		Controlled, isolated DC voltage
  Rated voltage Vout DC		24 V
  Total tolerance, static ±		3 %
  Static mains compensation, approx.		3 %
  Static load balancing, approx.		3 %
  Residual ripple peak-peak, max.		150 mV
  Residual ripple peak-peak, typ.		35 mV
  Spikes peak-peak, max. (bandwidth: 20 MHz)		240 mV
  Spikes peak-peak, typ. (bandwidth: 20 MHz)		70 mV
  Adjustment range		24 ... 29 V
  Product function Output voltage adjustable		Yes
  Output voltage setting		via potentiometer; max. 120 W
  Status display		Green LED for 24 V OK
  Signaling		Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK"
  On/off behavior		Overshoot of Vout approx. 3 %
  Startup delay, max.		0.5 s
  Voltage rise, typ.		10 ms
  Voltage increase time of the output voltage maximum		100 ms
  Rated current value Iout rated		5 A
  Current range		0 ... 5 A
  Supplied active power typical		120 W
  Short-term overload current
  ● on short-circuiting during the start-up typical		33 A
  ● at short-circuit during operation typical		28 A
  Duration of overloading capability for excess current
  ● on short-circuiting during the start-up		140 ms
  ● at short-circuit during operation		135 ms
  Parallel switching for enhanced performance		No
  Efficiency
  Efficiency at Vout rated, Iout rated, approx.		90 %
  Power loss at Vout rated, Iout rated, approx.		13 W
  Closed-loop control
  Dynamic mains compensation (Vin rated ±15 %), max.		3 %
  Dynamic load smoothing (Iout: 50/100/50 %), Uout ± typ.		5 %
  Load step setting time 50 to 100%, typ.		1 ms
  Load step setting time 100 to 50%, typ.		1 ms
  Dynamic load smoothing (Iout: 10/90/10 %), Uout ± typ.		1 %
  Load step setting time 10 to 90%, typ.		1 ms
  Load step setting time 90 to 10%, typ.		1 ms
  Setting time maximum		30 ms
  Protection and monitoring
  Output overvoltage protection		Yes, according to EN 60950-1
  Current limitation, typ.		11 A
  Property of the output Short-circuit proof		Yes
  Short-circuit protection		Electronic shutdown, automatic restart
  Enduring short circuit current RMS value
  ● maximum		7.5 A
  Safety
  Primary/secondary isolation		Yes
  Galvanic isolation		Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
  Protection class		Class I
  CE mark		Yes
  UL/cUL (CSA) approval		cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
  Explosion protection		-
  FM approval		-
  CB approval		Yes
  Marine approval		-
  Degree of protection (EN 60529)		IP20
  EMC
  Emitted interference		EN 55022 Class A
  Supply harmonics limitation		EN 61000-3-2
  Noise immunity		EN 61000-6-2
  Operating data
  Ambient temperature
  ● during operation		0 ... 60 °C
  — Note		with natural convection
  ● during transport		-40 ... +85 °C
  ● during storage		-40 ... +85 °C
  Humidity class according to EN 60721		Climate class 3K3, no condensation
  Mechanics
  Connection technology		screw-type terminals
  Connections
  ● Supply input		L1, L2, L3, PE: Removable screw terminal for 0.5 ... 2.5 mm² single-core/finely stranded
  ● Output		+, -: 2 screw terminals each for 0.5 ... 2.5 mm²
  ● Auxiliary		13, 14 (alarm signal): 1 screw terminal each for 0.5 ... 2.5 mm²
  Product function
  ● removable terminal at input		Yes
  ● removable terminal at output		Yes
  Width of the enclosure		42 mm
  Height of the enclosure		125 mm
  Depth of the enclosure		125 mm
  Required spacing
  ● top		50 mm
  ● bottom		50 mm
  ● left		0 mm
  ● right		0 mm
  Weight, approx.		0.6 kg
  Product feature of the enclosure housing for side-by-side mounting		Yes
  Installation		Snaps onto DIN rail EN 60715 35x7.5/15
  MTBF at 40 °C		2 389 441 h
  Other information		Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
