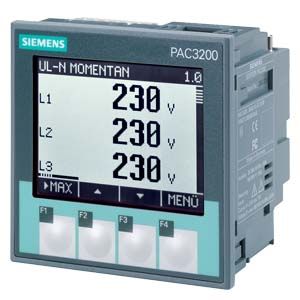

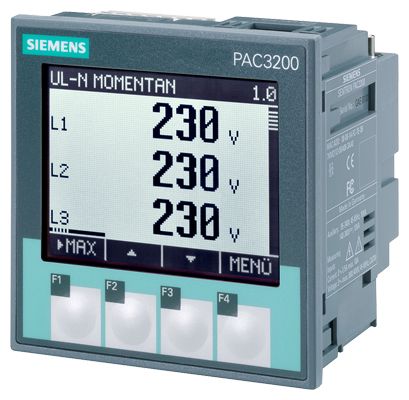

  SENTRON PAC3200 power monitoring device



  SENTRON PAC4200 power monitoring device

  The 7KM PAC power monitoring devices ensure precise, reproducible and reliable measurement of energy values for infeed, outgoing feeders or individual loads. The measuring devices not only supply comprehensive information about your electrical installation and power distribution system, but also provide important measured values to help you assess the status of your system and the power quality. For further processing of the measured data, the devices can easily be integrated into higher-level automation and energy management systems.

  The devices can be used for both single-phase and multi-phase measurements in 3- and 4-conductor power supply systems (TN, TT, IT).

  Особенности

  • Simple mounting and commissioning
  • High IP65 degree of protection (front side, when installed) permits usage in extremely dusty and wet environments
  • Intuitive operation using 4 function buttons and multilingual plain text displays
  • Easy to adapt to different systems using integrated and optional
    • Digital inputs and outputs
    • Communication interfaces
  • Global application
    • At least 8 languages
    • International approvals
    • Developed and tested in accordance with European and international standards
  • Low mounting depth

  Технические данные

  Article No.		7KM2112-0BA00-3AA0	7KM4212-0BA00-3AA0
  Product brand name		SENTRON	SENTRON
  Product order code		PAC3200	PAC4200
  Product designation		Power monitoring device	Power monitoring device
  Type of measured value acquisition		Seamless	Seamless
  Measuring inputs for voltage at 3 AC maximum	V	690/400	690/400
  Wide-range power supply
  At AC	V	95 ... 240	95 ... 240
  At DC	V	110 ... 340	110 ... 340
  Measurable frequency:	Hz	45 ... 65	45 ... 65
  Protection class when mounted		II	II
  Degree of pollution		2	2
  Degree of protection
  front		IP65	IP65
  rear		IP20	IP20
  Relative humidity at 25 °C (77 °F), during operation	%	5 ... 95	5 ... 95
  Ambient temperature, during
  storage	°C (°F)	-25 ... +70 (-13 ... +158)	-25 ... +70 (-13 ... +158)
  transport	°C (°F)	-25 ... +70 (-13 ... +158)	-25 ... +70 (-13 ... +158)
  operation	°C (°F)	-10 ... +55 (14 ... 131)	-10 ... +55 (14 ... 131)
  Width	mm (in)	96 (3.78)	96 (3.78)
  Height	mm (in)	96 (3.78)	96 (3.78)
  Depth	mm (in)	56 (2.20)	82 (3.28)
  Mounting depth	mm (in)	51 (2.01)	77 (3.03)
  Net weight	g (lb)	540 (1.19)	460 (1.01)
  Certificate of suitability		CB, CE, EAC, RCM, UL	CB, CE, EAC, RCM, UL





  Дальнейшая информация

  More information is available in the Siemens Industry Mall or on the Internet at:

  http://www.siemens.com/industrymall

  http://www.siemens.com/lowvoltage/powermonitoring
