  SIMOTICS S-1FL5 feed motors

  The SIMOTICS S-1FL5 feed motor is optimized for operation with the SINAMICS V60 servo drive and provides the dynamic performance required by machine tools.

  Функции

  • 4 motor types with 4 Nm, 6 Nm, 7.7 Nm and 10 Nm
  • Rated speed of 2000 rpm
  • Integrated TTL encoder with 2500 S/R (13 bit resolution through electronic multiplication of the CPM60.1 module)
  • Degree of protection IP54, natural cooling
  • Optional holding brake
  • With plain shaft or feather key, half-key balancing

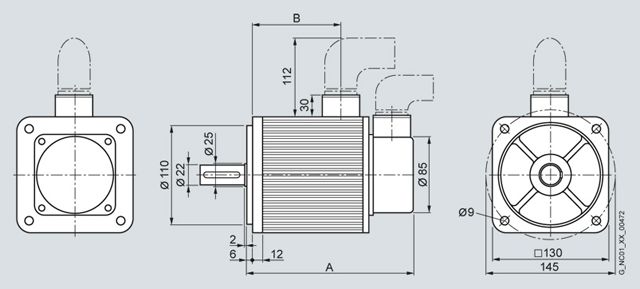

  Чертеж



  SIMOTICS S-1FL5 feed motor

  Motor	Dimensions in mm
  Type	A without brake	A with brake	B
  1FL5060	163	205	80
  1FL5062	181	223	98
  1FL5064	195	237	112
  1FL5066	219	261	136





  Особенности

  • High performance rare earth magnet material
  • Rugged design in IP54 degree of protection and rugged style connectors
  • Maximum flexibility due to variants with/without brake and plain shaft/feather key

  Технические данные

  Article No.	1FL5060-…	1FL5062-…	1FL5064-…	1FL5066-…
  Product brand name	SIMOTICS
  Product type designation	S-1FL5
  Product designation	Feed motors
  Type of motor	Synchronous motor
  Rated speed	2000 rpm
  Encoder	TTL encoder with 2500 S/R
  Infeed	Non-stabilized
  Type of construction in accordance with EN 60034-7 (IEC 60034-7)	IM B5 (IM V1, IM V3)
  Degree of protection in accordance with EN 60034-5 (IEC 60034-5)	IP54
  Cooling	Natural cooling
  Shaft end in accordance with DIN 748-3 (IEC 60072-1)	Plain shaft/Shaft key (C type)
  Paint finish	Black
  Insulation of the stator winding in accordance with EN 60034-1 (IEC 60034-1)	Temperature class 130 (B)
  Ambient temperature
  Storage	-20 ... +80 °C
  Transport	-20 ... +80 °C
  Operation	0 ... 45 °C without derating, > 45 ... 55 °C derating to 70 %
  Torque
  Static torque Mrated	4 Nm	6 Nm	7.7 Nm	10 Nm
  Torque, max. Mmax (converter)	8 Nm	12 Nm	15.4 Nm	20 Nm
  Rated power	0.8 kW	1.2 kW	1.5 kW	2 kW
  Static current	4 A	6 A	7 A	10 A
  Rated speed	2000 rpm	2000 rpm	2000 rpm	2000 rpm
  Efficiency η	91.1 %	93.3 %	92.0 %	93.7 %
  Moment of inertia without brake	11.01 × 10-4 kgm2	15.44 × 10-4 kgm2	20.17 × 10-4 kgm2	25.95 × 10-4 kgm2
  Moment of inertia with brake	12.68 × 10-4 kgm2	17.11 × 10-4 kgm2	21.84 × 10-4 kgm2	27.62 × 10-4 kgm2
  Shaft height	65 mm	65 mm	65 mm	65 mm
  Dimensions
  Edge dimension	130 mm	130 mm	130 mm	130 mm
  Length With brake Without brake	221 mm 263 mm	239 mm 281 mm	253 mm 295 mm	277 mm 319 mm
  Weight Without brake With brake	6 kg 8.6 kg	7.6 kg 10.2 kg	8.6 kg 11.2 kg	10.6 kg 13.2 kg
  Certification of suitability	CE





  S/R = Signals/Revolution
