ION PROFIBUS DP SPY T001

• Заказные данные
  (1)
• Информационные материалы

  Информационные материалы

  The ION PROFIBUS DP SPY T001 is an interface node for recording numerical data which is transferred over PROFIBUS DP between fieldbus nodes:

  • For provision of measured data for further processing in combination with the SIPLUS CMS X‑Tools software (must be ordered separately, see "Analysis Software" → "CMS X‑Tools")
  • Reaction-free connection to PROFIBUS DP
  • For transferring recorded signals to a higher-level industrial PC via IEEE1394a (FireWire) with 400 Mbit/s
  • Mounting on IEC rail

  Дизайн

  Hardware and software requirements

  Hardware:

  • PC with Windows XP Professional (Service Pack 2 recommended)

    • CPU ≥ 2.4 GHz
    • RAM ≥ 512 MB
    • OpenGL-capable graphics card (1024 x 768 pixels and more, 1280 x 1024 pixels or more recommended)
    • IEEE1394, Ethernet and USB interfaces
  • Power supply modules and connecting cables (depending on the SIPLUS CMS4000 components used)

  Software:

  • CMS X‑Tools (Standard or Professional Edition)

  Интеграция

  Network topology

  The IEEE1394a standard makes it possible to build extensive networks with up to 63 nodes. The network topology is that of a bus with branches, but without loops.

  The ION PROFIBUS DP SPY T001 can be networked in a tree or linear bus topology.

  With the tree topology, two further bus nodes are connected to each bus node.



  Tree topology

  With the linear topology, one further bus node is connected to each bus node.



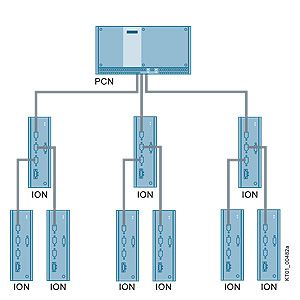

  Linear topology

  A maximum of 63 bus nodes can be connected. The maximum number of hops (point-to-point connections) from one bus node to any other is limited to 15. For this reason, no more than 16 devices may be connected in series.

  Чертеж

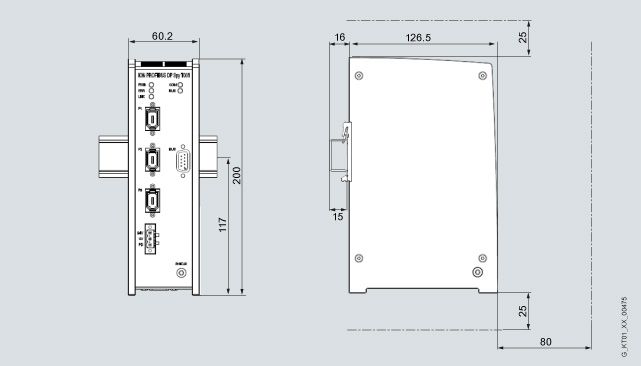

  ION PROFIBUS DP SPY T001

  Технические данные

  Order number		6AT8000-1BA00-5XA0
  		SIPLUS CMS4000 ION PROFIBUS DP SPY T001
  General information
  Product brand name		SIPLUS
  Product designation		ION PROFIBUS DP Spy T001
  Product description		The ION PROFIBUS DP Spy T001 optionally measures numeric data that is exchanged between fieldbus nodes of the PROFIBUS DP fieldbus solution, and transmits this data via the FireWire bus system (IEEE 1394a standard) at 400 Mbps to an upstream industrial PC
  Product function		Bus monitor
  Installation type/mounting
  Mounting type		standard rail
  Required clearance
  ● for side-by-side mounting at the top		25 mm
  ● for side-by-side mounting at the front		80 mm
  ● for side-by-side mounting at the back		25 mm
  Supply voltage
  Type of power supply		stabilized
  Supply voltage (DC)		24 V
  permissible range, lower limit (DC)		18 V
  permissible range, upper limit (DC)		32 V
  Reverse polarity protection		Yes
  Input current
  from external supply (24 V DC), max.		0.25 A
  Power
  Active power input, max.		6 W
  Interfaces
  Number of interfaces		1
  Number of IEEE 1394a interfaces		3
  ● Design of plug-in connection		6-pole socket, standard
  Transmission rate		400 Mbit/s
  PROFIBUS DP
  ● Transmission rate, min.		9.6 kbit/s
  ● Transmission rate, max.		12 Mbit/s
  Protocols
  Protocol		IEEE 1394a
  Bus system usable		PROFIBUS DP
  Degree and class of protection
  IP degree of protection		IP20
  Standards, approvals, certificates
  Certificate of suitability		CE
  Ambient conditions
  Ambient temperature during operation
  ● min.		0 °C
  ● max.		55 °C
  Ambient temperature during storage/transportation
  ● Storage, min.		-25 °C
  ● Storage, max.		85 °C
  ● Transportation, min.		-25 °C
  ● Transportation, max.		85 °C
  Connection method
  Design of electrical connection for the PE conductor		M4 screw with contact washer
  ● Connectable conductor cross-section for PE terminal		2.5 mm²
  Design of plug-in connection		Sub-D socket
  Design of the pin assignment of the inputs		3-pole terminal block
  Mechanics/material
  Material of housing		Aluminum / stainless steel
  Dimensions
  Width		61 mm
  Height		200 mm
  Depth		127 mm
  Width when mounted on DIN rail		61 mm
  Height when mounted on DIN rail		200 mm
  Weights
  Weight (without packaging)		1 kg




  Дальнейшая информация

  For further product details, refer to the "ION PROFIBUS DP SPY T001" Operating Instructions under, http://support.automation.siemens.com/WW/view/en/35434278.
