RF640A, RF642A

• Заказные данные
  (2)
• Аксессуары
  (9)
• Информационные материалы

  Информационные материалы

  The SIMATIC RF640A/RF642A are rugged and compact antennas for industrial applications in production and logistics.

  • The SIMATIC RF640A is a universal antenna for numerous applications. They are used, in particular, in applications where transponders in widely varying orientations have to be detected.
  • The SIMATIC RF642A is, with its linear polarization, particularly suitable for severely metallic environments.

  Both antennas can be used in Europe, the United States and China (broadband) and with the readers of the SIMATIC RF600 range.

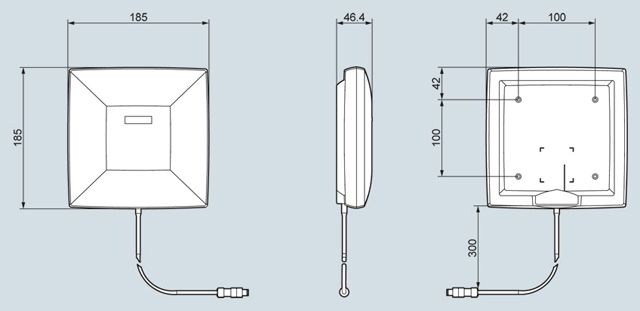

  Чертеж



  SIMATIC RF640A, RF642A antennas

  Технические данные

  Order number		6GT2812-0GA08	6GT2812-1GA08
  Product type designation		Antenna RF640A	Antenna RF642A
  Suitability for operation		SIMATIC RF600	SIMATIC RF600
  Wireless frequencies
  Transmission frequency		865 ... 928 MHz	865 ... 928 MHz
  Electrical data
  Impedance		50 Ω	50 Ω
  Polarization		Circular	Linear
  Antenna gain compared to spherical radiator
  ● with linear radiation			6 dB
  ● with circular radiation		4 dB
  Standing wave ratio (VSWR) maximum		1.5	1.5
  Radiating angle of the antenna
  ● horizontal		80°	75°
  ● vertical		75°	70°
  Type of electrical connection of the antenna		RP-TNC	RP-TNC
  Design of plug-in connection		male	male
  Mechanical data
  Material		PA 12	PA 12
  Color		Pastel turquoise	Pastel turquoise
  Tightening torque of the screw for securing the equipment maximum		2 N·m	2 N·m
  Mounting distance
  ● relating to metal surfaces recommended minimum		0 m	0 m
  Permitted ambient conditions
  Ambient temperature
  ● during operation		-25 ... +75 °C	-25 ... +75 °C
  ● during storage		-40 ... +85 °C	-40 ... +85 °C
  ● during transport		-40 ... +85 °C	-40 ... +85 °C
  Protection class IP		IP65	IP65
  Shock resistance		according to EN 60068-2-27	according to EN 60068-2-27
  Shock acceleration		300 m/s²	300 m/s²
  Vibrational acceleration		100 m/s²	100 m/s²
  Design, dimensions and weight
  Width		185 mm	185 mm
  Height		185 mm	185 mm
  Depth		45 mm	45 mm
  Net weight		600 g	600 g
  Mounting type		4 screws M4 according to VESA 100, optional with articulated bracket by using antenna mounting kit	4 screws M4 according to VESA 100, optional with articulated bracket by using antenna mounting kit
  Cable length of antenna cable		0 m	0 m
  Product properties, functions, components general
  Product feature silicon-free		Yes	Yes
  Standards, specifications, approvals
  Certificate of suitability		CE (according to R&TTE), FCC (Title 47, Part 15.247), cULus	CE (according to R&TTE), FCC (Title 47, Part 15.247), cULus
  Accessories
  accessories		Antenna cables 1 to 40 m	Antenna cables 1 to 40 m
