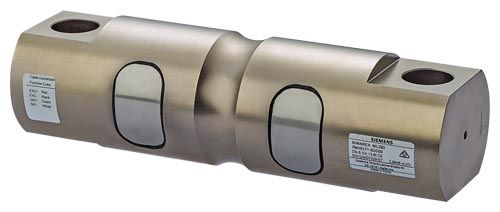

  The SIWAREX WL290 DB-S CA double shear beam load cell is made of nickel-plated specialty steel.

  WL290 DB-S CA load cells are especially suited for large platform and hopper scales. A special mounting unit makes them particularly suitable for assembling scales in vehicles. The double shear beam load cell is installed without oscillation or elastomer force-transmitting mechanisms since transverse forces do not result in the otherwise usual oscillating or deflection effects in the load cell.

  Load cells are legal-for-trade according to OIML R60. They are available in accuracy class C3.

  Дизайн

  The measuring element is a spring body made of special steel. Due to the galvanic coating of nickel and the IP67 degree of protection it is suitable for use in harsh environments.

  Чертеж

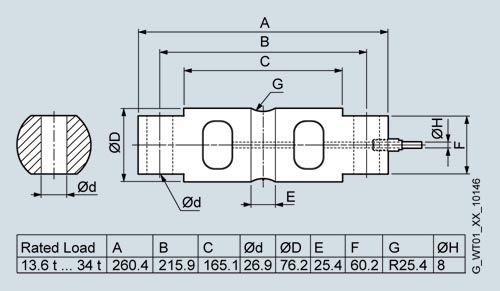

  SIWAREX WL290 DB-S CA load cell (dimensions in mm)

  A	B	C	d	D	E	F	G	H
  260.4	215.9	165.1	26.9	76.2	25.4	60.2	25.4	8





  Технические данные

  SIWAREX WL290 DB-S CA
  Possible applications	Platform scales, hopper scales, vehicle scales
  Model	Double shear beam
  Rated load/maximum load Emax.	13.6 t (13.39 tn. l.) 18.1 t (17.81 tn. l.) 22.6 t (22.24 tn. l.) 27.2 t (26.77 tn. l.) 34 t (33.46 tn. l.)
  Accuracy class according to OIML R60	C3
  Max. load cell verification intervals nLC	3 000
  Min. scale interval Vmin	Emax/10 000
  Combined error Fcomb	≤ ± 0.023 % Cn
  Min. dead load Emin	0 kg
  Safe load limit Lu	150 % Emax
  Ultimate load Ld	300 % Emax
  Recommended supply voltage	5 … 12 V DC
  Maximum supply voltage	18 V DC
  Rated characteristic value Cn	3.0 ± 0.008 mV/V
  Tolerance Do of zero signal	≤ ± 1.0 % Cn
  Creep error 30 min Fcr	≤ ± 0.015 % Cn
  Input resistance Re	700 ± 7 Ω
  Output resistance Ra	703 Ω ± 4 Ω
  Insulation resistance Ris	≥ 5 000 MΩ at 50 V DC
  Rated temperature range Btn	-10 … +40 °C (14 ... 104 °F)
  Operating temperature range Btu	-35 … +60 °C (-31 ... 140 °F)
  Storage temperature range Bts	-40 … +80 °C (-40 ... 176 °F)
  Sensor material (DIN)	Steel, nickel-plated
  Degree of protection according to EN 60529; IEC 60529	IP67
  Cable connection
  Length of the connecting cable (four-core)	9 m (30 ft)
  Diameter of the connecting cable	8 mm
  Color coding of the connecting cable	Color
  EXC +	Red
  EXC -	Black
  SIG +	Green
  SIG -	White
  Shield (not connected to the load cell body)	Transparent
  ATEX	-
