IE RJ45 Port Lock

• Заказные данные
  (1)
• Информационные материалы

  Информационные материалы

  • Protection against misuse of unused RJ45 ports on data terminal equipment and network components – even in the case of unconfigurable network nodes
  • Unambiguous identification of inaccessible ports through mechanical Port Lock
  • Rugged, industry-compatible design
  • Simple installation without additional tools thanks to RJ45-compatible design
  • Use in devices with and without retaining collar possible

  Область применения

  The RJ45 Port Lock enables mechanical closing of RJ45 ports on data terminal equipment or network components. Thanks to the plug-in and rugged design of the Port Lock, the RJ45 interface is fully occupied as if by a plug-in connector, thus preventing RJ45 cables from being plugged in. Use of this Port Lock prevents undesired use of unassigned RJ45 ports, even on unconfigurable network components.



  Дизайн

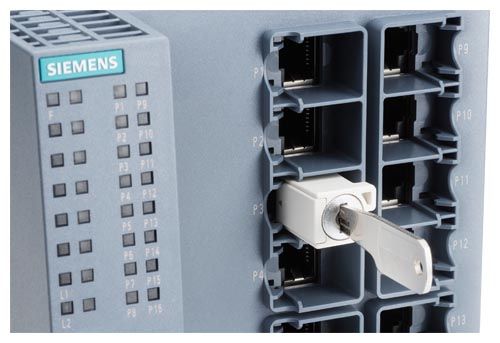

  The RJ45 Port Lock comprises a rugged plastic housing in the form of an RJ45 connector with integrated lock. The key, included in the scope of delivery, enables locking and unlocking of the Port Lock.

  Функции

  The IE RJ45 Port Lock enables mechanical closing of unused RJ45 ports on network components and data terminal equipment. The RJ45 Port Lock has the shape of an RJ45 connector, and when used in an RJ45 socket it prevents the unintentional plugging in of RJ45 cables. The latch of the RJ45 Port Lock is blocked with the integrated lock that can only be locked and unlocked with a mechanical key. The Port Lock can thus only be removed after unlocking with a mechanical key. The RJ45 Port Lock can be used on devices with and without retaining collars.

  Особенности



  • Fast and simple prevention of misuse of unassigned RJ45 ports
  • Ideal solution for protecting against unauthorized use of unconfigurable network components
  • Time-saving and easy installation thanks to locking with integrated lock
  • Interference-immune, rugged design
  • Temporary network disconnections (plant standstill for repair) can thus be implemented directly on-site

  Технические данные

  Order number		6GK1901-1BB50-0AA0
  Product type designation		IE RJ45 Port Lock
  Product description		RJ45 port lock
  Suitability for use		for mechanical closing of unused RJ45 ports
  Interfaces
  Number of electrical connections
  ● for Industrial Ethernet FC TP cables		0
  ● for network components or terminal equipment		1
  Type of electrical connection
  ● for network components or terminal equipment		RJ45 connector
  Type of electrical connection FastConnect		No
  Mechanical data
  Material of the enclosure		plastic
  Design, dimensions and weight
  Type of cable outlet		180° cable outlet
  Width		11.7 mm
  Height		15.6 mm
  Depth		32.2 mm
  Net weight		0.01 g
  Permitted ambient conditions
  Protection class IP		IP20
  Product properties, functions, components general
  Product feature
  ● PoE capability		No
  ● PoE+capability		No
  ● silicon-free		Yes
  Product component
  ● strain relief		No
  Standards, specifications, approvals
  Certificate of suitability
  ● RoHS conformity		Yes
  ● UL approval		No
  ● cULus approval		No
  ● Railway application in accordance with EN 50155		No
