SIPLUS extreme RAIL Basic Panels (1st Generation)

• Заказные данные
  (1)
• Информационные материалы

  Информационные материалы

  • Basic Panel 3.6 inches for operating and monitoring compact machines and systems
  • Approved in accordance with the railway standards EN 50155, EN 15121, EN 50124, EN 50125 and EN 45545 for use in rail traffic
  • Clear process representation through the use of full-graphic displays
  • Intuitive operation via touch and tactile function keys
  • Equipped with all the necessary basic functions such as reporting, recipe management, curve representation, vector graphics, and language selection
  • Easy connection to the controller via integrated Ethernet interface

  Область применения

  The SIMATIC HMI Basic Panels can be used wherever compact machines and plants are controlled and monitored locally.

  Дизайн

  The SIMATIC HMI Basic Panels are installation-compatible with the existing touch devices of the product family of Panels and Multi Panels.

  KP300 Basic mono PN

  • 3.6" FSTN pixel graphics, monochrome
  • 1 Ethernet interface (TCP/IP, PROFINET)
  • Touch device with 10 function keys and 10 system keys
  • Innovative successor to the Text Displays (TD 100C, TD 200/TD 200C, TD 400C) as well as the OP 73 and OP 73micro

  Функции

  • Input/output fields
    for displaying and modifying process parameters
  • Buttons
    are used for direct triggering of functions and actions. Up to 16 functions can be configured simultaneously on buttons.
  • Graphics
    can be used as icons instead of text to "label" function keys or buttons. They can also be used as full-screen background images.
    The configuration tool contains a library with extensive graphics and diverse objects. All editors with an OLE interface (such as PaintShop, Designer or CorelDraw) can be used as graphics editors
  • Vector graphics
    Simple geometric basic forms (line, circle and rectangle) can be created direct in the configuring tool
  • Predefined texts
    for labeling function keys, process pictures and process values in different font sizes
  • Curve functions and bars
    are used for graphical display of dynamic values
  • Language switching:

    • 5 online languages, 32 configuration languages incl. Asian and Cyrillic character sets
    • Language-dependent texts and graphics
  • User administration (security) in accordance with the requirements of the different industries

    • Authentication with user ID and password
    • User-group-specific rights
  • Alarm logging system

    • Discrete messages
    • Analog messages
    • Freely-definable message classes (e.g. status/fault messages) for definition of acknowledgment response and display of message events
    • Message history
  • Recipe management
  • Help texts
    for process screens, messages and variables
  • Arithmetic functions
  • Limit value monitoring
    for reliable process control of inputs and outputs
  • Indicator light
    for indicating machine and plant statuses
  • Scheduler for global function execution in case of global events
  • Template concept for creation of screen templates (screen elements configured in the template appear in every screen)
  • Simple maintenance and configuration thanks to

    • Backup/restore of configuration, operating system and firmware on/from a PC using ProSave
    • Configuration download via MPI/PROFIBUS DP or PROFINET
    • Automatic transfer detection
    • Individual contrast or brightness setting (except 6" color) and calibration
    • Clean screen
    • No battery required

  Configuration

  The configuration is implemented using the engineering software SIMATIC WinCC Basic, Comfort, Professional or SIMATIC STEP 7 Basic (with integrated WinCC Basic).

  Интеграция

  The Basic Panels can be connected to:

  • SIMATIC S7 controllers
  • Non-Siemens controllers (applies for DP devices)
    • Allen Bradley DF1
    • Modicon Modbus RTU
    • Mitsubishi FX
    • Omron Hostlink/Multilink
  • Non-Siemens controllers (non-Siemens drivers for PN devices)
    • Allen Bradley Ethernet/IP
    • Modicon Modbus TCP/IP
    • Mitsubishi MC TCP/IP

  Note:

  For further information, see "System interfaces".

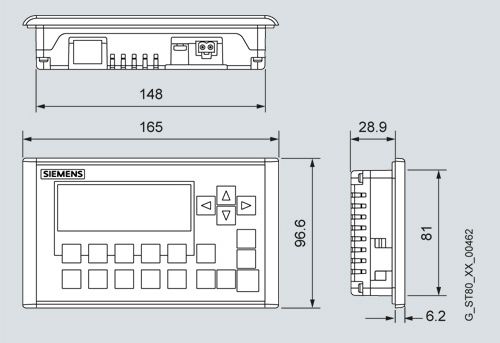

  Чертеж

  All dimensions in mm. For installation cutout, see technical specifications.



  KP300 Basic

  Особенности

  • An integral component of Totally Integrated Automation (TIA):
    Increased productivity, minimum engineering overhead, reduction in life-cycle costs
    • Short configuring and commissioning times
    • Service-friendly thanks to maintenance-free design and long service life of the backlighting display
  • Simple and user-friendly representation of process values thanks to, for example, input/output fields, vector graphics, trend curves, bar charts, text and bitmaps
  • Graphics library available with off-the-shelf picture objects
  • Can be used worldwide:
    • 32 languages can be configured (incl. Asian and Cyrillic character sets)
    • You can switch between up to 5 languages online
    • Language-dependent texts and graphics

  Технические данные

  Order number		6AG2647-0AH11-1AX0
  		SIPLUS HMI KP300 BASIC MONO 3,6" T1 RAIL
  General information
  Product type designation		SIPLUS HMI KP300 BASIC MONO 3.6" T1 RAIL
  Display
  Design of display		FSTN
  Screen diagonal		3.6 in
  Number of colors		4; Backlit display only (white, red, green, yellow)
  Resolution (pixels)
  ● Horizontal image resolution		240 Pixel
  ● Vertical image resolution		80 Pixel
  Backlighting
  ● MTBF backlighting (at 25 °C)		50 000 h
  ● Backlight dimmable		No
  Control elements
  Keyboard fonts
  ● Function keys
  — Number of function keys		10
  Touch operation
  ● Design as touch screen		No
  Installation type/mounting
  Mounting in portrait format possible		No
  Supply voltage
  Type of supply voltage		DC
  Rated value (DC)		24 V
  Memory
  Memory available for user data		1 Mbyte
  Type of output
  Acoustics
  ● Buzzer		No
  Time of day
  Clock
  ● Software clock		Yes
  ● retentive		No
  ● synchronizable		Yes
  Interfaces
  Number of industrial Ethernet interfaces		1
  Number of RS 485 interfaces		0
  Number of USB interfaces		0
  Number of SD card slots		0
  Protocols
  PROFINET		Yes
  IRT		No
  PROFIBUS		No
  MPI		No
  Isolation
  Isolation tested with		707 V DC (type test) and according to EN 50155 (routine test)
  Degree and class of protection
  IP (at the front)		IP65
  Enclosure Type 4x at the front		Yes
  IP (rear)		IP20
  Standards, approvals, certificates
  Railway application
  ● EN 50121-3-2		Yes; EMC for rail vehicles
  ● EN 50121-4		Yes; EMC for signal and telecommunications systems
  ● EN 50124-1		Yes; Railway applications - overvoltage category OV2; pollution degree PD2; rated surge voltage UNi = 0.5 kV; UNm = 24 V DC
  ● EN 50125-1		Yes; Rail vehicles - see ambient conditions
  ● EN 50125-2		Yes; Stationary electrical equipment - see ambient conditions
  ● EN 50125-3		Yes; Signal and telecommunications systems - see ambient conditions; vibrations and shocks: Application point outside of tracks (1 m to 3 m away from track)
  ● EN 50155		Yes; Rail vehicles - temperature class T1, horizontal mounting position, salt spray Class ST2
  ● EN 61373		Yes; Rail vehicles - vibrations and shocks: Category 1 Class A/B
  ● Fire protection acc. to EN 45545-2		Yes; Rail vehicles - verification on request
  Extended ambient conditions
  ● relative to ambient temperature-atmospheric pressure-installation altitude		Tmin ... Tmax at 1080 hPa ... 795 hPa (-1000 m ... +2000 m)
  Relative humidity
  — With condensation, tested in accordance with IEC 60068-2-38, max.		100 %; RH incl. condensation/frost (no commissioning under condensation conditions)
  Resistance
  — against biologically active substances / conformity with EN 60721-3-3		Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna). The supplied connector covers must remain on the unused interfaces during operation!
  — against biologically active substances/conformity with EN 60721-3-5		Yes; Class 5B2 mold and fungal spores (excluding fauna). The supplied plug covers must remain in place over the unused interfaces during operation!
  — against chemically active substances / conformity with EN 60721-3-3		Yes; Class 3C4 (RH < 75%) incl. salt spray according to EN 60068-2-52 (degree of severity 3). The supplied connector covers must remain on the unused interfaces during operation!
  — against chemically active substances/conformity with EN 60721-3-5		Yes; Class 5C3 (RH < 75%) including salt spray according to EN 50155 (ST2). The supplied plug covers must remain in place over the unused interfaces during operation!
  — against mechanically active substances / conformity with EN 60721-3-3		Yes; Class 3S4 incl. sand, dust. The supplied connector covers must remain on the unused interfaces during operation!
  — against mechanically active substances/conformity with EN 60721-3-5		Yes; Class 5S3 including sand and dust. The supplied plug covers must remain in place over the unused interfaces during operation!
  Configuration
  Configuration software
  ● STEP 7 Basic (TIA Portal)		Yes; via integrated WinCC Basic (TIA Portal)
  ● WinCC flexible Compact		No
  ● WinCC Basic (TIA Portal)		Yes
  Languages
  Online languages
  ● Number of online/runtime languages		5
  Functionality under WinCC (TIA Portal)
  Task planner
  ● time-controlled		No
  ● task-controlled		Yes
  Message system
  ● Bit messages
  — Number of bit messages		200
  ● Analog messages
  — Number of analog messages		15
  ● Message buffer
  — Number of entries		256
  — Circulating buffer		Yes
  — retentive		Yes
  Recipe management
  ● Number of recipes		5
  ● Size of internal recipe memory		40 kbyte
  ● Recipe memory expandable		No
  Variables
  ● Number of variables per device		250
  ● Number of variables per screen		30
  Images
  ● Number of configurable images		50
  Archiving
  ● Number of archives per device		0
  Security
  ● Number of user groups		50
  ● Number of users		50
  ● SIMATIC Logon		No
  Transfer (upload/download)
  ● MPI/PROFIBUS DP		No
  ● Ethernet		Yes
  Process coupling
  ● S7-1200		Yes
  ● S7-1500		Yes
  ● S7-200		Yes
  ● S7-300/400		Yes
  ● LOGO!		Yes
  ● WinAC		Yes
  ● SIMOTION		No
  ● Allen Bradley (EtherNet/IP)		Yes
  ● Allen Bradley (DF1)		No
  ● Mitsubishi (MC TCP/IP)		Yes
  ● Mitsubishi (FX)		No
  ● OMRON (FINS TCP)		No
  ● OMRON (LINK/Multilink)		No
  ● Modicon (Modbus TCP/IP)		Yes
  ● Modicon (Modbus)		No
  Peripherals/Options
  Peripherals
  ● Printer		No
  ● SIMATIC HMI MM memory card: Multi Media Card		No
  ● SIMATIC HMI SD memory card: Secure Digital memory card		No
  ● USB memory		No
  Mechanics/material
  Enclosure material (front)
  ● Plastic		Yes
  Dimensions
  Width of the housing front		165 mm
  Height of housing front		97 mm
  Mounting cutout, width		149 mm
  Mounting cutout, height		82 mm
  Overall depth		30 mm
  Weights
  Weight without packaging		0.25 kg
  Other
  Note:		For use in railway applications, also observe the product information "SIPLUS extreme RAIL" A5E37661960A Online Support article 109736776




  Дальнейшая информация

  Additional information is available in the Internet under:

  http://www.siemens.com/simatic-basic-panels

  Note

  Do you require a specific modification to or supplement for the products described here? Look under "Customized products". We provide information there about additional and generally available sector products, and about the customer-specific modification and adaptation options.
