SITRANS I200, output isolator

• Заказные данные
  (1)
• Аксессуары
  (2)
• Информационные материалы

  Информационные материалы



  Analog output 0/4 to 20 mA

  The output isolators are used for intrinsically-safe operation of valve positioners, i/p converters or indicators.

  Operation of intrinsically-safe HART valve positioners (e.g. SIPART PS2) is also possible. The units transfer a superimposed HART communication signal bidirectionally.

  Дизайн

  The isolating transformer HART consists of a compact plastic housing (IP30) and is equipped with push-in screw terminals.

  On the front are a green LED for indicating the power supply status and a red LED for signaling errors.

  The auxiliary power supply can be connected individually using push-in screw terminals or jointly for up to 40 units using pac-Bus.

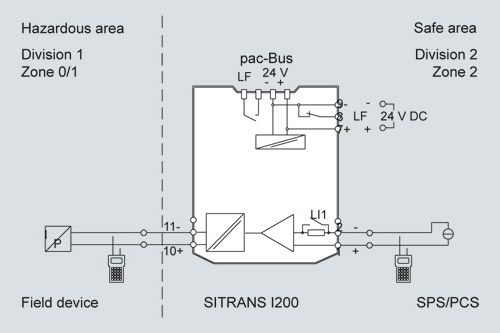

  SITRANS I200 output isolator, function block diagram

  Чертеж



  SITRANS I200 output isolator with HART, dimensions in mm (inch)

  Особенности

  • For HART output signals 0/4 to 20 mA
  • Intrinsically safe output [Ex ia] IIC
  • Electrical isolation between input, output and auxiliary power
  • Open-circuit and short-circuit monitoring and messaging (can be switched off)
  • Installation possible in Zone 2 and Div. 2
  • Can be used up to SIL 2 (IEC 61508)

  	Zones
  	0	1	2	20	21	22
  Ex i interfaces	X	X	X	X	X	X
  Installation in			X			X

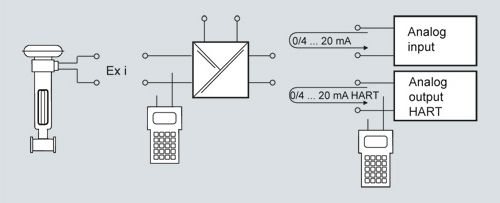

  Схема подключения



  SITRANS I200 output isolator with HART, connection diagram

  Технические данные

  SITRANS I200 output isolator with HART
  Input
  Input signal	0/4 ... 20 mA with HART
  Functional range	0 ... 24 mA
  Max. input current	50 mA
  Input resistance (changeable switch LI)	225 Ω/550 Ω
  Communication signal	Bidirectional HART transmission, 0.5 kHz ... 30 kHz
  Ex i output
  Output signal	0/4 ... 20 mA with HART
  Connectable load resistance	0 ... 800 Ω
  Min. load resistance for short-circuit monitoring	150 Ω
  Residual ripple	≤ 50 mV
  No-load voltage	≤ 25.6 V
  Response time (10% ... 90%)	≤ 100 μs
  Transmission characteristics Input/output	1:1 (0 ... 20 mA --> 0 ... 20 mA, 4 ... 20 mA --> 4 ... 20 mA)
  Measuring accuracy Accuracy, typical data expressed as % of calibrated span at UN, 23 °C
  Linearity error	≤ 0.1%
  Offset error	≤ 0.1%
  Temperature influence	≤ 0.1%/10 K
  Power supply effect within voltage range	≤ 0.01%
  Load resistance effect	≤ 0.02%
  Rated conditions
  Degree of protection of enclosure	IP30
  Degree of protection of terminals	IP20
  Ambient conditions
  Ambient temperature	-20 °C ... +70 °C (-4 ... +158 °F) (see "Operating instructions")
  Storage temperature	-40 °C ... +80 °C (-40 ... +176 °F)
  Relative humidity (no condensation)	≤ 95%
  Electromagnetic compatibility	Tested under the following standards and regulations: EN 61326-1 Use in the industrial environment
  Design
  Screw terminals
  One-wire connection
  Rigid	0.2 ... 2.5 mm2 (0.00031 ... 0.0039 in2)
  Flexible	0.2 ... 2.5 mm2 (0.00031 ... 0.0039 in2)
  Flexible with end ferrules (without/with plastic ferrule)	0.25 ... 2.5 mm2 (0.00039 ... 0.0039 in2)
  Two-wire connection
  Rigid	0.2 ... 1 mm2 (0.00031 ... 0.00155 in2)
  Flexible	0.2 ... 1.5 mm2 (0.00031 ... 0.0023 in2)
  Flexible with end ferrules	0.25 ... 1 mm2 (0.00039 ... 0.00155 in2)
  Weight	Approx. 160 g (0.35 lb)
  Type of installation	On DIN rail according to EN 50022 (NS35/15; NS35/7.5)
  Mounting position	Vertical or horizontal
  Enclosure material	PA 6.6
  Fire protecting class (UL-94)	V0
  Auxiliary power
  Rated voltage UN	24 V DC
  Voltage range	18 ... 31.2 V
  Residual ripple within voltage range	≤ 3.6 VSS
  Rated current (UN, 20 mA)	80 mA
  Power consumption (UN, 20 mA)	1.3 W
  Power loss (at UN, RL = 500 Ω)	1.1 W
  Operation indicator	Green "PWR" LED
  Reverse polarity protection	Yes
  Undervoltage monitoring	Yes (no faulty module/output states)
  Electrical isolation
  Test voltage according to EN 60079-11
  Ex i output to input	1.5 kV AC
  Ex i output to auxiliary power	1.5 kV AC
  Error contact to Ex i output	1.5 kV AC
  Test voltage according to EN 50178
  Input to auxiliary power	350 V AC
  Error contact to auxiliary power and input	350 V AC
  Error detection Ex i output
  Open circuit	> 10 kΩ
  Short-circuit	< 15 Ω
  Input characteristics	> 100 kΩ
  Open-circuit detection only for input current	≥ 3.6 mA
  Settings (LF switch)	Activated/deactivated
  Error indication	LED red "LF"
  Error messaging and power supply failure	Contact (30 V/100 mA), closed to ground in case of error pac-Bus, floating contact (30 V/100 mA)
  Certificates and approvals
  Explosion protection ATEX
  EC type-examination certificate	DMT 03 ATEX E 012 X
  Degree of protection	II 3 (1) G Ex nA nC [ia] IIC T4 II (1) D [Ex iaD]
  Installation	In Zone 2, Div. 2 and in the safe area
  Other approvals	USA (FM) Canada (CSA) Shipping (DNV)
  Safety specifications (CENELEC)
  Max. voltage Uo	25.6 V
  Max. current Io	96 mA
  Max. power Po	605 mW
  Max. connectable capacitance Co for IIC/IIB	103 nF/800 nF
  Max. connectable inductance Lo for IIC/IIB	1.9 mH/11 mH
  Internal capacitance Ci and inductance Li	Negligible
  Insulation voltage Um	253 V
  Additional information and value combinations	See Certifications
