  The SIMATIC MV325 handheld reader is a robust, high-performance industrial barcode and data matrix code reader suitable for high resolutions. It reads two-dimensional (2D) data matrix codes and one-dimensional (1D) barcodes.

  Medium to high contrast data matrix codes can be read. The cell size should be larger than 0.13 mm. Barcodes can be read if the width of a bar is larger than 0.12 mm.

  The reader possesses complex image processing functions and illumination technology in order to read codes on many different surfaces.

  The SIMATIC MV325 handheld reader is suitable for wireless communication. Thanks to Bluetooth interface technology, simple integration into your application is possible with the device.

  The handheld reader is supplied as a package including a charging station and USB cable.




  Дизайн

  The optical SIMATIC MV325 handheld reader has a replaceable battery pack and is extremely rugged. The only replaceable component is the battery that can be charged together with the reader or individually in the charging station.


  Интеграция

  The charging station of the SIMATIC MV325 can communicate with the host computer by means of USB. No special software is required for this purpose. The SIMATIC MV325 is configured by reading supplied data matrix codes.

  The SIMATIC MV325 handheld reader itself communicates via Bluetooth with the base station. No special software is required for connecting a handheld reader with a specific charging station since the SIMATIC MV325 is connected with the charging station by reading a unique identifier on the charging station.

  The code contents read are automatically transferred to the charging station as soon as a wireless connection is established. If the connection to the charging station is not established, the read results are buffered in the mobile section (if this function is activated). This operating mode is referred to as batch mode. As soon as the connection to the charging station is restored, the read results are automatically transferred.

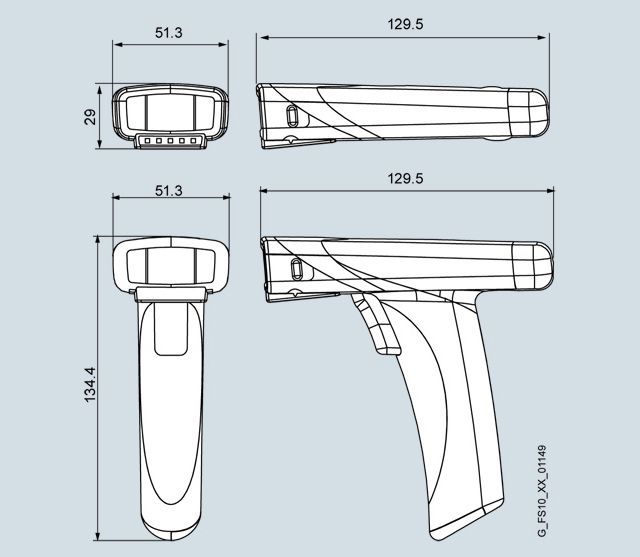

  Чертеж



  SIMATIC MV325 optical handheld reading device

  Технические данные

  Order number		6GF3325-0HT01
  Suitability for operation		1D: Codabar, Code 11, Code 32, Code 39, Code 93, Code, 128, Interleaved 2 of 5, GS1 DataBar (RSS), Maxtrix 2of5, MSI Plessey, Plessey, Straight 2of5, Trioptic, UPC/EAN/JAN, Stacked 1D: GS1 Composite (CC-A/CC-B/CC-C), MicroPDF, PDF417, 2D: Aztec Code, Data Matrix, Micro QR Code, QR Code, Han Xin
  Range		20 ... 375 mm
  Range Note		Code-dependent
  Optical data
  Design of image sensor of the camera		CMOS 1280 x 960, image resolution 960 x 640
  Mounting type of lens		Integrated
  Type of light source		Lighting system comprising incident light (red)
  Image acquisition frequency maximum		10 Hz
  Type of focusing		Fixed focus, optimum focal point at 6.3 mm
  Supply voltage, current consumption, power loss
  Type of current supply		Battery operation
  Type of battery		Lithium ion accumulator, fast charging capability
  Battery capacity		1.3 A·h
  Operating period with standard battery typical		12 h
  Permitted ambient conditions
  Ambient temperature
  ● during operation		-20 ... +55 °C
  ● during storage		-30 ... +65 °C
  Relative humidity at 25 °C without condensation during operation maximum		95 %
  Height of fall maximum		1.8 m
  Design, dimensions and weight
  Width		135 mm
  Height		51 mm
  Depth		130 mm
  Net weight		0.18 kg
  Product properties, functions, components general
  Design of the display		6 LEDs
  Operator element version		Trigger in handle
  Design of acoustic signaling element		Vibration alarm, audible signal
  Design of the interface		Bluetooth Class 2, USB
  Product functions management, configuration
  Product function of the software		Read, display, save, transfer codes
  Type of programming		Optical parameterization or via configuration software
  Accessories
  accessories		Changeable accumulator for 50000 readings (Lion 3.7 V / 1.3 Ah), external charging station (power supply via USB) incl. Bluetooth Accesspoint
