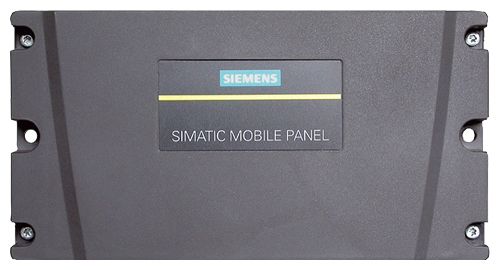

Ретранслятор

• Заказные данные
  (1)
• Информационные материалы

  Информационные материалы



  Заказные номера ретранслятора могут быть найдены в разделе "Заказные данные".

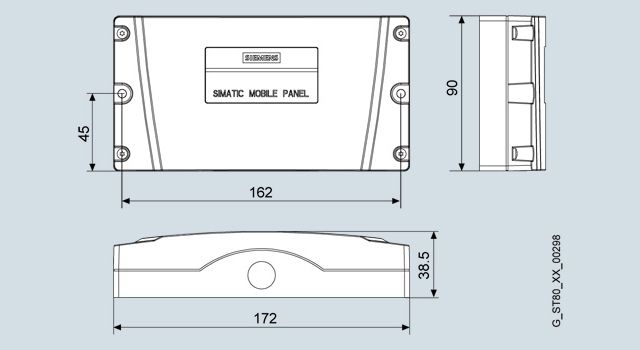

  Чертеж



  Технические данные

  Order number		6AV6671-5CM00-0AX1
  		TRANSP. F. MOBILE PANEL 277(F) IWLAN V2
  Degree and class of protection
  Enclosure according to EN 60529		IP65
  Enclosure according to NEMA		NEMA 4x, NEMA 12
  Standards, approvals, certificates
  Certifications		CE, cULus, C-TICK, NEMA 4x, NEMA 12
  CE mark		Yes
  cULus		Yes
  RCM (formerly C-TICK)		Yes
  Ambient conditions
  Ambient temperature during operation
  ● Operation (vertical installation)		0 to +50 °C
  — For vertical installation, min.		0 °C
  — For vertical installation, max.		50 °C
  Ambient temperature during storage/transportation
  ● min.		-20 °C
  ● max.		60 °C
  Relative humidity
  ● Operation, max.		85 %
  Dimensions
  Width		172 mm
  Height		90 mm
  Depth		38.5 mm
  Weights
  Weight (without packaging)		0.3 kg
  Other
  Usable in the following products
  ● Product 1		6AV6645-0DD01-0AX1
  ● Product 2		6AV6645-0DE01-0AX1
  ● Product 3		6AV6645-0EB01-0AX1
  ● Product 4		6AV6645-0EC01-0AX1
  ● Product 5		6AV6645-0FD01-0AX1
  ● Product 6		6AV6645-0FE01-0AX1
  ● Product 7		6AV6645-0GB01-0AX1
  ● Product 8		6AV6645-0GC01-0AX1
