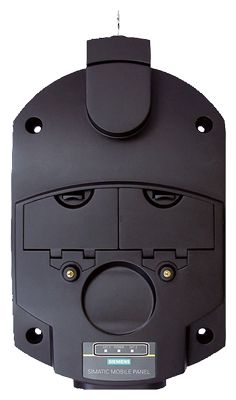

Зарядное устройство

• Заказные данные
  (1)
• Информационные материалы

  Информационные материалы



   Заказные номера базы зарядного устройства могут быть найдены в разделе "Заказные данные".

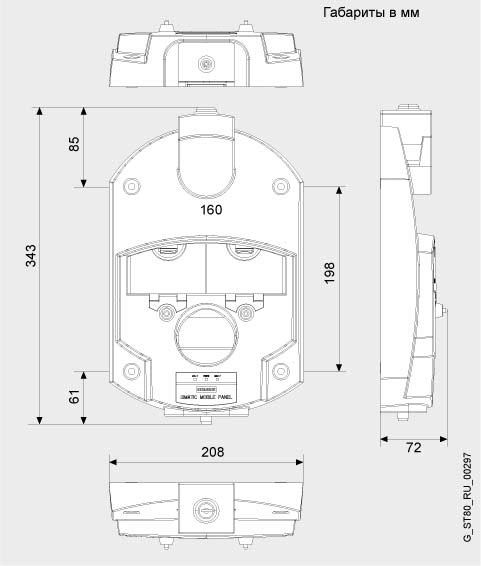

  Чертеж



  Технические данные

  Order number		6AV6671-5CE00-0AX1
  		CHARGINGST. MOBILE PANEL277(F)IWLAN V2
  Supply voltage
  Type of supply voltage		24 V DC
  Rated value (DC)		24 V
  permissible range, lower limit (DC)		19.2 V
  permissible range, upper limit (DC)		28.8 V
  Input current
  Current consumption (rated value)		3.2 A
  Power
  Active power input, typ.		77 W
  Degree and class of protection
  Enclosure according to EN 60529		IP65
  Standards, approvals, certificates
  Certifications		CE, cULus, C-TICK
  CE mark		Yes
  cULus		Yes
  RCM (formerly C-TICK)		Yes
  Ambient conditions
  Ambient temperature during operation
  ● Operation (vertical installation)		0 to +40 °C
  — For vertical installation, min.		0 °C
  — For vertical installation, max.		40 °C
  Ambient temperature during storage/transportation
  ● min.		-20 °C
  ● max.		60 °C
  Relative humidity
  ● Operation, max.		85 %
  Dimensions
  Width		208 mm
  Height		333 mm
  Depth		75 mm
  Weights
  Weight (without packaging)		1.1 kg
  Other
  Usable in the following products
  ● Product 1		6AV6645-0EB01-0AX1
  ● Product 2		6AV6645-0EC01-0AX1
  ● Product 3		6AV6645-0EF01-0AX1
  ● Product 4		6AV6645-0GB01-0AX1
  ● Product 5		6AV6645-0GC01-0AX1
  ● Product 6		6AV6645-0GF01-0AX1
  ● Product 7		6AV6645-0DD01-0AX1
  ● Product 8		6AV6645-0DE01-0AX1
  ● Product 9		6AV6645-0FD01-0AX1
  ● Product 10		6AV6645-0FE01-0AX1
  ● Product 11		6AV6645-0DB01-0AX0
  ● Product 12		6AV6645-0DC01-0AX0
  ● Product 13		6AV6645-0DD01-0AX0
  ● Product 14		6AV6645-0DE01-0AX0
