  Terminal strip converter

  The terminal strip converter allows to connect process signals directly inside the control cabinet which requires a significantly reduced wiring effort.

  Дизайн

  Connection of the PLC process signals:

  • Screw terminals:
    • 24 digital inputs
    • 16 digital outputs

  Connection to the SINUMERIK PP 72/48D PN and PP 72/48D 2/2A PN I/O modules:

  • Ribbon cable, 50-pin
  • Insulation displacement connector

  Installation in a control cabinet:

  • Mounting rail

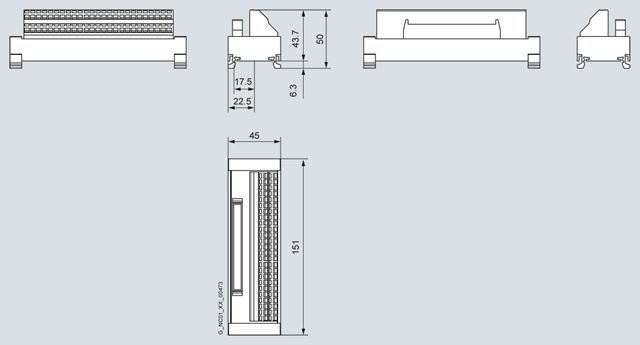

  Чертеж



  Terminal strip converter
