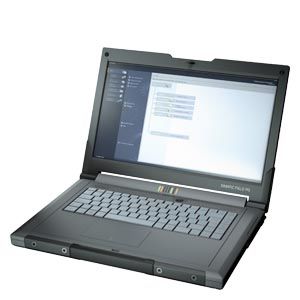

Field PG M5

• Заказные данные
  (3)
• Аксессуары
  (19)
• Информационные материалы

  Информационные материалы

  • The mobile, industry-standard programming device for automation engineers with a powerful, sixth-generation Intel® Core™ i processor (Skylake) and high-speed RAM (DDR4 RAM)
  • Elegant, robust enclosure made of light-weight stable injection-molded magnesium with rubber-protected corners and retractable carry-handle
  • Can optimally be used both for engineering in the office and for the commissioning, service or maintenance of automation systems
  • Industrial notebook with all commonly used interfaces for industrial applications
  • Can be used immediately thanks to pre-installed SIMATIC engineering software

  Область применения

  The Field PG M5 is the optimal tool for automation engineering, and an ideal platform for the SIMATIC engineering software.

  It can be used in the commissioning, service and maintenance of automation systems and, of course, also in office environments.

  Дизайн

  The Simatic Field PG M5 is based on the latest Intel Skylake processor technology. It can be equipped with up to 32 GB of high-speed DDR4 RAM and with an SSD that is up to 1 TB in size. The 2.5" hard disk can also be easily replaced from the side.

  Integrated wireless and Bluetooth technology and a non-reflective, high-resolution 15.6" display allow optimal working conditions in the machine and plan-related environment.

  In addition, the programming device has all of the standard industrial and SIMATIC interfaces. Thus, it has two Gigabit Ethernet, a PROFIBUS DP/MPI and a serial interface "on board". SIMATIC memory cards are also universally supported.

  Thanks to the retractable carry-handle, the programming device can always be safely transported anywhere. The robust, completely shielded injection-molded magnesium enclosure also provides protection against vibration and electrical radiation.

  Функции

  The programming device, which is optimized for engineering with the TIA Portal, is delivered with pre-installed SIMATIC engineering software STEP 7 and WinCC for configuring controllers and HMIs. With the SIMATIC Field PG M5, you thus receive a turnkey device for mobile use during configuration, commissioning, service or maintenance for all kinds of automation tasks.

  The integrated Intel® Active Management Technology (iAMT) permits remote access to the field PG via Standard Ethernet. Remote control of the field PGs, e.g. for restoration, upgrades, diagnostics and troubleshooting, is thus possible and very easy.

  The Microsoft BitLocker functionality is supported by the integrated Trusted Platform Module TPM 2.0 and thus offers access and operating system protection as well as secure data encryption.

  Технические данные

  Order number		6ES7717-.....-0...
  		SIMATIC FIELD PG M5
  General information
  Design of the programming device		Notebook
  Display
  Design of display		15.6" full HD display in 16:9 format
  Resolution (pixels)
  ● Horizontal image resolution		1 920 Pixel
  ● Vertical image resolution		1 080 Pixel
  General features
  ● Non-reflecting		Yes
  ● Luminance		300 cd/m²
  Backlighting
  ● Type of backlighting		LED
  Control elements
  Keyboard fonts
  ● Design		QWERTZ/QWERTY or AZERTY (French); 87 keys
  Touch operation
  ● Integrated touch pad		Yes; Clickpad
  Supply voltage
  Design of the power supply		External wide-range power supply; 3-pole
  permissible range, lower limit (AC)		100 V; +/- 10%, sinusoidal
  permissible range, upper limit (AC)		240 V; +/- 10%, sinusoidal
  Line frequency
  ● permissible range, lower limit		47 Hz
  ● permissible range, upper limit		63 Hz
  Processor
  Processor type		Intel Core i5-6440EQ (2.7 GHz to 3.4 GHz, 4 cores, 6 MB Smart Cache) or i7-6820EQ (2.8 GHz to 3.5 GHz, 4 cores, 8 MB Smart Cache)
  Chipset		Mobile Intel QM170
  Hyper-threading		Yes; for Intel Core i7 processor
  Turbo Boost Technology 2.0		Yes
  Graphic
  Graphics controller		Intel® HD graphics 530
  Drives
  DVD-RW		Yes
  Hard disk		Yes; Easy to replace
  ● Memory capacity		1 Tbyte; HDD
  SSD		Yes; Easy to replace
  ● Memory capacity		512 Gbyte; up to 1 TB SSD
  TPM Security Chip		Yes; 2.0 (version for China without TPM)
  Memory
  Type of memory		DDR4-SDRAM SO-DIMM
  Work memory
  ● Number of slots		2; Can be equipped with 1x 8 GB, 1x 16 GB or 2x 16 GB
  Accumulator
  Replaceable		Yes; Lithium-ion battery
  Capacity		8.8 A·h
  Hardware configuration
  Slots
  ● Number of ExpressCard slots		1; Type 34
  Interfaces
  PROFIBUS/MPI		1x PROFIBUS DP / MPI; 9-pin Sub-D socket; 9.6 kBaud to 12 MBaud
  Number of USB interfaces		4; USB 3.0
  ● Type A		3; 1x USB port incl. integrated charging function for USB devices (e.g. smartphone) – also with device switched off
  ● Type C		1
  Number of RS 232 interfaces		1; 25-pin socket
  Number of chip-card readers		1; Smart Card Reader (ISO/IEC 7816)
  Bluetooth radio standard		Yes; V4.0
  Multimedia card/SD card slot		2 in 1 (SDHC UHS-II, MMC)
  Card reader for SIMATIC memory cards		SIMATIC memory cards (for S7-300/400), SMC (for S7-1x00), SIMATIC micro memory card (for S7-300/C7/ET 200) - including programming interfaces
  Universal Audio Jack		Yes; Audio socket for 3.5 mm jack
  Video interfaces
  ● analog video signal (VGA)		Yes; via adapter from DVI to VGA
  ● DVI-I		Yes; 1x
  ● DisplayPort		Yes; 1x
  Industrial Ethernet
  ● Industrial Ethernet interface		2 x Ethernet (RJ45)
  — 100 Mbps		Yes
  — 1000 Mbps		Yes; Gigabit Ethernet; 2x RJ45 with 2 independent MAC/IP addresses
  ● Wake on LAN		Yes; Via Port 1
  ● IAMT (Intel Active Management Technology)		Yes
  WLAN
  ● Type		802.11ac
  Integrated Functions
  Monitoring functions
  ● Status LEDs		Battery status, device status, access to HDD/DVD, access to SD/MMC, MPI/DP, S5 and S7 modules / Card Reader (except Smart Card Reader), Num Lock, Caps Lock, WLAN active
  EMC
  Interference immunity against discharge of static electricity
  ● Interference immunity against discharge of static electricity acc. to IEC 61000-4-2		Yes; ±4 kV contact discharge (to IEC 801-2/IEC 1000-4-2; ESD), ±8 kV air discharge (to IEC 801-2/IEC 1000-4-2; ESD)
  Interference immunity to cable-borne interference
  ● Interference immunity on supply cables		±2 kV (according to IEC 61000-4-4, burst); ±1 kV (according to IEC 61000-4-5, surge pulse/line to line); ±2 kV (according to IEC 61000-4-5, surge pulse/line to ground)
  ● Interference immunity on signal cables		±1 kV (according to IEC 61000-4-4, burst, length < 30 m); ±2 kV (according to IEC 61000-4-4, burst, length > 30 m); ±2 kV (according to IEC 61000-4-5, surge sym./line to ground, length > 30 m)
  Standards, approvals, certificates
  CE mark		Yes
  CSA approval		Yes
  UL approval		Yes
  DIN/ISO 9001		Yes
  Ambient conditions
  Ambient temperature during operation
  ● min.		5 °C; Max. 10 °C/h (no condensation)
  ● max.		40 °C; Max. 10 °C/h (no condensation)
  Ambient temperature during storage/transportation
  ● min.		-20 °C; Max. 20 °C/h (no condensation)
  ● max.		60 °C; Max. 20 °C/h (no condensation)
  Relative humidity
  ● Operation, min.		5 %; At 30 °C/h (no condensation); Tested according to IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-14
  ● Operation, max.		85 %; At 30 °C/h (no condensation); Tested according to IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-14
  Vibrations
  ● Operation, tested according to IEC 60068-2-6		Yes
  Shock testing
  ● tested according to IEC 60068-2-27		Yes
  Operating systems
  Additional info on operating system		Multi-Language User Interface (MUI): 6 languages (English, German, French, Spanish, Italian, Chinese)
  pre-installed operating system
  ● Windows 7		Yes; Ultimate 64 bit, SP1
  Software
  Preinstalled
  ● STEP 7 Professional 2010		Yes; Software version: SR4
  ● STEP 7 Professional (TIA Portal)		Yes; Software version: V13 SP1
  ● WinCC flexible Advanced 2008		Yes; Software version: SP3
  ● WinCC Advanced (TIA Portal)		Yes; Software version: V13 SP1
  Mechanics/material
  Material of housing		metal
  Handle		Yes; retractable
  Socket for Kensington lock		Yes
  rubber corner guards		Yes
  Dimensions
  Width		385 mm
  Height		53 mm
  Depth		275 mm
  Weights
  Weight, approx.		3.4 kg; incl. rechargeable battery
  Scope of supply
  Accumulator		Yes
  Power supply		Yes
  Backpack		Yes
  SIMATIC Software		Yes
  Recovery media		Yes; Restore & Recovery
  Other
  free hotline		Yes
  Warranty period		24 mo; except for: rechargeable battery (6 months)
  Note:		Made in Germany: development and production in Germany
