MDS D522

Заказные данные
(2)

Информационные материалы

The MDS D522 is a passive (maintenance-free) transponder based on ISO 15693, with FRAM technology.

The transponder can only be operated with the RFID system SIMATIC RF200.

Operation with a mobile reader is currently only possible with RF210M.

Область применения

Identification of metallic workpiece holders, workpieces or containers.

Чертеж

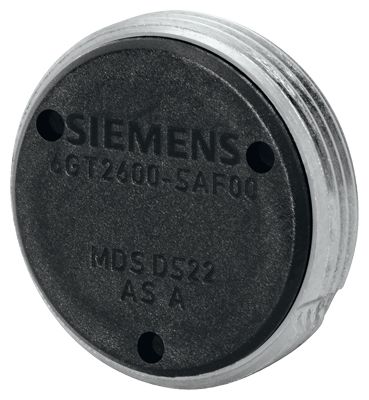

Transponder MDS D522 for attachment with glue or screws (6GT2600-5AF00)

Transponder MDS D522 for clipping into pre-cut contour according to operating instructions (6GT2600-5AF00-0AX0)

Технические данные

Order number	6GT2600-5AF00	6GT2600-5AF00-0AX0
Suitability for operation	RF200	RF200
Wireless frequencies
Operating frequency Rated value	13.56 MHz	13.56 MHz
Electrical data
Range maximum	35 mm; range is reader dependent: observe http://support.automation.siemens.com/WW/view/en/67384964	35 mm; range is reader dependent: observe http://support.automation.siemens.com/WW/view/en/67384964
Protocol with radio transmission	ISO 15693	ISO 15693
Transfer rate with radio transmission maximum	26.5 kbit/s	26.5 kbit/s
Product feature multitag-capable	Yes	Yes
Product component Backup battery	No	No
Memory
Type of memory	FRAM	FRAM
Storage capacity of the user memory	8 192 byte	8 192 byte
Type of memory organization	UID (fixed code) 8 bytes, user memory 8192 bytes, configuration memory 40 bytes	UID (fixed code) 8 bytes, user memory 8192 bytes, configuration memory 48 bytes
Number of read cycles at ambient temperature < 40 °C maximum	1 000 000 000 000	1 000 000 000 000
Number of write cycles at ambient temperature < 40 °C maximum	1 000 000 000 000	1 000 000 000 000
Data retention time at ambient temperature < 40 °C not less than	10 y	10 y
Property of memory	Block-by-block write protection of the user memory	Block-by-block write protection of the user memory
Type of transponder chip used	Fujitsu MB89R112	Fujitsu MB89R112
Mechanical data
Material	PA6.6 GF / brass, nickel-plated	PA6.6 GF
Color	black / silver	black
Tightening torque of the screw for securing the equipment maximum	1 N·m
Mounting distance relating to metal surfaces recommended minimum	0 mm	0 mm
Permitted ambient conditions
Ambient temperature
● during read/write access	-25 ... +85 °C	-25 ... +85 °C
● outside the read/write area	-40 ... +100 °C	-40 ... +100 °C
● during storage	-40 ... +100 °C	-40 ... +100 °C
Protection class IP	IP68	IP68
Shock resistance	According to DIN EN 60721-3-7 Class 7 M3	According to DIN EN 60721-3-7 Class 7 M3
Shock acceleration	500 m/s²	500 m/s²
Vibrational acceleration	200 m/s²	200 m/s²
Design, dimensions and weight
Height	6 mm	5.2 mm
Diameter	20 mm	18 mm
Net weight	13 g	1.2 g
Mounting type	gluing, screwing
Product properties, functions, components general
Product feature
● silicon-free	Yes	Yes
● printable	No	No
Standards, specifications, approvals
MTBF	228 y	200 y
