ANT 8 for RF250R and RF350M

• Заказные данные
  (2)
• Аксессуары
  (2)
• Информационные материалы

  Информационные материалы

  The ANT 8 antenna is a cylindrical antenna and is intended predominantly for the area of tool identification. The extremely small design of the antenna allows extremely accurate positioning. Dimensions Ø x L (mm): M8 x 38

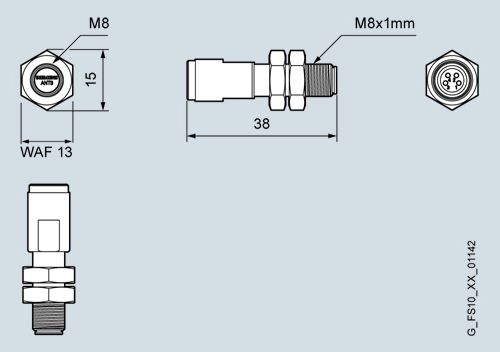

  Чертеж



  ANT 8 antenna

  Технические данные

  Order number		6GT2398-1CF00	6GT2398-1CF10
  Product type designation		Antenna ANT 8	Antenna ANT 8 incl. antenna cable
  Suitability for operation		RF250R / RF310M	RF250R
  Wireless frequencies
  Transmission frequency Rated value		13.56 MHz	13.56 MHz
  Electrical data
  Type of electrical connection of the antenna		M8, 4-pin	M8, 4-pin
  Design of plug-in connection		female	male
  Mechanical data
  Material		Stainless steel V2A	Stainless steel V2A
  Color		Silver	Silver
  Tightening torque of the screw for securing the equipment maximum		3 N·m	3 N·m
  Mounting distance
  ● relating to metal surfaces recommended minimum		0 m	0 m
  Permitted ambient conditions
  Ambient temperature
  ● during operation		-25 ... +70 °C	-25 ... +70 °C
  ● during storage		-40 ... +85 °C	-40 ... +85 °C
  ● during transport		-40 ... +85 °C	-40 ... +85 °C
  Protection class IP		IP67, front	IP67, front
  Shock resistance		according to EN 60721-3-7 Class 7M2	according to EN 60721-3-7 Class 7M2
  Shock acceleration		500 m/s²	500 m/s²
  Vibrational acceleration		200 m/s²	200 m/s²
  Design, dimensions and weight
  Depth		40 mm	40 mm
  Diameter		8 mm	8 mm
  Net weight		10 g	140 g
  Mounting type		2 stainless steel csrew nuts M8 x 1.0 (included)	2 stainless steel csrew nuts M8 x 1.0 (included)
  Cable length of antenna cable			3 m
  Standards, specifications, approvals
  Certificate of suitability		CE, FCC, IC, cULus	CE, FCC, IC, cULus
  Accessories
  accessories		Antenna cable	Included: 6GT23910-AH30 (antenna cable)
