Line reactors for PM340 Power Modules frame sizes FSA to FSE

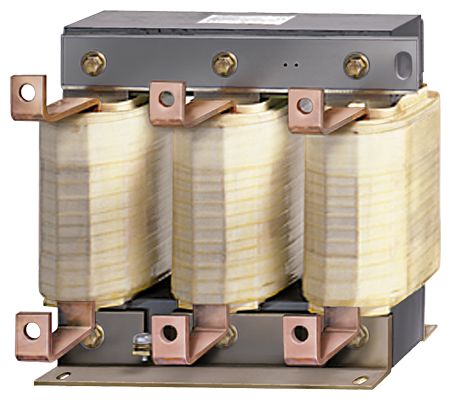

Line reactor for PM340 Power Modules frame size FSF

Line reactors limit the low-frequency harmonic effects and reduce the load on the other loads in the same supply system. Line reactors also reduce current peaks at the converter input, e.g. in the event of commutating dips.
For this reason, line reactors should always be used in combination with unfiltered PM340 devices and line voltages with a high harmonic content (industrial networks).

For further information see chapter System description – Dimensioning.

Интеграция

The line reactors for PM340 Power Modules of frame sizes FSA to FSE are designed as base components.
The line reactor is attached to the mounting surface and the Power Module is mounted directly on the line reactor. The cables to the Power Module are already connected at the line reactor.

The line reactor is connected to the line connection through terminals.

PM340 Power Module frame size FSB with base line reactor and shield connection kit

Технические данные

Line voltage 200 ... 240 V 1 AC		Line reactor
		6SE6400-3CC00-4AB3	6SE6400-3CC01-0AB3
Rated current	A	3.4	8.1
Power loss, approx. at 50/60 Hz	W	12.5/15	11.5/14.5
Line connection U1, V1, W1		Screw-type terminals	Screw-type terminals
Conductor cross-section	mm²	6	6
Load connection		Cable	Cable
Conductor cross-section		3 × AWG16 (1.5 mm²)	3 × AWG16 (1.5 mm²)
Length, approx.	m (ft)	0.38 (1.25)	0.38 (1.25)
PE connection		M5 screw stud	M5 screw stud
Degree of protection ¹⁾		IP20	IP20
Dimensions
Width	mm (in)	75.5 (2.97)	75.5 (2.97)
Height	mm (in)	201 (7.91)	201 (7.91)
Depth	mm (in)	50 (1.97)	50 (1.97)
Weight, approx.	kg (lb)	1.3 (2.87)	1.3 (2.87)
Approvals, according to		cURus	cURus
Suitable for Power Module in blocksize format	Type (rated output current)	6SL3210-1SB11-0... (0.9 A) 6SL3210-1SB12-3... (2.3 A)	6SL3210-1SB14-0... (3.9 A)

1) With correctly connected load connection cable.

Line voltage 380 ... 480 V 3 AC		Line reactor
		6SE6400-3CC00-2AD3	6SE6400-3CC00-4AD3	6SE6400-3CC00-6AD3	6SL3203-0CD21-0AA0	6SL3203-0CD21-4AA0	6SL3203-0CD22-2AA0
Rated current	A	1.9	3.5	4.8	9	11.6	25
Power loss at 50/60 Hz	W	6/7	12.5/15	7.5/9	9/11	27/32	98/118
Line connection U1, V1, W1		Screw-type terminals	Screw-type terminals	Screw-type terminals	Screw-type terminals	Screw-type terminals	Screw-type terminals
Conductor cross-section	mm²	6	6	6	6	6	6
Load connection		Cable	Cable	Cable	Cable	Cable	Cable
Conductor cross-section		3 × AWG16 (1.5 mm²)	3 × AWG16 (1.5 mm²)	3 × AWG16 (1.5 mm²)	3 × AWG16 (1.5 mm²)	3 × AWG16 (1.5 mm²)	4 × AWG10 (2.5 mm²)
Length, approx.	m (ft)	0.38 (1.25)	0.38 (1.25)	0.38 (1.25)	0.46 (1.51)	0.46 (1.51)	0.49 (1.61)
PE connection		M5 screw stud	M5 screw stud	M5 screw stud	M5 screw stud	M5 screw stud	M5 screw stud
Degree of protection ¹⁾		IP20	IP20	IP20	IP20	IP20	IP20
Dimensions
Width	mm (in)	75.5 (2.97)	75.5 (2.97)	75.5 (2.97)	153 (6.02)	153 (6.02)	190 (7.48)
Height	mm (in)	201 (7.91)	201 (7.91)	201 (7.91)	270 (10.63)	270 (10.63)	336 (13.23)
Depth	mm (in)	50 (1.97)	50 (1.97)	50 (1.97)	70 (2.76)	70 (2.76)	50 (1.97)
Weight, approx.	kg (lb)	1.2 (2.65)	1.3 (2.87)	1.3 (2.87)	3.4 (7.50)	3.4 (7.50)	6.3 (13.9)
Approvals, according to		cURus	cURus	cURus	cURus	cURus	cURus
Suitable for Power Module in blocksize format	Type (rated output current)	6SL3210-1SE11-3... (1.3 A) 6SL3210-1SE11-7... (1.7 A)	6SL3210-1SE12-2... (2.2 A) 6SL3210-1SE13-1... (3.1 A)	6SL3210-1SE14-1... (4.1 A)	6SL3210-1SE16-0... (5.9 A) 6SL3210-1SE17-7... (7.7 A)	6SL3210-1SE21-0... (10 A)	6SL3210-1SE21-8... (18 A) 6SL3210-1SE22-5... (25 A)

¹⁾ With correctly connected load connection cable.

Line voltage 380 ... 480 V 3 AC		Line reactor
		6SL3203-0CD23-5AA0	6SL3203-0CJ24-5AA0	6SL3203-0CD25-3AA0	6SL3203-0CJ28-6AA0	6SE6400-3CC11-2FD0	6SE6400-3CC11-7FD0
Rated current	A	33	47	63	95	151	186
Power loss at 50/60 Hz	W	37/44	90/115	90/115	170/215	280/360	280/360
Line connection U1, V1, W1		Screw-type terminals	Screw-type terminals	Screw-type terminals	Screw-type terminals	Flat connector for M10 screw	Flat connector for M10 screw
Conductor cross-section	mm²	16	16	16	50	–	–
Load connection		Cable	Cable	Cable	Cable	Flat connector for M10 screw	Flat connector for M10 screw
Conductor cross-section		4 × AWG10 (2.5 mm²)	4 × 16 mm²	4 × 16 mm²	4 × 35 mm²	–	–
Length, approx.	m (ft)	0.49 (1.61)	0.7 (2.30)	0.7 (2.30)	0.7 (2.30)	–	–
PE connection		M5 screw stud	M8 screw	M8 screw	M8 screw	M8 screw stud	M8 screw stud
Degree of protection ¹⁾		IP20	IP20	IP20	IP20	IP00	IP00
Dimensions
Width	mm (in)	190 (7.48)	275 (10.83)	275 (10.83)	275 (10.83)	240 (9.45)	240 (9.45)
Height	mm (in)	336 (13.23)	455 (17.91)	455 (17.91)	577 (22.72)	228 (8.98)	228 (8.98)
Depth	mm (in)	50 (1.97)	83.5 (3.29)	83.5 (3.29)	93.5 (3.68)	141 (5.55)	141 (5.55)
Weight, approx.	kg (lb)	6.4 (14.1)	13 (28.7)	13 (28.7)	19 (41.9)	25 (33.5)	25 (33.5)
Approvals, according to		cURus	cURus	cURus	cURus	cURus	cURus
Suitable for Power Module in blocksize format	Type (rated output current)	6SL3210-1SE23-2... (32 A)	6SL3210-1SE23-8... (38 A) 6SL3210-1SE24-5... (45 A)	6SL3210-1SE26-0... (60 A)	6SL3210-1SE27-5... (75 A) 6SL3210-1SE31-0... (90 A)	6SL3210-1SE31-1... (110 A) 6SL3210-1SE31-5... (145 A)	6SL3210-1SE31-8... (178 A)

¹⁾ With correctly connected load connection cable.
