The SIMATIC RF290R reader is a compact long-range reader for the upper performance range and ranges of up to 60 cm. Intended for operation with external antennas ANT D1, ANT D5, ANT D6 and ANT D10. The application range for RF290R lies in the area of production control and intralogistics through to gate applications in which longer ranges for HF-RFID are required.

The reader is equipped with a combined RS422/RS232 interface, which is switched over when the corresponding connecting cable is used.

In RS422 mode, the reader can be connected to SIMATIC S7, PROFIBUS, PROFINET or Ethernet TCP/IP via the communication modules (see Communication modules). Please note that due to the current consumption of the reader on the ASM 456 and RF160C, only one RF290R can be connected.

In the RS232 mode, the reader is suitable for integration into PC-based control systems. Trigger and alarm signals can be connected via digital inputs/outputs. Furthermore, bulk detection of several hundred transponders is possible.

The antenna switch or the multiplexer enables several individual antennas or portal solutions to be implemented with only one RF290R. The RF260X antenna multiplexer supports the connection of up to 6 antennas to one reader and operates in quasi-parallel mode.

Connectable antennas

One of each of the following antennas can be operated on a SIMATIC RF290R:

ANT D1,
Dimensions L x W x H (mm): 75 x 75 x 20.
ANT D5,
Dimensions L x W x H (mm): 380 x 380 x 110.
ANT D6,
Dimensions L x W x H (mm): 580 x 480 x 110.
ANT D10,
Dimensions L x W x H (mm): 1150 x 365 x 115.

ANT D1

The ANT D1 is a universal antenna for the production and logistics areas that can also be used in dynamic applications. The high degree of protection (IP67) means the antenna can also be used under harsh industrial conditions.

ANT D5

Universal antenna for warehouse, logistics and distribution applications. The high degree of protection (IP65) enables the antenna to be used under harsh industrial conditions.

ANT D6

Antenna in the upper performance range, designed especially for warehouse, logistics and distribution applications. It can be used wherever high speeds are required together with a large write/read distance.

ANT D10

The ANT D10 is suitable for use in warehouses, logistics and distribution. An antenna with this geometry is required in the clothing industry and laundries in particular.

Дизайн

Connectable antennas	ANT D1	ANT D5	ANT D6	ANT D10
Inductive interface to the transponder	13.56 MHz
Range	250 mm	480 mm	650 mm	480 mm

Field data

SIMATIC RF290R with antenna	ANT D1	ANT D5	ANT D6	ANT D10
Minimum distance (m) from antenna to antenna (D)
ANT D1	0.5
ANT D5		2
ANT D6			2
ANT D10				2

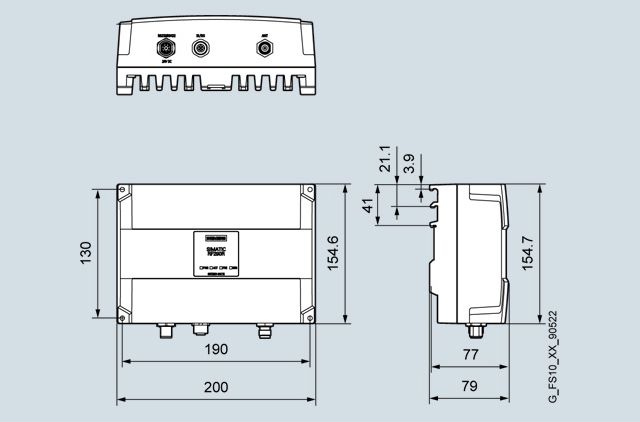

Чертеж

SIMATIC RF290R reader

Технические данные

Order number		6GT2821-0AC12
Product type designation		RF290R reader
Suitability for operation		ISO 15693 Transponder (MDS Dxxx), for connecting to communication modules and PC systems
Wireless frequencies
Operating frequency Rated value		13.56 MHz
Electrical data
Range maximum		650 mm; Range adjustable in reader via transmission power, range is dependent on transponder type: observe http://support.automation.siemens.com/WW/view/en/67384964
Protocol with radio transmission		ISO 15693, ISO 18000-3
Transfer rate with radio transmission maximum		26.5 kbit/s
Product feature multitag-capable		Yes
Transfer rate at the point-to-point connection serial maximum		115.2 kbit/s
Transmission time for user data
● for write access per byte typical		0.6 ms
● for read access per byte typical		0.6 ms
Interfaces
Number of external antennas		1
Standard for interfaces for communication		RS422/RS232
Type of electrical connection		M12, 8-pin
● for external antenna(s)		TNC
● for supply voltage		M12, 8-pin
● for communications interface		M12, 8-pin
● at the digital inputs/outputs		M12, 4-pin, female connector
Number of digital inputs		1
Number of digital outputs		1
Mechanical data
Material		aluminum
Color		silver/anthracite
Tightening torque of the screw for securing the equipment maximum		1.5 N·m
Mounting distance relating to metal surfaces recommended minimum		0 mm
Supply voltage, current consumption, power loss
Supply voltage
● at DC Rated value		24 V
● at DC		21.6 ... 26.4 V
Consumed current at DC at 24 V
● typical		0.4 A
● maximum		0.5 A
Permitted ambient conditions
Ambient temperature
● during operation		-20 ... +55 °C
● during storage		-25 ... +85 °C
● during transport		-25 ... +85 °C
Protection class IP		IP65
Shock resistance		EN 60721-3-7 Class 7 M2
Shock acceleration		300 m/s²
Vibrational acceleration		20 m/s²
Design, dimensions and weight
Width		200 mm
Height		80 mm
Depth		140 mm
Net weight		1.8 kg
Mounting type		4 x M6 screws
Cable length
● of antenna cable minimum		3.3 m
● of antenna cable maximum		25 m
● with RS 232 interface maximum		30 m
● for RS 422 interface maximum		1 000 m
Product properties, functions, components general
Display version		4 LEDs
Standards, specifications, approvals
Certificate of suitability		CE, FCC, IC (Canada)
MTBF		18 y
Accessories
accessories		Various antennas are available, antenna combiners, antenna multiplexer, mounting set for top-hat rail mounting

Дальнейшая информация

All current wireless approvals can be found on the Internet at:

http://www.siemens.com/wireless-approvals
