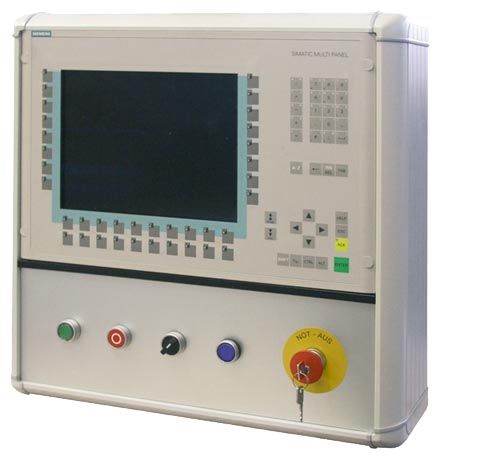

  Slim Line Commander

  The ROSE SL 2000 and SL 3000 Slim Line Commanders are tailored housing systems for built-in control components with numerous configuration possibilities.

  With various mounting depths, the basic versions of the aluminum section housing systems in various sizes provide ideal surface-mounting possibilities for CNC with:

  • SINUMERIK OP 010/OP 010S/OP 010C/OP 012/OP 015A
  • SINUMERIK machine control panels
  • SINUMERIK Machine Push Button Panel
  • SINUMERIK full CNC keyboards

  SL 2000

  • Multifunctional built-in and add-on system with all-round fixing slots
  • Individual front panel installation from front or back
  • Mounting depths: 80 mm/110 mm/185 mm (3.15 in/4.33 in/7.28 in)



  SL 3000

  • Variable depth by combining sections
  • Hollow chamber profile for hidden installation of drives and connectors
  • Mounting depths: 60 mm/160 mm/200 mm (2.36 in/6.30 in/7.87 in)
  • Mounting depths with combined profiles: 120 mm/220 mm/260 mm/360 mm (4.72 in/8.66 in/10.24 in/14.17 in)

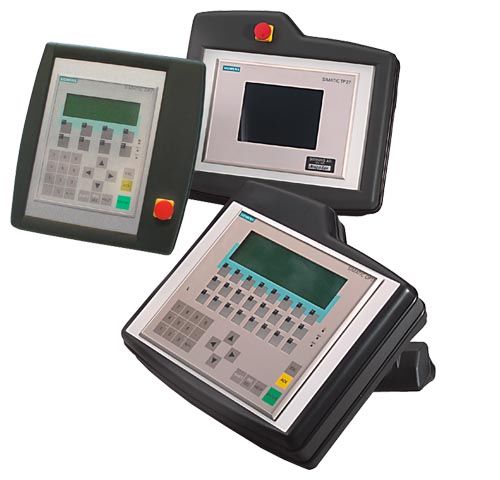

  LIMANDA



  LIMANDA is the ideal polyamide panel housing for installing small operator panels and control devices for mobile and fixed applications to the IP65 degree of protection.

  • Dimensions of Limanda 1: 317 mm × 287 mm × 75 mm (12.48 in × 11.30 in × 2.95 in)
  • Dimensions of Limanda 2: 270 mm × 248 mm × 64 mm (10.63 in × 9.76 in × 2.52 in)

  Suitable for SIMATIC Panels:

  • PP7/PP17
  • OP7/OP15/OP17
  • TP27-6/TP 170
  • C7

  Дальнейшая информация

  Are you looking for an individual solution for your application? Ask us!
  Your partner for industrial housing systems:

  ROSE Systemtechnik GmbH

  Erbeweg 13-15
  32457 PORTA WESTFALICA
  GERMANY

  Tel.: +49 571 5041-0
  Fax: +49 571 5041-6

  E-mail: rose@rose-pw.de

  Internet: http://www.rose-pw.de
