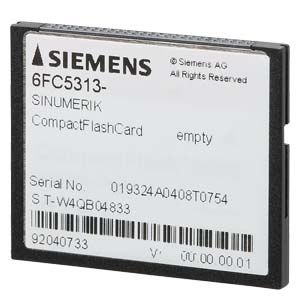

CompactFlash card

• Заказные данные
  (2)
• Информационные материалы

  Информационные материалы

  The CompactFlash card is used to store user data.

  Интеграция

  The CompactFlash card is suitable for:

  • SINUMERIK 828D BASIC:
    Additional memory for user data
  • SINUMERIK 828D:
    Additional memory for user data
  • SINUMERIK 840D sl:
    Additional memory for user data in the SINUMERIK PCU 50.5 Windows 7

  Технические данные

  Order number			6FC5313-5AG00-0AA2	6FC5313-6AG00-0AA0
  Product brand name			SINUMERIK	SINUMERIK
  Product designation			CompactFlash Card	CompactFlash Card
  Type of memory card			CompactFlash card	CompactFlash card
  Storage capacity of memory card		Gbyte	2	8
  Supply voltage at DC		V	5.5	5.5
  Degree of protection			IP20	IP20
  Environmental category acc. to IEC 60721-3-3			Condensation and icing excluded. Low air temperature 0 °C (32 °F).	Condensation and icing excluded. Low air temperature 0 °C (32 °F).
  Relative humidity at 25 °C (77 °F), during
  ● storage		%	5 ... 95	5 ... 95
  ● transport		%	5 ... 95	5 ... 95
  ● operation		%	10 ... 80	10 ... 80
  Ambient temperature, during
  ● storage		°C (°F)	-40 ... +100 (-40 ... +212)	-40 ... +100 (-40 ... +212)
  ● transport		°C (°F)	-40 ... +100 (-40 ... +212)	-40 ... +100 (-40 ... +212)
  ● operation		°C (°F)	0 ... 85 (32 ... 185)	0 ... 85 (32 ... 185)
  Width		mm (in)	43 (1.69291)	43 (1.69291)
  Height		mm (in)	3 (0.11811)	3 (0.11811)
  Depth		mm (in)	37 (1.45669)	37 (1.45669)
  Net weight		g (oz)	12 (0.42329)	12 (0.42329)
  Certificate of suitability			CE, cULus	CE, cULus
