Electronic handwheel

Заказные данные
(6)
Аксессуары
(4)

The electronic handwheels enable an axis to be traversed manually. The axis selected via the CNC can be positioned so that the axes are parallel.

The portable electronic handwheel is intended for use directly at the machine.

Дизайн

Handwheels for installation by user – with or without front panel (the front panel can be removed)
Portable handwheel in enclosure:
- Connection by means of a spiral cable
- Mounting with integrated magnetic clamp or a holder (accessory)

Функции

The electronic handwheels feature a magnetic latching facility which supports increment-precise traversing. The handwheels generate 5 V DC TTL signals. A version with 24 V DC and an HTL interface is available for connection to I/O modules.

Интеграция

The electronic handwheel can be used for:

SINUMERIK 808D
SINUMERIK 808D ADVANCED
SINUMERIK 828D BASIC
SINUMERIK 828D
SINUMERIK 840D sl

Чертеж

Electronic handwheel without front plate and without setting wheel

Electronic handwheels with 76.2 mm × 76.2 mm front panel (3 in x 3 in)

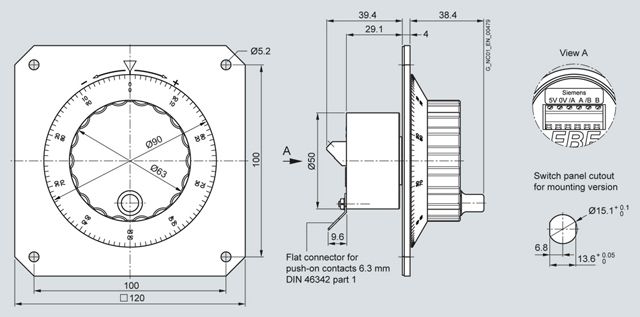

Electronic handwheel with 120 mm x 120 mm front panel (4.72 in x 4.72 in)

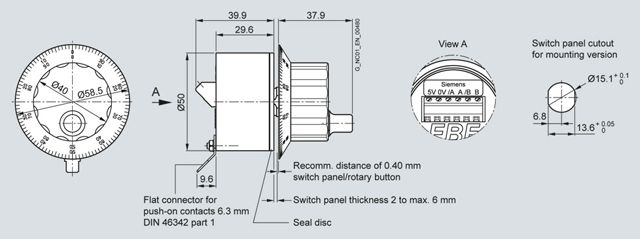

Electronic handwheel without front plate with small setting wheel

Особенности

Positioning of axes
Rugged and compact housing variant

Технические данные

Order number		6FC9320-5DB01	6FC9320-5DC01	6FC9320-5DH01	6FC9320-5DM00	6FC9320-5DF01	6FC9320-5DE02
Product brand name		SINUMERIK	SINUMERIK	SINUMERIK	SINUMERIK	SINUMERIK	SINUMERIK
Product designation		Electronic handwheel	Electronic handwheel	Electronic handwheel	Electronic handwheel	Electronic handwheel	Electronic handwheel
Product feature		With front panel 120 mm x 120 mm (4.72 in x 4.72 in)	With front panel 76.2 mm x 76.2 mm (3 in x 3 in)	With front panel 76.2 mm x 76.2 mm (3 in x 3 in)	Without front panel, with setting wheel	Without front panel, without setting wheel	Portable in housing with coiled cable
Supply voltage at DC	V	5	5	24	5	5	5
Consumed current maximum	mA	60	60	15	60	60	80
Design of the interface		RS422 (TTL)	RS422 (TTL)	HTL	RS422 (TTL)	RS422 (TTL)	RS422 (TTL)
Phase displacement angle between signal A and signal B	°	90	90	90	90	90	90
Number of pulses per revolution maximum		100	100	100	100	100	100
Minimum actuating torque in activation direction	N·m	0.08	0.04	0.04	0.04	0.04	0.04
Electrical output frequency maximum	kHz	2	2	2	2	2	2
Transmission link to the NCU/PCU maximum	m (ft)	25 (82.021)	25 (82.021)	25 (82.021)	25 (82.021)	25 (82.021)	20 (65.6168)
Degree of protection		-	-	-	-	-	IP65
Degree of protection
● front		IP65	IP65	IP65	IP65	IP65	-
● rear		IP50	IP50	IP50	IP50	IP50	-
Environmental category acc. to IEC 60721-3-3		Condensation and icing excluded. Low air temperature 0 °C (32 °F).	Condensation and icing excluded. Low air temperature 0 °C (32 °F).	Condensation and icing excluded. Low air temperature 0 °C (32 °F).	Condensation and icing excluded. Low air temperature 0 °C (32 °F).	Condensation and icing excluded. Low air temperature 0 °C (32 °F).	Condensation and icing excluded. Low air temperature 0 °C (32 °F).
Relative humidity at 25 °C (77 °F), during
● storage	%	5 ... 95	5 ... 95	5 ... 95	5 ... 95	5 ... 95	5 ... 95
● transport	%	5 ... 95	5 ... 95	5 ... 95	5 ... 95	5 ... 95	5 ... 95
● operation	%	5 ... 95	5 ... 95	5 ... 95	5 ... 95	5 ... 95	5 ... 95
Ambient temperature, during
● storage	°C (°F)	-25 ... +55 (-13 ... +131)	-25 ... +55 (-13 ... +131)	-25 ... +55 (-13 ... +131)	-25 ... +55 (-13 ... +131)	-25 ... +55 (-13 ... +131)	-25 ... +55 (-13 ... +131)
● transport	°C (°F)	-40 ... +70 (-40 ... +158)	-40 ... +70 (-40 ... +158)	-40 ... +70 (-40 ... +158)	-40 ... +70 (-40 ... +158)	-40 ... +70 (-40 ... +158)	-40 ... +70 (-40 ... +158)
● operation	°C (°F)	0 ... 55 (32 ... 131)	0 ... 55 (32 ... 131)	0 ... 55 (32 ... 131)	0 ... 55 (32 ... 131)	0 ... 55 (32 ... 131)	0 ... 55 (32 ... 131)
Outer diameter of the enclosure	mm (in)	- ()	- ()	- ()	58.5 (2.30315)	50 (1.9685)	- ()
Width	mm (in)	120 (4.72441)	76.2 (3)	76.2 (3)	- ()	- ()	85 (3.34646)
Height	mm (in)	120 (4.72441)	76.2 (3)	76.2 (3)	- ()	- ()	160 (6.29921)
Depth	mm (in)	81.8 (3.22047)	81.8 (3.22047)	81.8 (3.22047)	83.8 (3.29921)	64.3 (2.5315)	67 (2.6378)
Net weight	kg (lb)	0.7 (1.54324)	0.4 (0.88185)	0.4 (0.88185)	0.3 (0.66139)	0.2 (0.44092)	0.3 (0.66139)
● Note		-	-	-	-	-	Without connecting cable
Certificate of suitability		CE, cULus	CE, cULus	CE, cULus	CE, cULus	CE, cULus	CE, cULus
