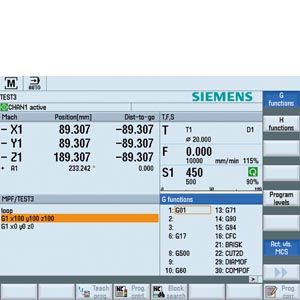

  CNC user interface

  The modern SINUMERIK Operate operating software is a technology-neutral, multi-channel operating software for:

  • Machine operation
  • Programming
  • Diagnostics
  • Startup

  It permits user-friendly, practice-oriented operation of the machine, from production to the workshop.

  Programming of the part programs is optimally supported by a modern text editor with integrated ProgramGUIDE with Animated Elements. The integrated powerful contour calculator enables programming and graphic display of complex workpiece contours. Processes such as drilling, centering, plunging or pocket milling are represented as machining steps in a simple and clear manner. Part programs can be rapidly checked using the 2D/3D simulation for turning and milling.

  The user interface can be modified or redesigned easily.

  Функции

  • Modern text editor with many helpful functions
  • ProgramGUIDE with Animated Elements – perfect support for integrating cycles in part programs
  • Shopfloor-oriented technology cycles for drilling, milling, and turning
  • Comprehensive measuring cycles (option)
  • Automatic creation of measurement records
  • Residual material detection and machining for contour pockets and stock removal (option)
  • Powerful contour computer for entering any contours, from simple to very complex ones
  • Comprehensive machining step programming with ShopMill/ShopTurn (option)
  • Support of swivel heads and swivel tables
  • Multiple clamping of identical or different workpieces (ShopMill/ShopTurn is required)
  • Quickview for mold-making programs
  • Quick checking of part programs
    • Integrated 2D simulation for turning and milling
    • 3D simulation (option)
  • Simultaneous recording of current machining (option)
  • Integrated tool management for one magazine, more than 4 magazine tables (option)
  • Access to external programs through network drives
  • Data storage and execution from external memories (option)
  • Implement user-defined operating philosophies and concepts with SINUMERIK Integrate Create MyHMI (option)
  • Powerful new functions support the entire workflow:
    • Set-up, programming, tool and program management for complete machining
    • Multi-channel capability with ShopTurn for multi-channel machines, including program synchronization with programSYNC, and much more
    • Display and analysis of energy consumption

  Интеграция

  The SINUMERIK Operate operating software is a component of the CNC software with:

  • SINUMERIK 840D sl:
    NCU 710.3B PN/NCU 720.3B PN/NCU 730.3B PN

  The separate SINUMERIK Operate operating software can be used for:

  • SINUMERIK PCU 50.5 Windows 7
  • PC with Windows 7 operating system

  Особенности

  • Simple and quick to master
  • Operate and program intuitively and clearly with animated elements
  • CNC programming for the highest degree of productivity using programGUIDE
  • Machining step programming for the shortest programming time with ShopMill/ShopTurn
  • Help always available from help texts for each edit box on the operator screen form, and functions for efficient production, e.g. Help key, tooltips, search shortcut CTRL+F, UNDO
  • Confident programming supported by simulation
  • Open for user-generated screens and user-defined operating philosophies and concepts
