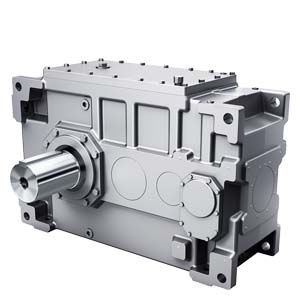

FLENDER SIG Standard Industry Gear Units

Always the Right Drive Solution: FLENDER Gear Units

As the world’s largest supplier of industrial gear units, we have the very best solutions for your drive applications. We have gained extensive expertise through our decades of experience in nearly every sector of raw-material production, industry and further processing. The portfolio of FLENDER gear units ranges from universal standard gear units through application-specific gear units to customer-specific solutions.

Our high-performance standard gear units can be used universally for many applications. Our application-specific gear units are highly specialised and standardized versions for specific industry sectors. You profit from the excellent price-performance ratio, the first-class quality and the short delivery times for our standard and application-specific gear units.

Advantages

Even higher torques for the same size
Even higher flexibility owing to additional mounting position
Even higher availability of the plant owing to improved rolling bearing lifetime
Even closer to the torque desired by the customer owing to harmonized torque grading
Great diversity owing to 5 types with solid shaft or different hollow shaft variants
Optionally available with dustproof Taconite seals
If required, internal cooling or standardized fan
Fast availability worldwide
Higher operational reliability with increased power capacity

Typical applications

Conveyor drives
Lifting gear drives for cranes
Water screw pumps
Bucket elevator drives
Paper machine drives
Ventilator drives
Pump drives
Compressor drives

Technical Data

		Helical gear units H				Bevel helical gear units B
No. of stages		1	2	3	4	2	3	4
Gear unit sizes		6	11	10	8	7	11	10
from … to …		503 … 510	504 … 514	505 … 514	507 … 514	504 … 510	504 … 514	505 … 514
Range of transmission ratios i		1.12 … 6	6.3 … 26	20 … 90	80 … 400	5 … 20	14 … 80	63 … 355
Torque range	kNm	2.95 … 41.6	7 … 125	11.6 … 125	21.5 … 125	3.1 … 41.6	7 … 125	11.6 … 125
Nominal power	kW	to 3 999	to 3 037	to 959	to 233	to 1 307	to 1 394	to 298
