  SIDOOR geared motors are a combination of gear unit, motor and sensor. They are easy to connect to the controller via the interface provided and are automatically detected during commissioning.

  The maintenance-free, variable speed drive unit comprises a DC motor with non-self-locking gearing.

  The geared motors must be selected according to the dynamic door weight. Two different versions are available for each of the SIDOOR MDG180, SIDOOR MDG400 and SIDOOR M3 to SIDOOR M5 geared motors:

  • SIDOOR MDG180 geared motors (max. door weight of 180 kg)
    • SIDOOR MDG180 L (pinion left) 6FB1103‑0AT14‑4MB0
    • SIDOOR MDG180 R (pinion right) 6FB1103‑0AT13‑4MB0
  • SIDOOR MDG400 geared motors (max. door weight of 400 kg)
    • SIDOOR MDG400 L (pinion left) 6FB1103‑0AT14‑3MC0
    • SIDOOR MDG400 R (pinion right) 6FB1103‑0AT13‑3MC0
  • SIDOOR MDG400 NMS geared motors (max. door weight 400 kg)
    Shaft with groove and feather key A5X5 acc. to DIN 6885 - without pinion
    • SIDOOR MDG400 NMS L (shaft left) 6FB1103‑0AT14‑3MC1
    • SIDOOR MDG400 NMS R (shaft right) 6FB1103‑0AT13‑3MC1
  • SIDOOR M3 geared motors (max. door weight 180 kg)
    • SIDOOR M3 L (pinion left) 6FB1103‑0AT10‑4MB0
    • SIDOOR M3 R (pinion right) 6FB1103‑0AT11‑4MB0
  • SIDOOR M4 geared motors (max. door weight 400 kg)
    • SIDOOR M4 L (pinion left) 6FB1103‑0AT10‑3MC0
    • SIDOOR M4 R (pinion right) 6FB1103‑0AT11‑3MC0
  • SIDOOR M5 geared motors (max. door weight 600 kg)
    • SIDOOR M5 L (pinion left) 6FB1103‑0AT10‑3MD0
    • SIDOOR M5 R (pinion right) 6FB1103‑0AT11‑3MD0

  The gear outlet direction is defined as left or right when viewing the gear unit from the front.

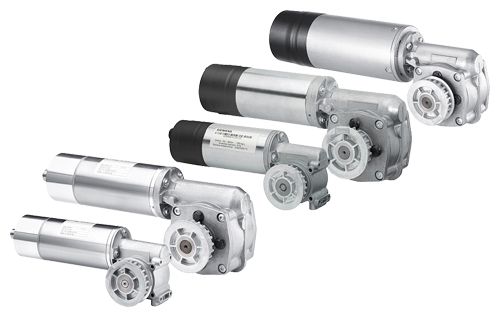

  Geared motors (versions with pinion left) shown from bottom to top: SIDOOR MDG180 L, SIDOOR MDG400 L, SIDOOR M3 L, SIDOOR M4 L, SIDOOR M5 L

  Технические данные

  Order number		6FB1103-0AT14-4MB0	6FB1103-0AT13-4MB0	6FB1103-0AT14-3MC0	6FB1103-0AT13-3MC0	6FB1103-0AT14-3MC1	6FB1103-0AT13-3MC1	6FB1103-0AT10-4MB0	6FB1103-0AT11-4MB0	6FB1103-0AT10-3MC0	6FB1103-0AT11-3MC0	6FB1103-0AT10-3MD0	6FB1103-0AT11-3MD0
  		SIDOOR MDG180 L	SIDOOR MDG180 R	SIDOOR MDG400 L	SIDOOR MDG400 R	SIDOOR MDG400 NMS L	SIDOOR MDG400 NMS R	SIDOOR M3 L	SIDOOR M3 R	SIDOOR M4 L	SIDOOR M4 R	SIDOOR M5 L	SIDOOR M5 R
  General information
  Product brand name		SIDOOR
  Product designation		Motor for door control
  Product version		MDG180 L	MDG180 R	MDG400 L	MDG400 R	MDG400 NMS L	MDG400 NMS R	M3 L	M3 R	M4 L	M4 R	M5 L	M5 R
  Supply voltage
  Supply voltage (DC)		30 V
  Input current
  Operational current (rated value)		4 A										7.5 A
  Power
  Active power input		120 W										225 W
  Mechanical data
  Torque of the rotary operating mechanism (rated value)		3 N·m										6.8 N·m
  Speed, max.		0.65 m/s		0.75 m/s				0.65 m/s		0.75 m/s		0.5 m/s
  Gear ratio		15
  Number of pulses per revolution, max.		100
  Weight of door, max.		180 kg		400 kg				180 kg		400 kg		600 kg
  Degree and class of protection
  IP degree of protection
  ● of the motor		IP56						IP54
  ● of the gear unit		IP56						IP40				IP54
  Ambient conditions
  Ambient temperature during operation
  ● min.		-20 °C
  ● max.		50 °C
  Ambient temperature during storage/transportation
  ● Storage, min.		-40 °C
  ● Storage, max.		85 °C
  Dimensions
  Height of motor		98 mm		115 mm				98 mm		115 mm		124 mm
  Length of motor		236 mm		275 mm				236 mm		275 mm		344 mm
  Diameter of motor		63 mm										80 mm
  Width of gear unit, including drive pinion		85 mm		105 mm		106 mm		85 mm		105 mm		111 mm




  Дополнительно

  The following accessories are available for the SIDOOR MDG180, SIDOOR MDG400 and SIDOOR M2 to SIDOOR M5 geared motors:

  • Rubber-metal anti-vibration mount for low-noise door operation
    • 6FB1104‑0AT02‑0AD0 for SIDOOR MDG180, SIDOOR M2 and SIDOOR M3 geared motors (door weights up to 180 kg)
    • 6FB1104‑0AT01‑0AD0 for SIDOOR MDG400 and SIDOOR M4 (door weights up to 400 kg), and SIDOOR M5 geared motors (door weights up to 600 kg)
  • Mounting bracket 6FB1104‑0AT01‑0AS0 for the geared motor mount for flexible accommodation of the rubber-bonded metal

  See "Accessories".

  Дальнейшая информация

  For further product details, see manuals

  • "SIDOOR AT12 Elevator Door Drive", https://support.industry.siemens.com/cs/ww/en/view/58497029
  • System Manual "SIDOOR AT40, ATD400V, ATD400K, ATD4xxW, ATD400S, ATE250S, ADT400T", https://support.industry.siemens.com/cs/ww/en/view/58531074
  • System Manual "SIDOOR ATD4xxW", https://support.industry.siemens.com/cs/ww/en/view/109739329/87914338699
  • "SIDOOR DC geared motors", https://support.industry.siemens.com/cs/ww/en/view/64331791
