  Electronic handwheel

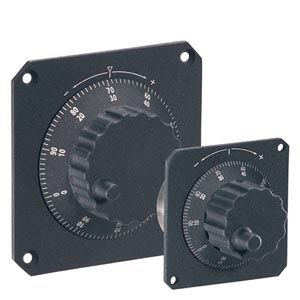

  This handwheel generates signals which correspond to the movements of the handwheel as it is turned. The axis selected via the control can be positioned. The handwheels are equipped with a magnetic latching mechanism that supports traversing with incremental accuracy. The front panel can be removed.

  Чертеж



  Electronic handwheel without front panel without setting wheel



  Electronic handwheel with front panel 76.2 mm × 76.2 mm



  Electronic handwheel with front panel 120 mm × 120 mm



  Electronic handwheel without front panel with small setting wheel

  Технические данные

  Article No.	6FC9320-5DB01	6FC9320-5DC01/ 6FC9320-5DF01/ 6FC9320-5DM00
  Product name	Electronic handwheel
  Rated voltage	5 V DC ± 5 %	5 V DC ± 5 %
  Rated current, max.	60 mA	60 mA
  Interface	RS422 (TTL)	RS422 (TTL)
  Phase angle of pulse sequence A to B	90° electrical	90° electrical
  Pulses	2 × 100 S/R	2 × 100 S/R
  Actuating force	8 Ncm	4 Ncm
  Output frequency, max.	2 kHz	2 kHz
  Distance to PPU, max.	25 m	25 m
  Degree of protection according to EN 60529 (IEC 60529)
  Front	IP65	IP65
  Rear	IP50	IP50
  Relative humidity
  Storage	10 ... 95 % at 25 °C	10 ... 95 % at 25 °C
  Transport	10 ... 95 % at 25 °C	10 ... 95 % at 25 °C
  Operation	5 ... 80 % at 25 °C	5 ... 80 % at 25 °C
  Ambient temperature
  Storage	-40 ... +85 °C	-40 ... +85 °C
  Transport	-40 ... +85 °C	-40 ... +85 °C
  Operation	0 ... 70 °C	0 ... 70 °C
  Weight, approx.	0.6 kg	0.4 kg
  Approvals, according to	cULus	cULus





  S/R = Signals/Revolution
