MCN11

• Заказные данные
  (1)
• Информационные материалы

  Информационные материалы

  The MVN11 media converter node is a robust network component for SIPLUS CMS4000.

  Advantages:

  • Bidirectional conversion between an electrical and an optical IEEE1394
  • To extend the range up to max. 500 m
  • Can also be used in conjunction with the RPN IEEE1394B repeater node

  Область применения

  The MCN11 media converter node is a rugged media converter to increase the range of the IEEE1394 bus. The MCN11 converts the electrically transferred data bidirectionally into signals for the optical transmission with which distances up to 500 m can be covered.

  Дизайн

  The MCN11 media converter node has an electrical IEEE1394a interface and an optical IEEE1394b interface.

  Two MCN11 nodes are inserted into the path in order to extend the bus distance. The optical bus cable used for the extension runs between the two nodes.

  Alternatively, the MCN11 can be directly connected optically to an RPN IEEE1394B T001/T002 multi-port repeater.

  The cable 6AT8000‑2AB20‑2AA2 and the mounting set 6AT8000‑2BB00‑0XC0 are available as optional accessories, see "Accessories" → "Cables and mounting parts".

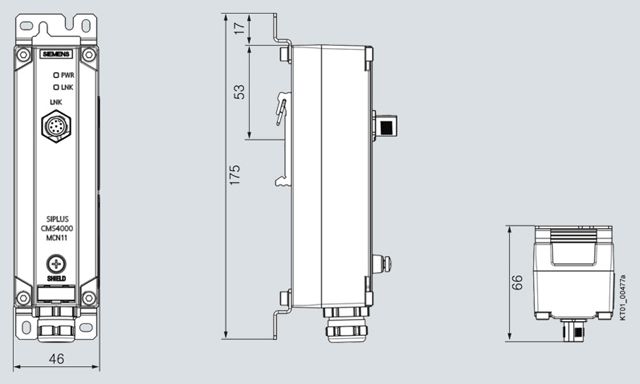

  Чертеж



  MCN11 Media Converter Node

  Технические данные

  Order number		6AT8000-1EB00-3XA0
  		SIPLUS CMS4000 Media Converter MCN11
  General information
  Product brand name		SIPLUS
  Product designation		SIPLUS CMS4000 MCN11
  Product description		MCN11 physically converts data to be transferred from one medium (electric) to another (optic) and vice versa. MCN11 can span distances from 4.5 meters to 500 meters.
  Installation type/mounting
  Mounting type		standard rail
  Mounting accessories		Mounting bracket, can be ordered as option
  Required clearance
  ● for side-by-side mounting at the top		25 mm
  ● for side-by-side mounting at the front		80 mm
  ● for side-by-side mounting at the back		25 mm
  Power
  Power consumption, max.		0.6 W
  Interfaces
  Number of IEEE 1394a interfaces		1
  ● Design of plug-in connection		Male connector 8-pole (M12)
  Number of IEEE 1394b interface, optical		1
  ● Design of plug-in connection		Duplex SC 62.5 / 125 μm multimode fiber (MMF)
  ● Wavelength		850 nm
  Protocols
  IEEE 1394a		Yes
  IEEE 1394b optical		Yes
  Degree and class of protection
  IP degree of protection		IP67
  Standards, approvals, certificates
  Certificate of suitability		CE
  Ambient conditions
  Ambient temperature during operation
  ● min.		0 °C
  ● max.		65 °C
  Ambient temperature during storage/transportation
  ● Storage, min.		-40 °C
  ● Storage, max.		85 °C
  ● Transportation, min.		-40 °C
  ● Transportation, max.		85 °C
  Cables
  Design of the data cable		Pre-assembled 8-pole cable with shield
  Design of FOC fiber		50 / 125 μm MMF up to 500 m length, 62.5 / 125 μm MMF up to 220 m length
  Connection method
  Design of electrical connection for the DIN terminal lug		M4 screw on the front panel: SHIELD
  Design of electrical connection for the PE conductor		Cable lug for M4 screw
  Mechanics/material
  Material of housing		aluminum
  Dimensions
  Width		46 mm
  Height		160 mm
  Depth		56 mm
  Width when mounted on DIN rail		46 mm
  Height when mounted on DIN rail		160 mm
  Depth when mounted on DIN rail		65 mm
  Weights
  Weight (without packaging)		0.46 kg




  Дальнейшая информация

  For further product details, refer to the "MCN11" Operating Instructions, http://support.automation.siemens.com/WW/view/en/40836171.
