  Vertical busbar, cascaded

  Characteristics

  • For mounting on main busbar, top
  • Compatible busbar sections
    30 × 10
    40 × 30




  Copper bar, profiled busbar

  30 × 10
  40 × 30



  Copper bar, flat copper

  Configuration

  • Number of required reinforcements (1) depends on rated short-time withstand current.

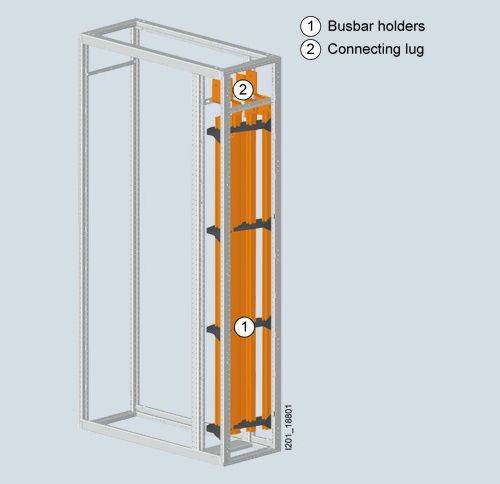

  Cascaded vertical distribution busbar system with profiled busbars, single arrangement

  Vertical busbar, non-cascaded

  Characteristics

  • For mounting on main busbar, top
  • Compatible busbar sections
    20 × 10
    30 × 10
    40 × 10
    50 × 10



  Copper bar, flat copper

  Configuration

  • Number of required reinforcements (1) depends on rated short-time withstand current.

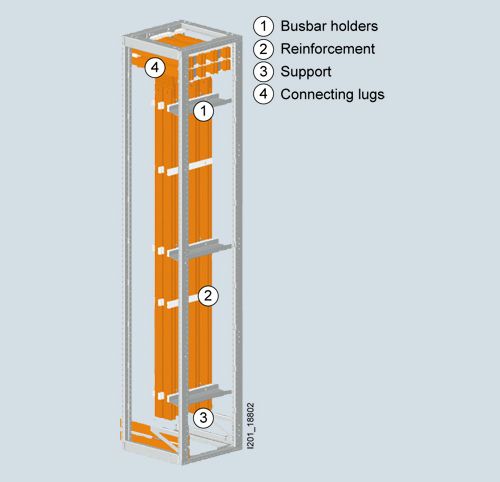

  Non-cascaded vertical distribution busbar system with rectangular profiles, single arrangement
